AN742-10 Loop Clamp
AN742-10 Loop Clamp (2)
AN742-10 Loop Clamp (3)
AN742-10 Loop Clamp (4)
AN742-10 Loop Clamp (5)
AN742-10 Loop Clamp (6)
AN742-10 Loop Clamp
AN742-10 Loop Clamp (2)
AN742-10 Loop Clamp (3)
AN742-10 Loop Clamp (4)
AN742-10 Loop Clamp (5)
AN742-10 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

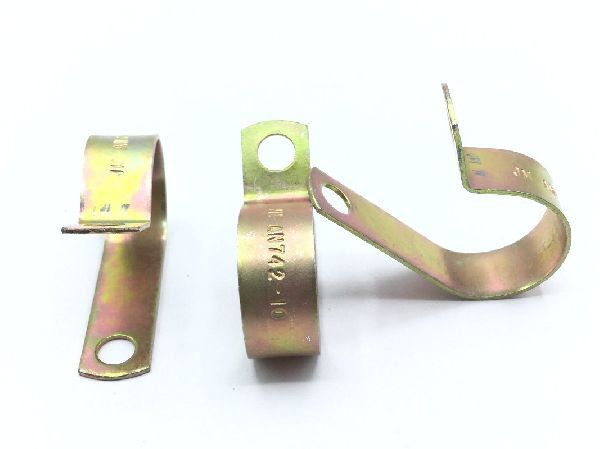

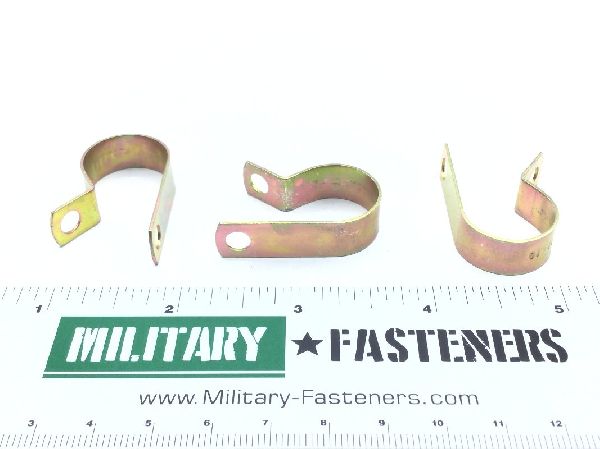

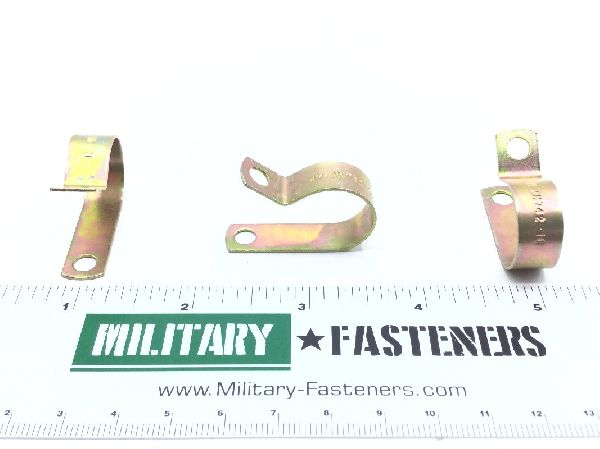

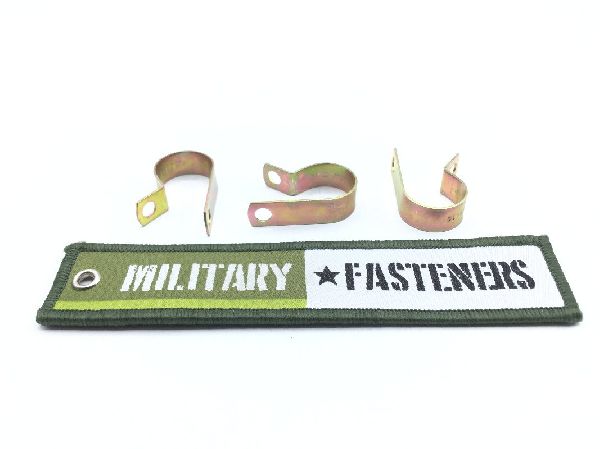

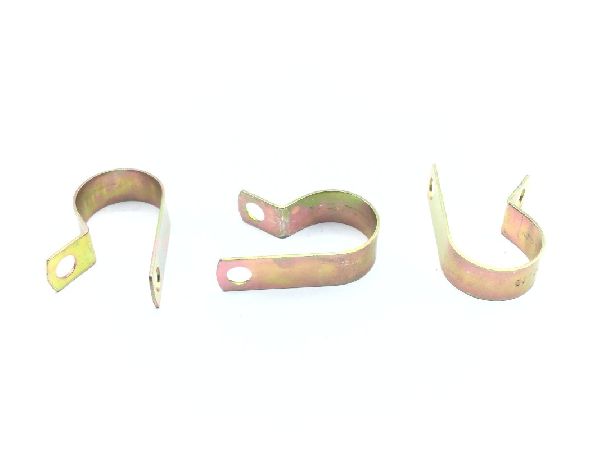

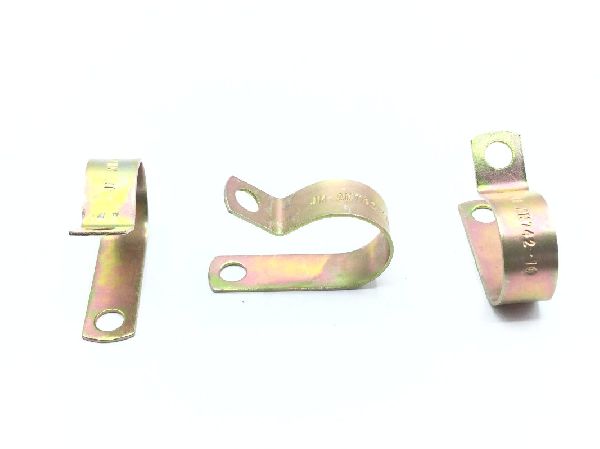

AN742-10 Loop Clamp

Product Series
AN
ECCN
EAR99
Schedule
8539.29.2500
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 1010
Surface Treatment
Class 2 federal specification single treatment response type 2 qq-p-416
Center To Center Distance Between Loop And Mounting Hole
0.654 inches
Distance From Loop Center To Tongue End
0.842 inches
Loop Inside Diameter
Between 0.615 inches and 0.635 inches
Material Specification
T4 assn standard single material response astm a109
Material Thickness
Between 0.0285 inches and 0.0355 inches
Overall Width
0.375 inches
Style Designator
Single loop
Tongue Hole Type
unthreaded round
Diameter
Between 0.199 inches and 0.209 inches
