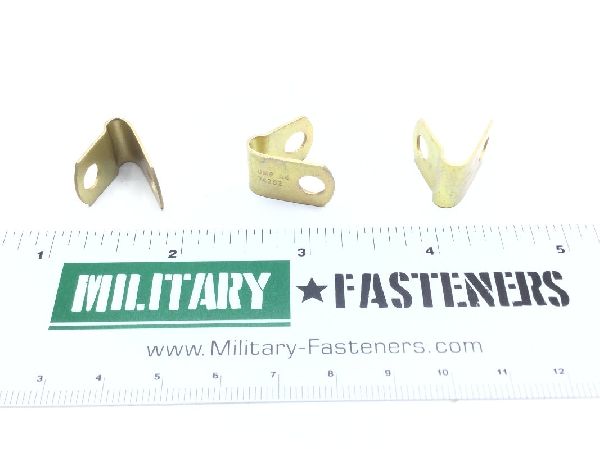

AN742D2 Loop Clamp

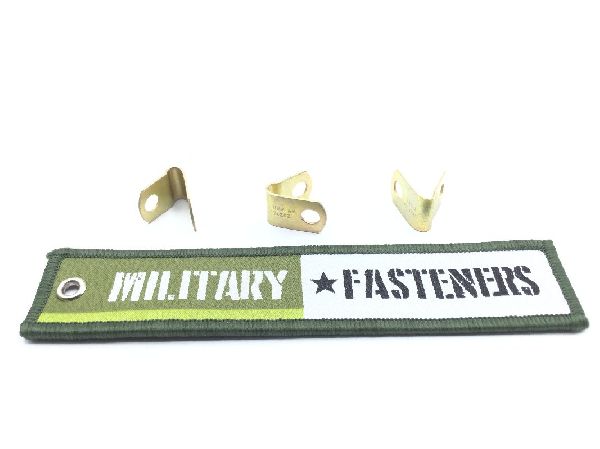

AN742D2 Loop Clamp (2)

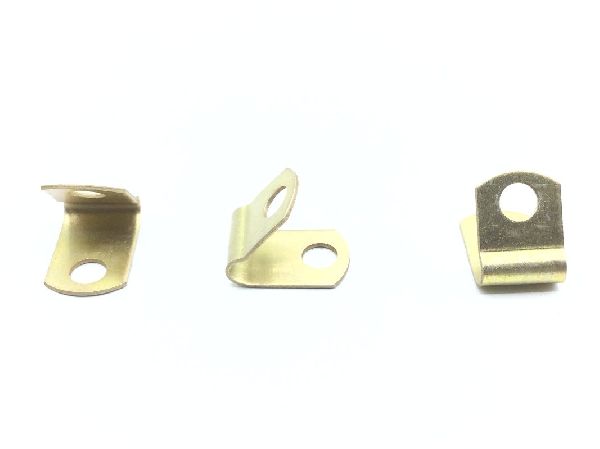

AN742D2 Loop Clamp (3)

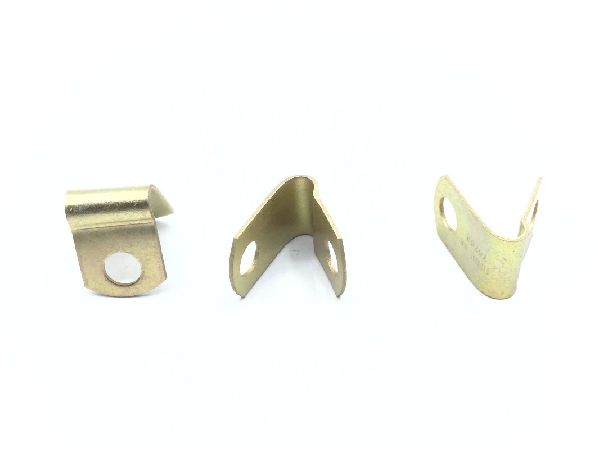

AN742D2 Loop Clamp (4)
AN742D2 Loop Clamp
AN742D2 Loop Clamp (2)
AN742D2 Loop Clamp (3)
AN742D2 Loop Clamp (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN742D2 Loop Clamp

Product Series
AN
ECCN
EAR99
Schedule
8539.29.2500
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Aluminum alloy 2024 band
Center To Center Distance Between Loop And Mounting Hole
0.360 inches
Distance From Loop Center To Tongue End
0.548 inches
Loop Inside Diameter
Between 0.110 inches and 0.140 inches
Material Specification
Qq-a-362 federal specification single material response band
Material Thickness
Between 0.030 inches and 0.035 inches
Nondefinitive Specification/std Data
1 type and a class
Overall Width
0.500 inches
Style Designator
Single loop
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
