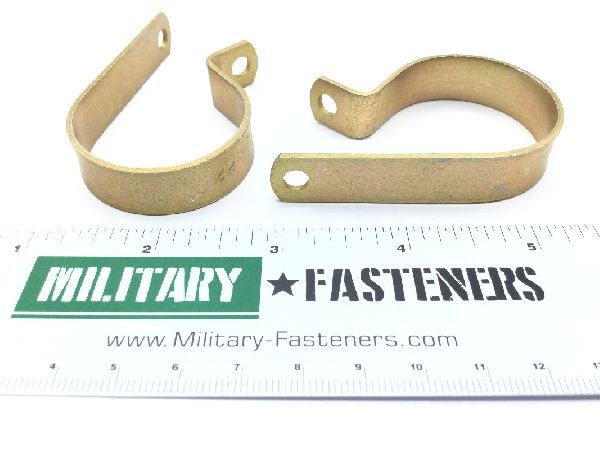

AN742D22 Loop Clamp

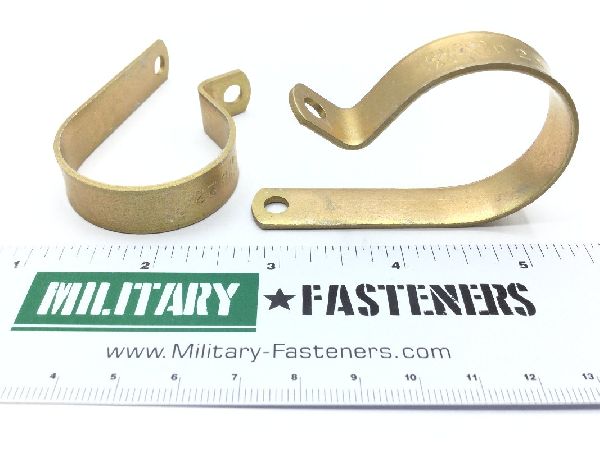

AN742D22 Loop Clamp (2)

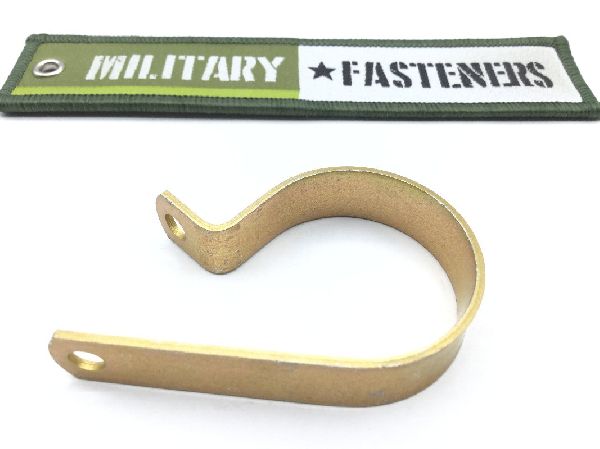

AN742D22 Loop Clamp (3)

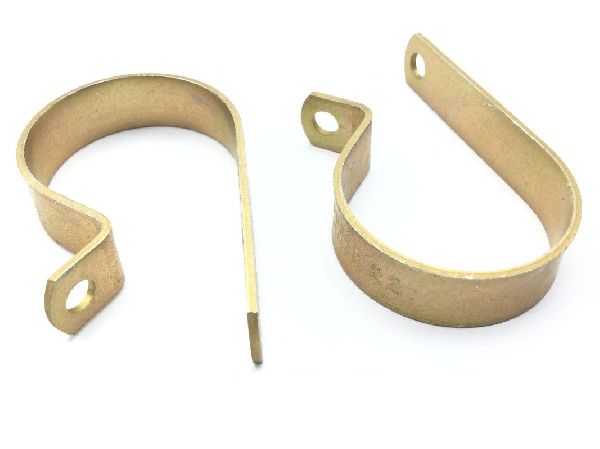

AN742D22 Loop Clamp (4)

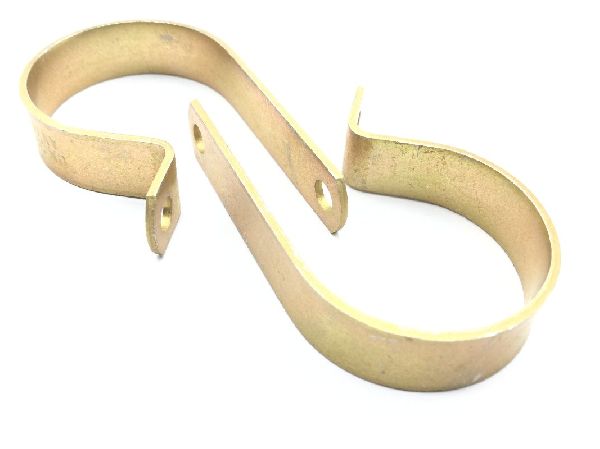

AN742D22 Loop Clamp (5)

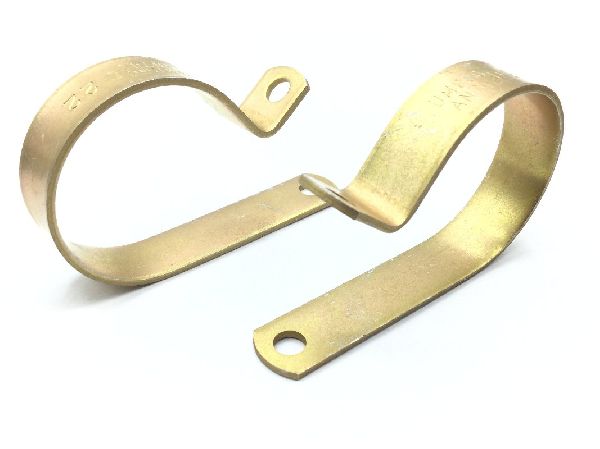

AN742D22 Loop Clamp (6)
AN742D22 Loop Clamp
AN742D22 Loop Clamp (2)
AN742D22 Loop Clamp (3)
AN742D22 Loop Clamp (4)
AN742D22 Loop Clamp (5)
AN742D22 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN742D22 Loop Clamp

Product Series
AN
ECCN
EAR99
Schedule
7616.10.9090
Price per Unit $2.56
Units per Pack 20
Price per Pack $51.20
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $51.20
Add item to quote
Material
Aluminum alloy 2024 band
Center To Center Distance Between Loop And Mounting Hole
1.124 inches
Distance From Loop Center To Tongue End
1.342 inches
Loop Inside Diameter
1.375 inches
Material Specification
Qq-a-250/5 federal specification single material response band
Material Thickness
0.063 inches
Overall Width
0.500 inches
Style Designator
Single loop
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
