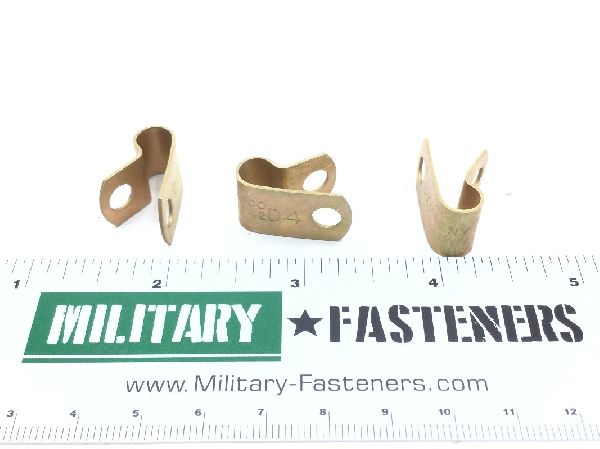

AN742D4 Loop Clamp

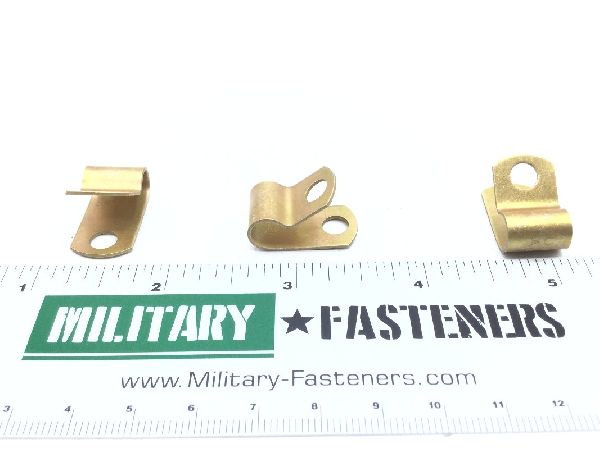

AN742D4 Loop Clamp (2)

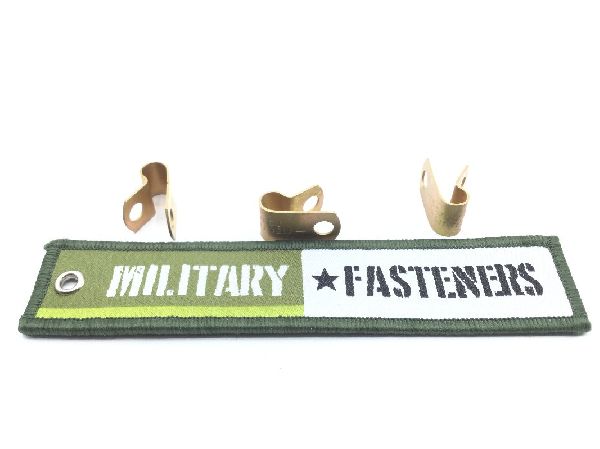

AN742D4 Loop Clamp (3)
AN742D4 Loop Clamp (4)

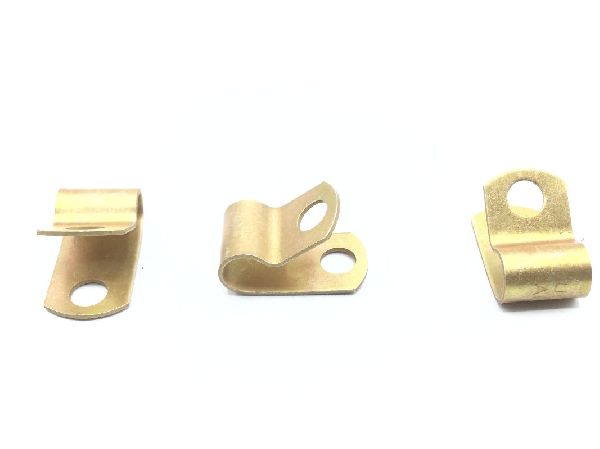

AN742D4 Loop Clamp (5)

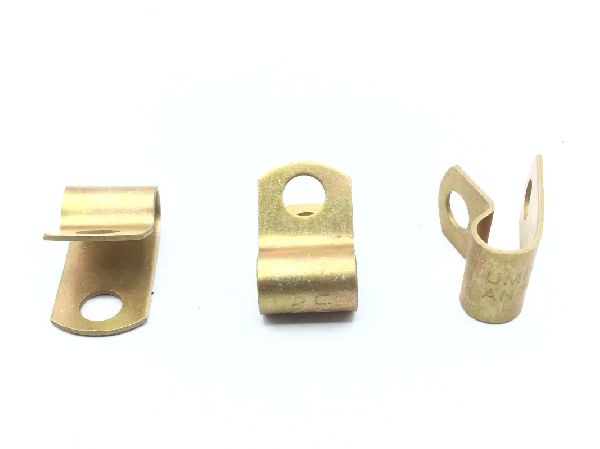

AN742D4 Loop Clamp (6)
AN742D4 Loop Clamp
AN742D4 Loop Clamp (2)
AN742D4 Loop Clamp (3)
AN742D4 Loop Clamp (4)
AN742D4 Loop Clamp (5)
AN742D4 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN742D4 Loop Clamp

Product Series
AN
ECCN
EAR99
Schedule
8539.29.2500
Price per Unit $1.52
Units per Pack 25
Price per Pack $38.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:
Total Packs 1
Total Price $38.00
Add item to quote
Material
Aluminum alloy 2024 band
Center To Center Distance Between Loop And Mounting Hole
0.457 inches
Distance From Loop Center To Tongue End
0.645 inches
Loop Inside Diameter
Between 0.235 inches and 0.265 inches
Material Specification
Qq-a-250/5 federal specification single material response band
Material Thickness
Between 0.030 inches and 0.035 inches
Nondefinitive Specification/std Data
1 type and a class
Overall Width
0.500 inches
Style Designator
Single loop
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
