Home » AN742D8 Loop Clamp

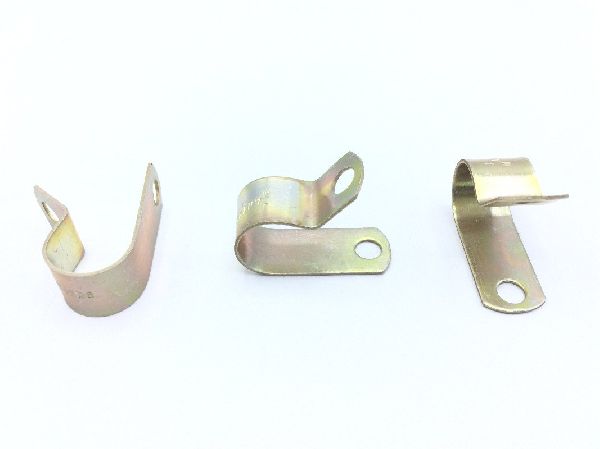

AN742D8 Loop Clamp
AN742D8 Loop Clamp (2)

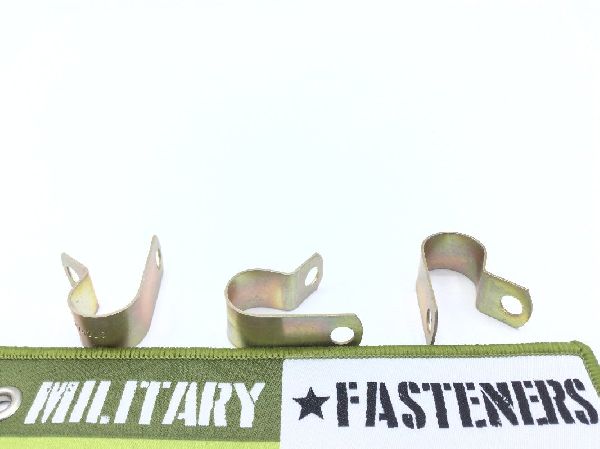

AN742D8 Loop Clamp (3)

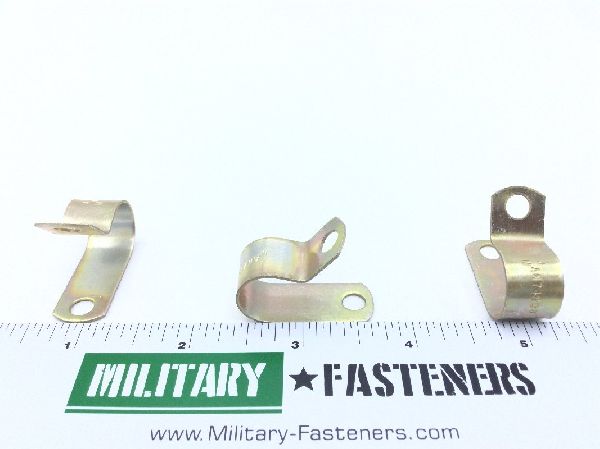

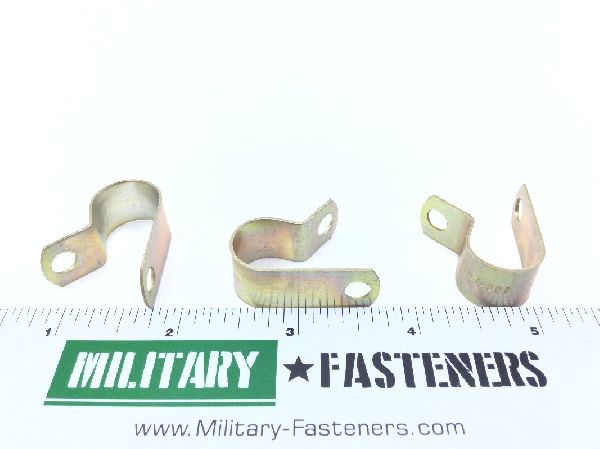

AN742D8 Loop Clamp (4)
AN742D8 Loop Clamp
AN742D8 Loop Clamp (2)
AN742D8 Loop Clamp (3)
AN742D8 Loop Clamp (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN742D8 Loop Clamp

Product Series
AN
ECCN
EAR99
Schedule
8539.29.2500
Price per Unit $0.92
Units per Pack 50
Price per Pack $46.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $46.00
Add item to quote
Material
Aluminum alloy 2024 band
Surface Treatment
Cl 1a military specification single treatment response band mil-c-5541
Center To Center Distance Between Loop And Mounting Hole
Between 0.577 inches and 0.607 inches
Distance From Loop Center To Tongue End
Between 0.765 inches and 0.795 inches
Loop Inside Diameter
Between 0.485 inches and 0.515 inches
Material Specification
Qq-a-250/5 federal specification single material response band
Material Thickness
Between 0.0295 inches and 0.0345 inches
Overall Width
Between 0.485 inches and 0.515 inches
Style Designator
Single loop
Tongue Hole Type
unthreaded round
Diameter
Between 0.213 inches and 0.223 inches
