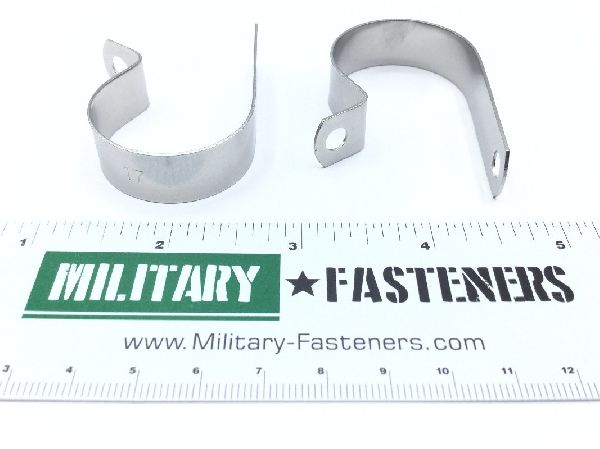

AN742F17 Loop Clamp

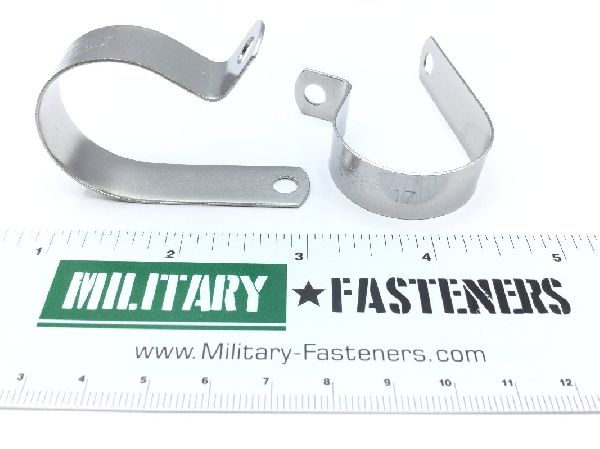

AN742F17 Loop Clamp (2)

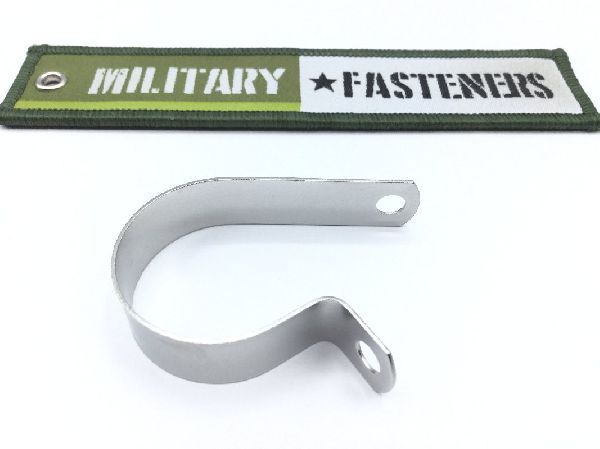

AN742F17 Loop Clamp (3)

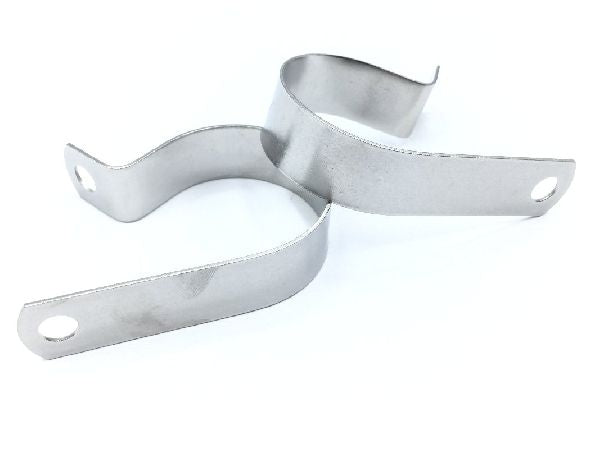

AN742F17 Loop Clamp (4)

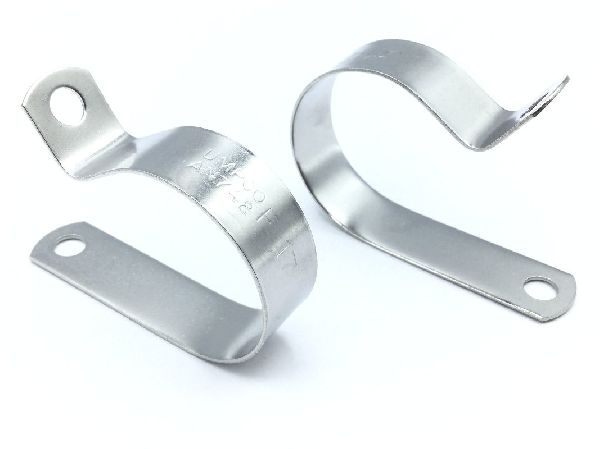

AN742F17 Loop Clamp (5)

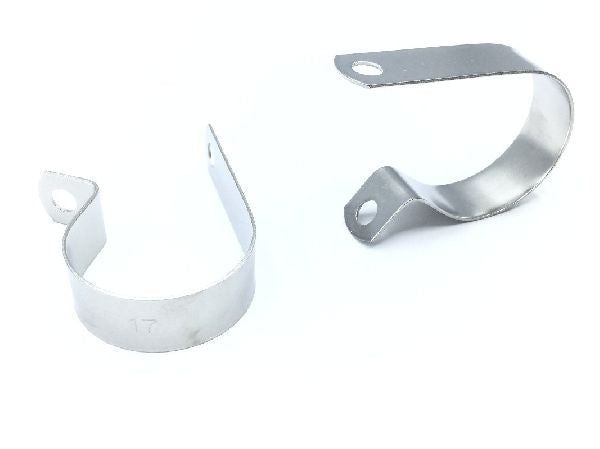

AN742F17 Loop Clamp (6)
AN742F17 Loop Clamp
AN742F17 Loop Clamp (2)
AN742F17 Loop Clamp (3)
AN742F17 Loop Clamp (4)
AN742F17 Loop Clamp (5)
AN742F17 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN742F17 Loop Clamp

Product Series
AN
ECCN
EAR99
Schedule
7616.10.9090
Price per Unit $4.08
Units per Pack 10
Price per Pack $40.80
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $40.80
Add item to quote
Material
Steel comp 301 band or steel comp 302 band
Center To Center Distance Between Loop And Mounting Hole
0.920 inches
Distance From Loop Center To Tongue End
1.138 inches
Loop Inside Diameter
1.062 inches
Material Specification
Mil-s-5059 military specification 1st material response band or mil-s-5059 military specification 2nd material response band
Material Thickness
Between 0.028 inches and 0.036 inches
Overall Width
0.500 inches
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
