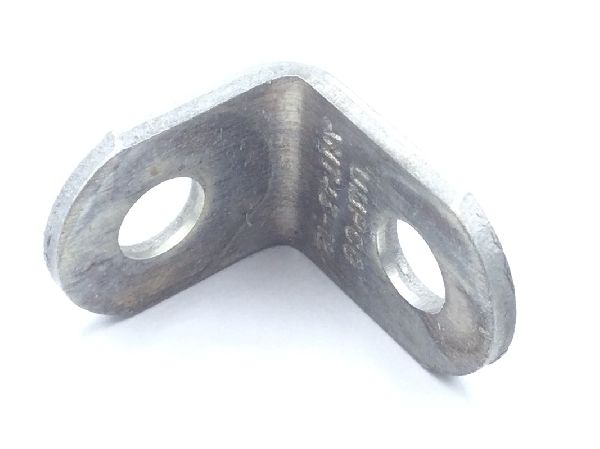

AN743-12 Angle Bracket

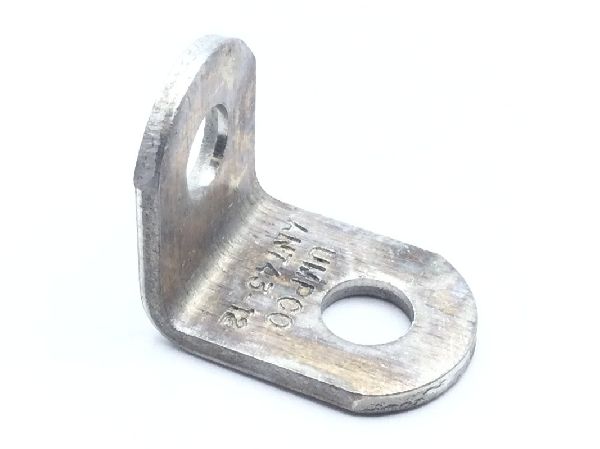

AN743-12 Angle Bracket (2)

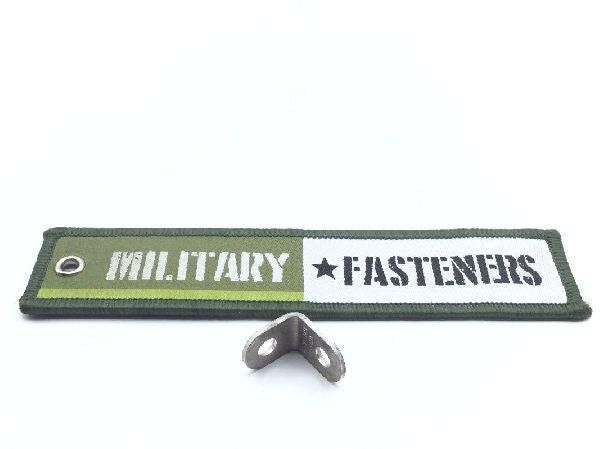

AN743-12 Angle Bracket (3)

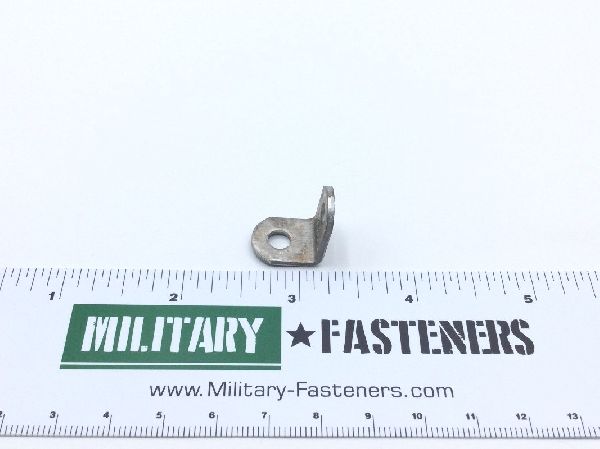

AN743-12 Angle Bracket (4)

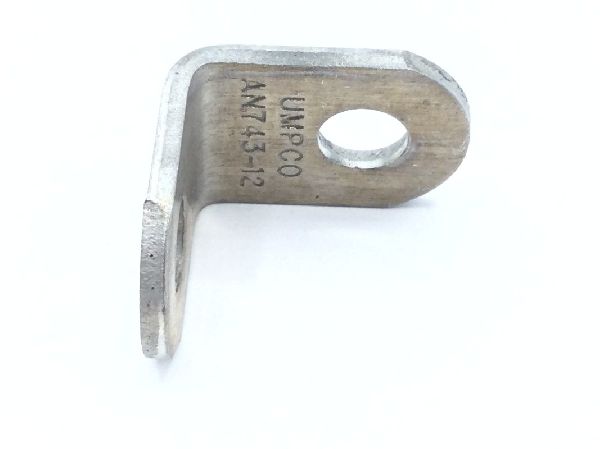

AN743-12 Angle Bracket (5)

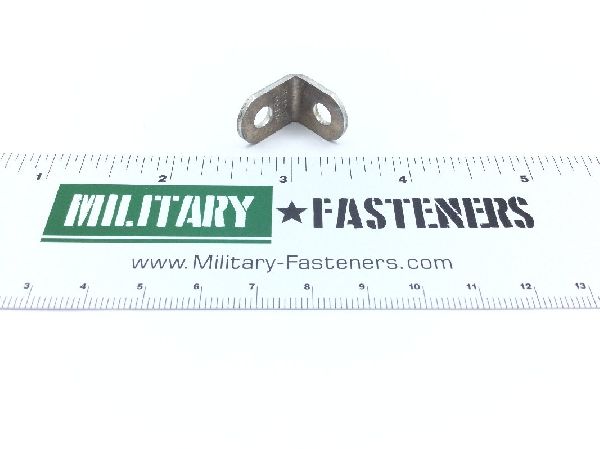

AN743-12 Angle Bracket (6)
AN743-12 Angle Bracket
AN743-12 Angle Bracket (2)
AN743-12 Angle Bracket (3)
AN743-12 Angle Bracket (4)
AN743-12 Angle Bracket (5)
AN743-12 Angle Bracket (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN743-12 Angle Bracket

Product Series
AN
ECCN
EAR99
Schedule
8302.50.0000
Price per Unit $1.39
Units per Pack 25
Price per Pack $34.75
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:
Total Packs 1
Total Price $34.75
Add item to quote
Material
Aluminum alloy 2024
First Leg Angle
90.0 degrees
First Leg Distance From Edge To Hole Center Along Length
0.250 inches
First Leg Distance From Edge To Hole Center Along Width
0.250 inches
First Leg End Radius
0.250 inches
First Leg Hole Arrangement Style
One hole
First Leg Hole Diameter
0.204 inches
First Leg Length
0.625 inches
First Leg Style
End radius
First Leg Thickness
0.063 inches
First Leg Width
0.500 inches
Material Specification
Alclad t4 federal specification single material response qq-a-250/5
Second Leg Distance From Edge To Hole Center Along Length
0.250 inches
Second Leg Distance From Edge To Hole Center Along Width
0.250 inches
Second Leg End Radius
0.250 inches
Second Leg Hole Arrangement Style
One hole
Second Leg Hole Diameter
0.204 inches
Second Leg Length
0.690 inches
Second Leg Relationship To First Leg
Identical
Second Leg Style
End radius
Second Leg Thickness
0.063 inches
Second Leg Width
0.500 inches
Style Designator
Angle
