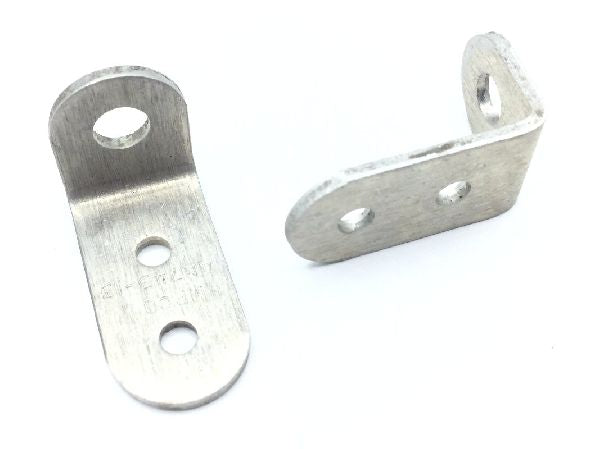

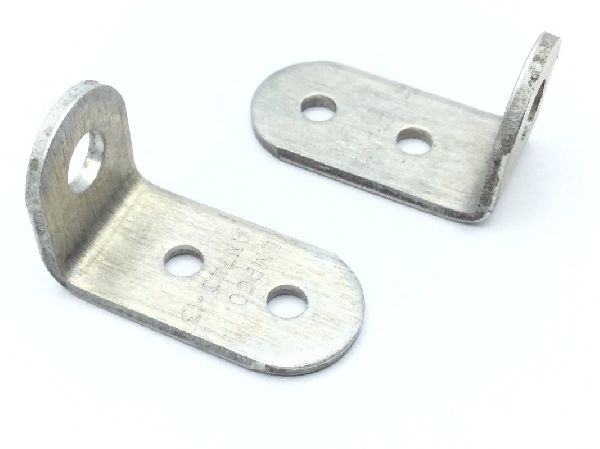

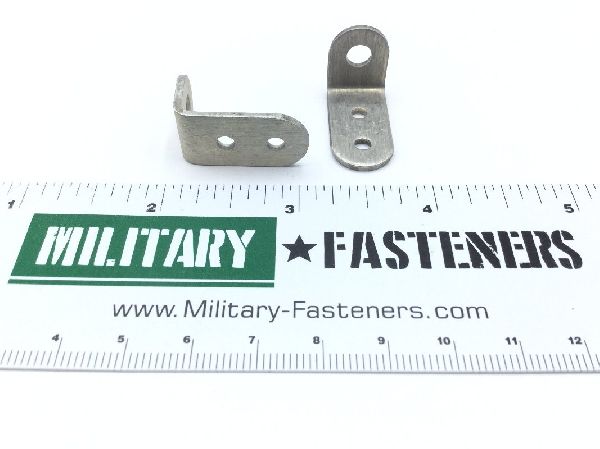

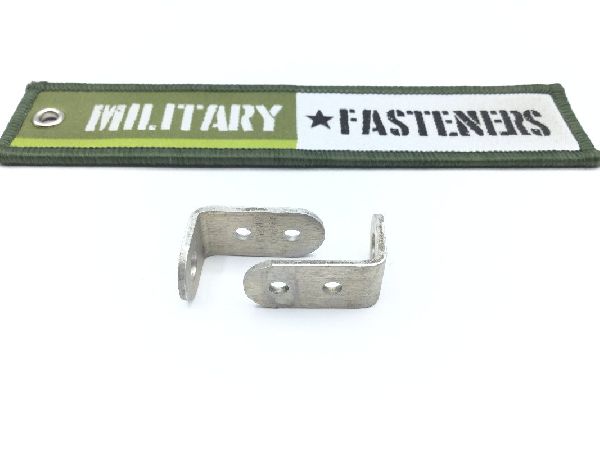

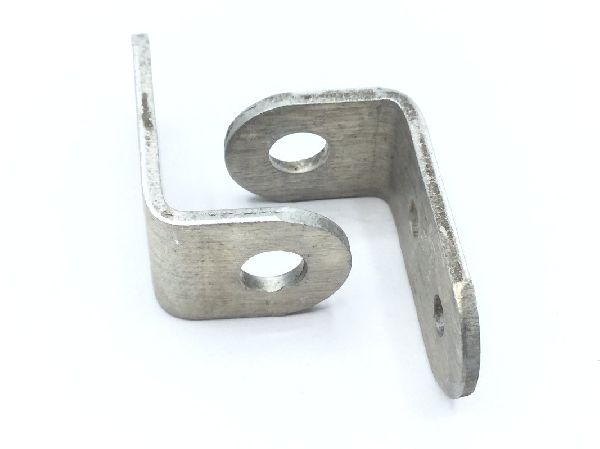

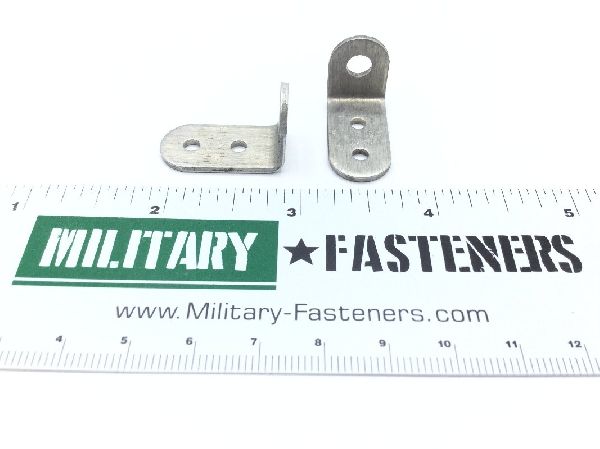

AN743-13 Angle Bracket
- Product Series
- AN
- ECCN
- EAR99
- Schedule
- 8302.50.0000
Price per Unit
$1.25
Units per Pack
25
Price per Pack
$31.25
Unit of Measure:
EA
Couldn't load pickup availability
- Departure From Cited Designator
- As modified by first leg hole diameter
- First Leg Angle
- 90.0 degrees
- First Leg Distance From Edge To Hole Center Along Length
- Between 0.230 inches and 0.270 inches
- First Leg Distance From Edge To Hole Center Along Width
- Between 0.230 inches and 0.270 inches
- First Leg End Radius
- Between 0.230 inches and 0.270 inches
- First Leg Hole Arrangement Style
- One hole
- First Leg Hole Diameter
- Between 0.194 inches and 0.214 inches
- First Leg Length
- Between 0.615 inches and 0.635 inches
- First Leg Style
- End radius
- First Leg Thickness
- Between 0.053 inches and 0.073 inches
- First Leg Width
- Between 0.490 inches and 0.510 inches
- Material Specification
- Alclad t3 federal specification single material response qq-a-250/5
- Second Leg End Radius
- Between 0.230 inches and 0.270 inches
- Second Leg Length
- Between 0.990 inches and 1.110 inches
- Second Leg Relationship To First Leg
- Identical
- Second Leg Thickness
- Between 0.053 inches and 0.073 inches
- Second Leg Width
- Between 0.490 inches and 0.510 inches
- Style Designator
- Angle
