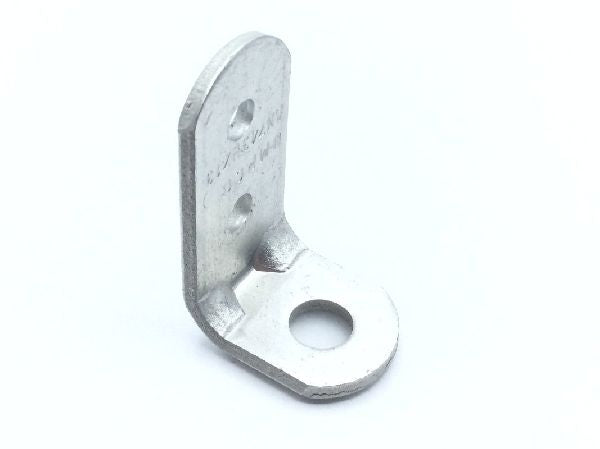

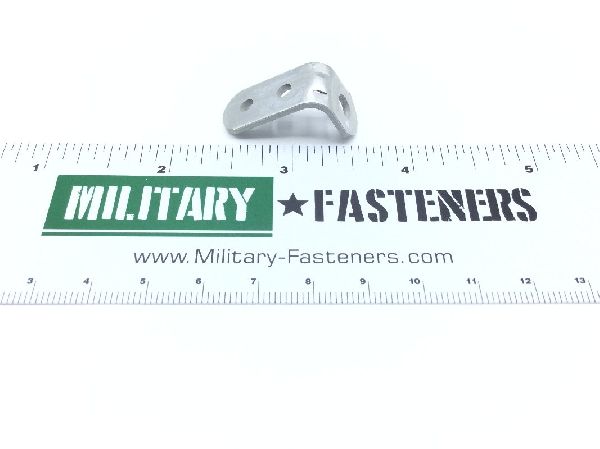

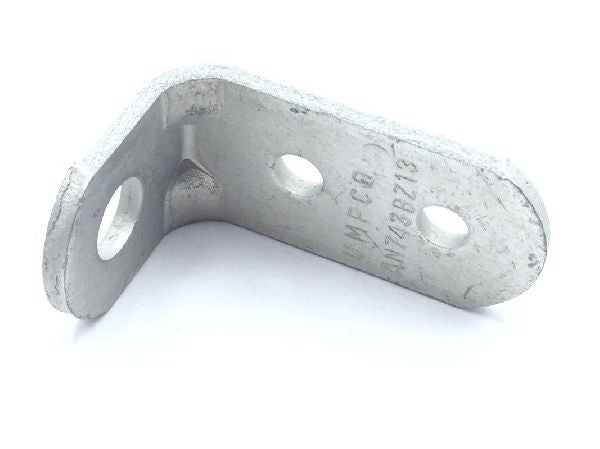

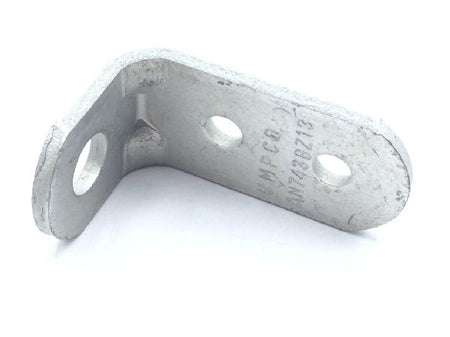

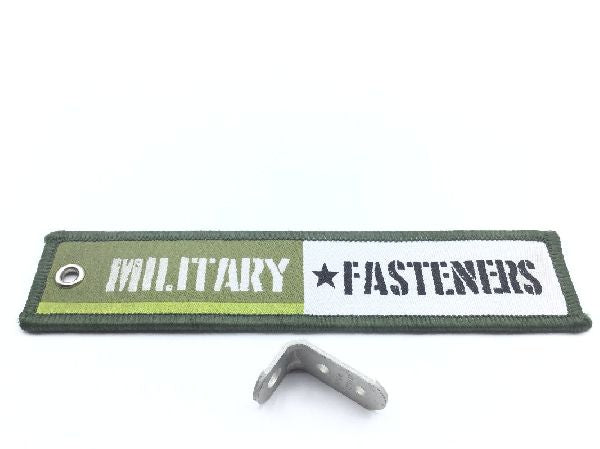

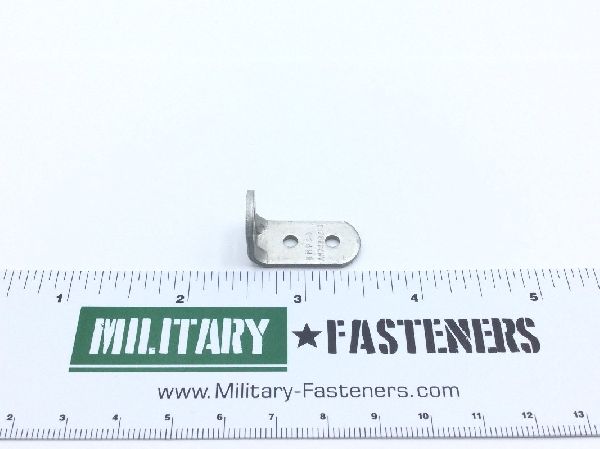

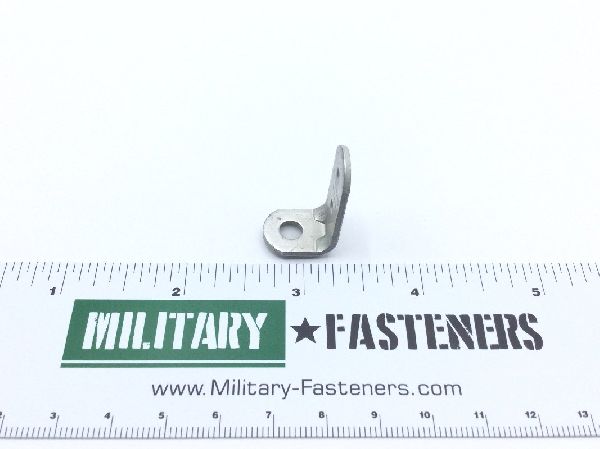

AN743BZ13 Mounting Bracket
- Product Series
- AN
- ECCN
- EAR99
- Schedule
- 7326.90.8695
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- First Leg Angle
- 90.0 degrees
- First Leg Distance From Edge To Hole Center Along Length
- Between 0.240 inches and 0.260 inches
- First Leg Distance From Edge To Hole Center Along Width
- Between 0.240 inches and 0.260 inches
- First Leg End Radius
- Between 0.240 inches and 0.260 inches
- First Leg Hole Arrangement Style
- One hole
- First Leg Hole Diameter
- Between 0.194 inches and 0.214 inches
- First Leg Length
- Between 0.615 inches and 0.635 inches
- First Leg Style
- End radius
- First Leg Thickness
- Between 0.053 inches and 0.073 inches
- First Leg Width
- Between 0.490 inches and 0.510 inches
- Material Specification
- Alclad t3 federal specification single material response qq-a-250/5
- Reinforcement Method (non-core)
- Beaded both sides
- Second Leg Distance Between Hole Centers Along Length
- 0.365 mils and 0.385 centimeters
- Second Leg Distance From Edge To Hole Center Along Length
- Between 0.240 inches and 0.260 inches
- Second Leg Distance From Edge To Hole Center Along Width
- Between 0.240 inches and 0.260 inches
- Second Leg End Radius
- Between 0.240 inches and 0.260 inches
- Second Leg Hole Arrangement Style
- Two holes
- Second Leg Hole Diameter
- Between 0.118 inches and 0.138 inches
- Second Leg Length
- Between 0.990 inches and 1.010 inches
- Second Leg Relationship To First Leg
- Not identical
- Second Leg Style
- End radius
- Second Leg Thickness
- Between 0.053 inches and 0.073 inches
- Second Leg Width
- Between 0.490 inches and 0.510 inches
- Style Designator
- Angle
