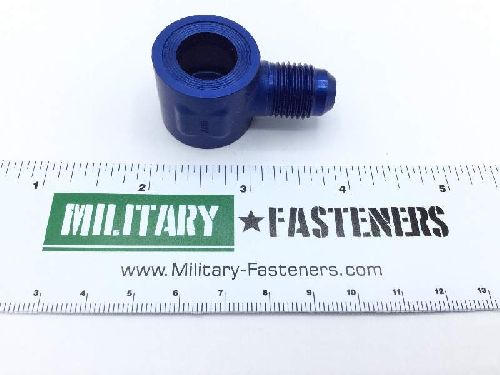

AN776-6D Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7307.22.5000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2014

Overall Length

Between 1.750 inches and 1.797 inches

Thread Class

Thread Size

9/16 in.-18

Bolt Hole Diameter: 0.563 inches
Bolt Hole Flats Serrations: Provided
Bolt Hole Fluid Passage: Provided
Connection Style: Flared
Fluid Connection Quantity: 1
Fluid Conveyance Type And Size For Which Designed: 3/8 in. od tube
Overall Width: 1.000 inches
Screw Thread Series Designator: Unjf (fine thread with external controlled root radius)
Seat: Included
Seat Angle In Deg: 37
Specification Data: 88044-an776-j+81343-as4875/1 government standard
Style Designator: 1 fluid connection
Thickness: 0.875 inches
Thread Direction: Right-hand
Thread Provision: Threaded
