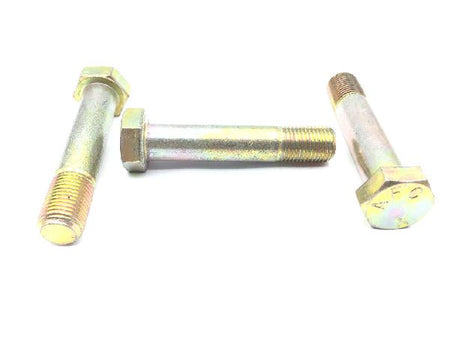

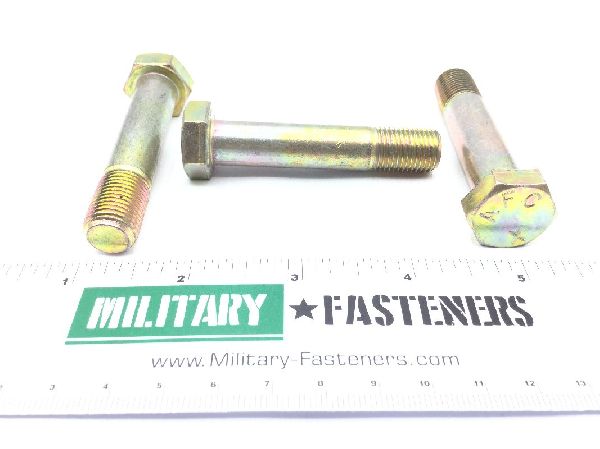

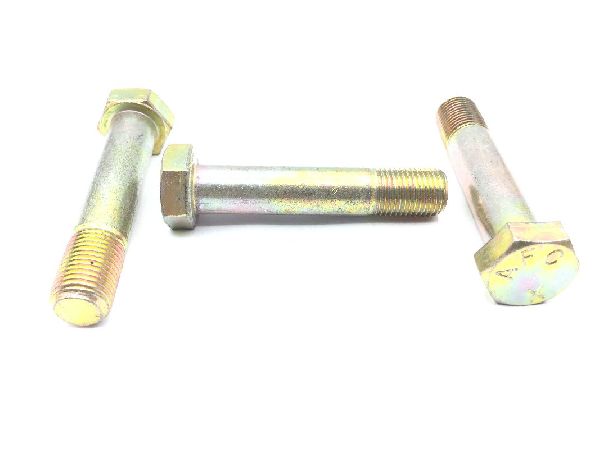

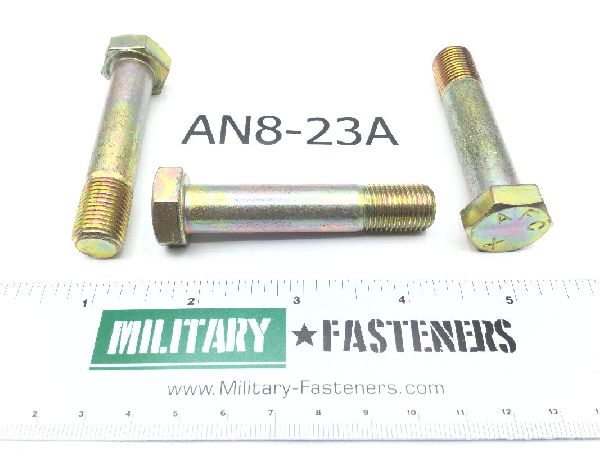

AN8-23A Machine Bolt

NSN: 5306-00-180-0097
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Hexagon

Material

Steel comp 4037 or steel comp 4130 or steel comp 8630 or steel comp 8735 or steel comp 8740 or steel comp 4140

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: 2.469 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 1.688 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.265 inches and 0.297 inches
Material Specification: Mil-b-6812 military specification all material responses
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: 0.781 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.740 inches and 0.752 inches
