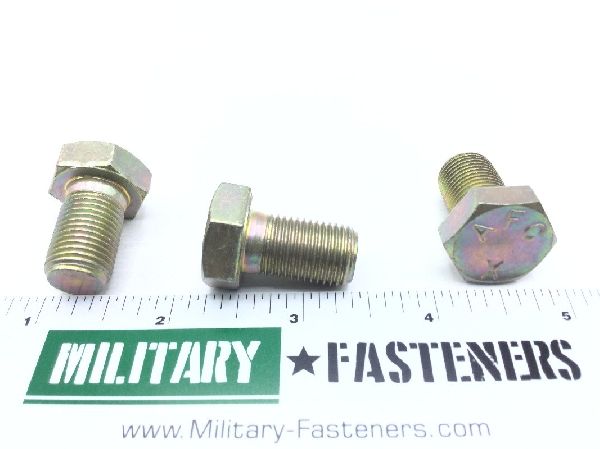

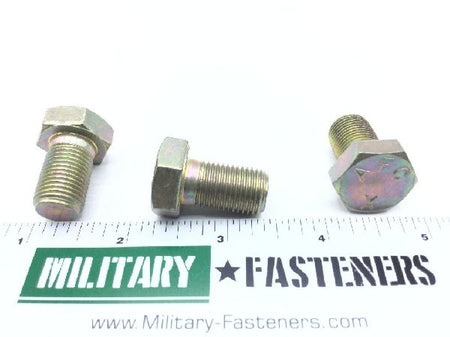

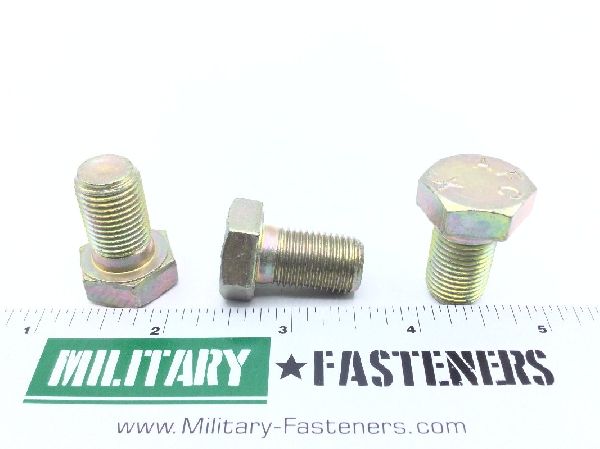

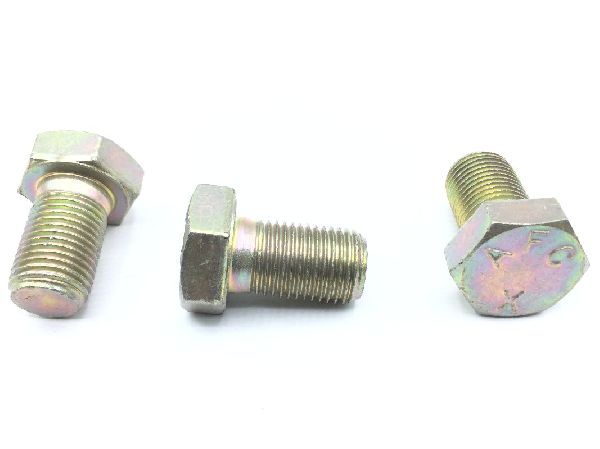

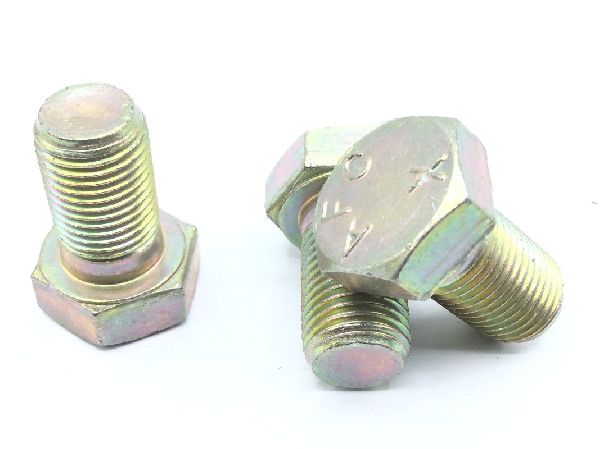

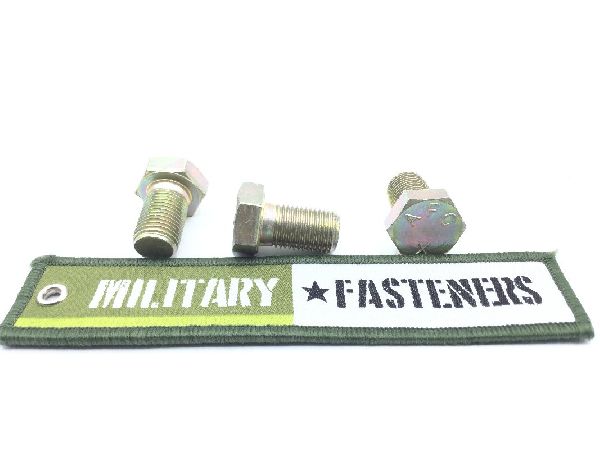

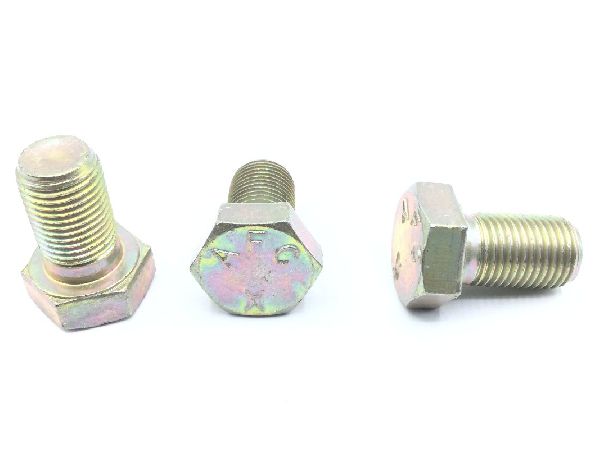

AN8-6A Machine Bolt

NSN: 5306-00-206-2868
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: Between 0.828 inches and 0.875 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.047 inches and 0.078 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.265 inches and 0.297 inches
Min. Tensile Strength (psi): 125,000 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: Between 0.75 inches and 0.828 inches
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.740 inches and 0.752 inches
