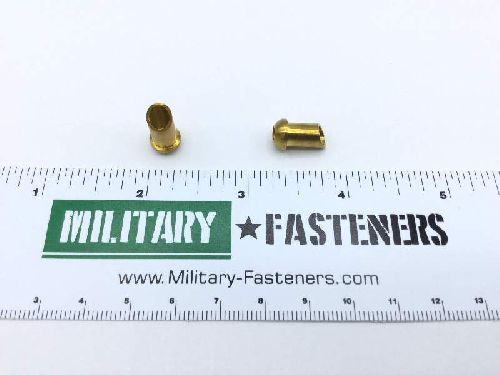

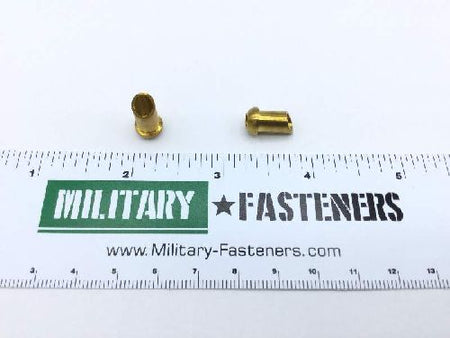

AN800-3 Tube Fitting

Product Series: AN
ECCN: EAR99
Schedule: 7307.22.5000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Copper alloy

Overall Length

0.553 inches

Casehardening Indicator: Not casehardened
Distance From Flanged End To Tubing Clearance Hole: 0.156 inches
Flange Face Diameter: 0.172 inches
Flange Inside Diameter: 0.14 inches
Flange Outside Diameter: 0.32 inches
Flange Width: 0.125 inches
Hose/tube Outside Diameter For Which Designed: 0.188 inches
Seat Radius: 0.172 inches
Sleeve Outside Diameter: 0.25 inches
Style Designator: Compression
