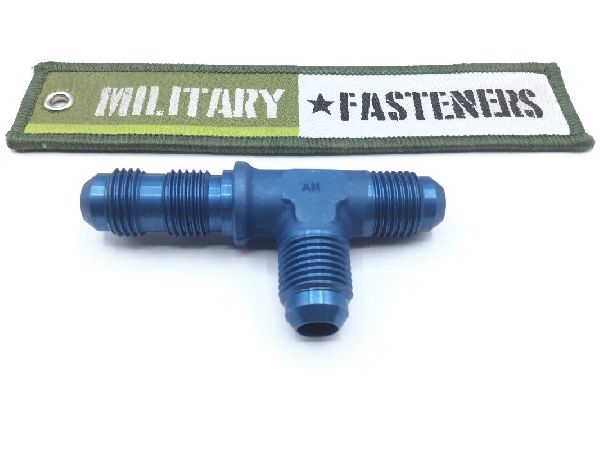

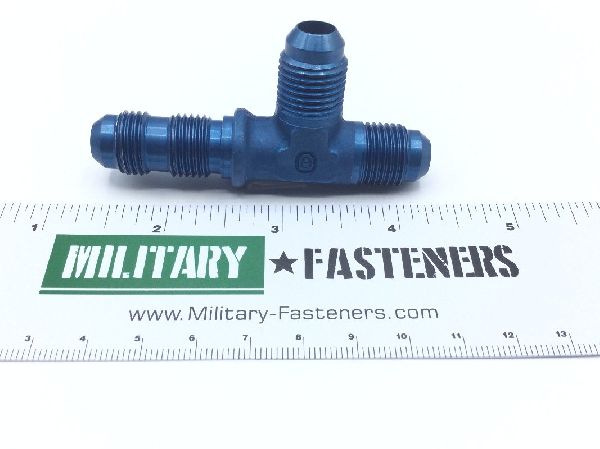

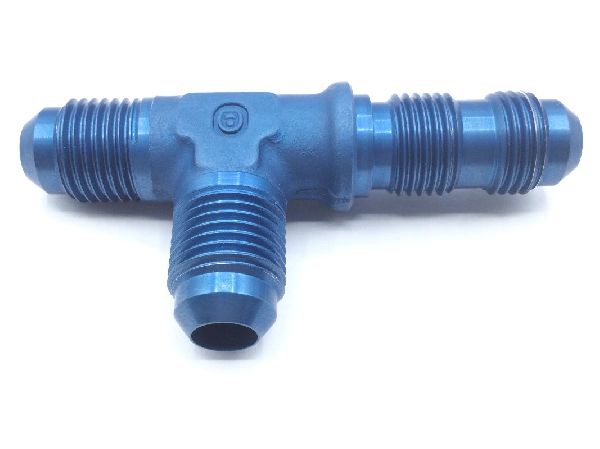

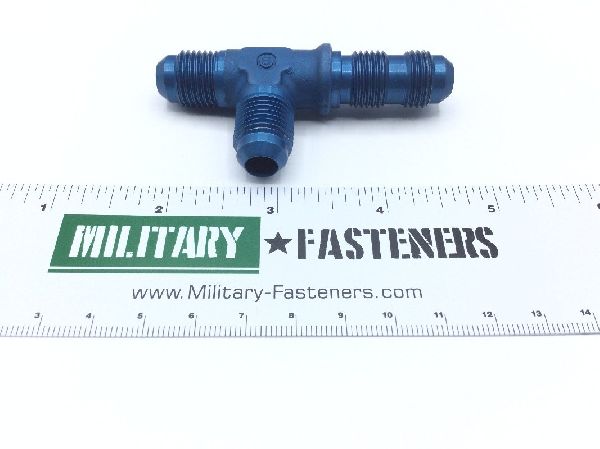

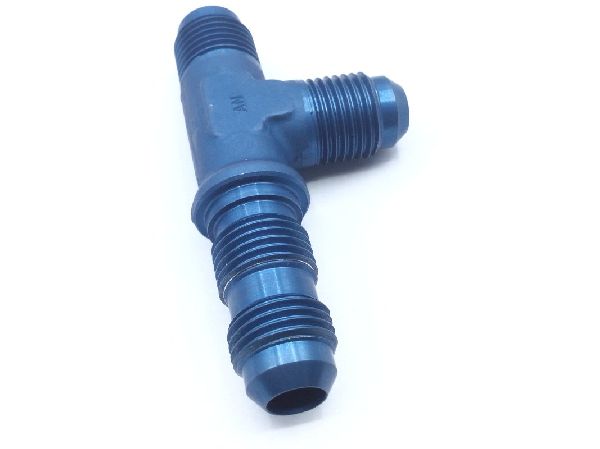

AN804D6 Tube Tee

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $30.42

Units per Pack 1

Price per Pack $30.42

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $30.42

Add item to quote

Material

Aluminum alloy 2014 or aluminum alloy 2024

Surface Treatment

Mil-a-8625 federal standard single treatment response

Thread Class

3a all ends

Thread Size

0.562 inches 1st end bulkhead

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
Leg Length: 1.078 inches 3rd end
Material Specification: T6 federal specification 2nd material response t6 federal specification 1st material response or qq-a-225/6 qq-a-225/4
Media For Which Designed: Hydraulic fluid single response
Outside Diameter Tube Accommodated: 0.375 inches all ends
Seat Angle: 37.0 degrees all ends
Specification Data: 88044-an804 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
