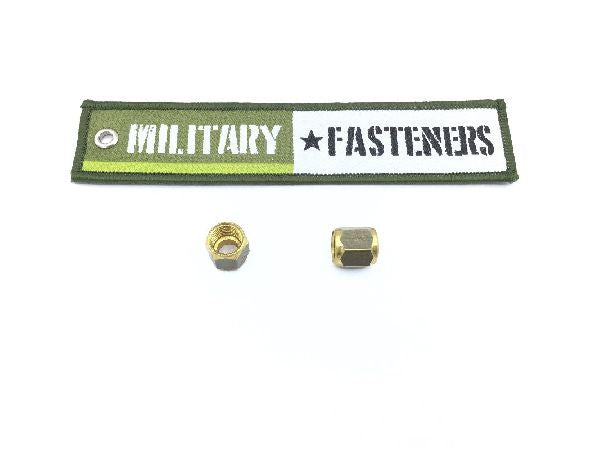

AN805-3 Tube Coupling Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Copper alloy

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.375 inches

Fabrication Method: Forged or machined
Length To Shoulder: Between 0.297 inches and 0.328 inches
Material Specification: Cp 21 or 22 federal specification single material response qq-b-626
Nut Height: 0.50 inches
Nut Style: Tube coupling
Smallest Inside Diameter: Between 0.242 inches and 0.266 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Tube Outside Diameter: 0.188 inches
Width Across Flats: Between 0.432 inches and 0.441 inches
