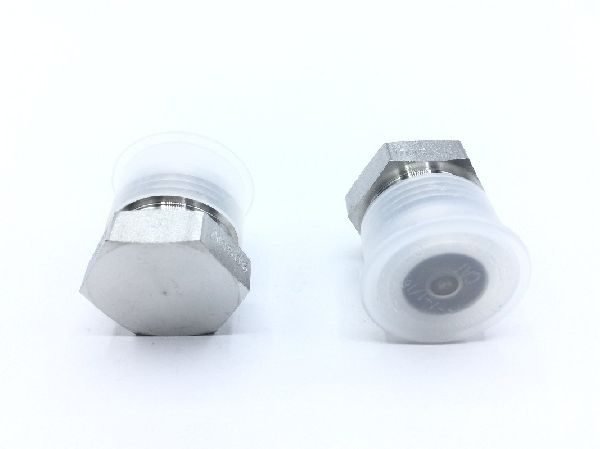

AN806-12J Threaded Tube Fitting Plug

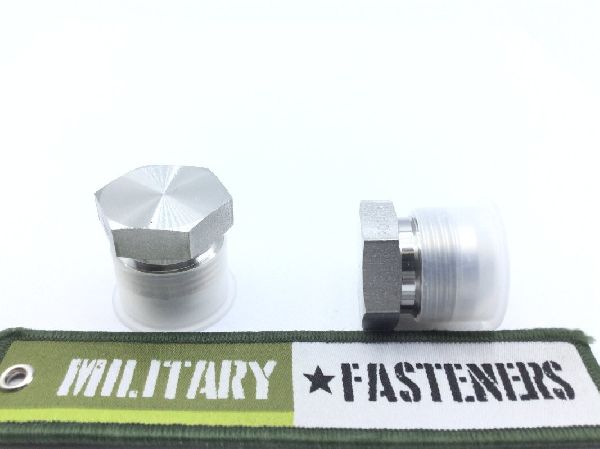

AN806-12J Threaded Tube Fitting Plug (2)

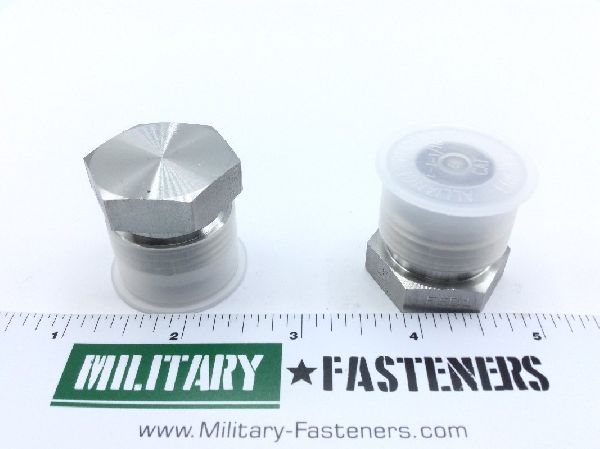

AN806-12J Threaded Tube Fitting Plug (3)

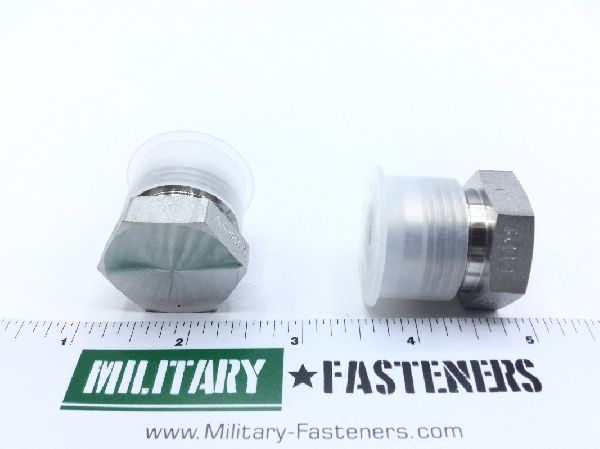

AN806-12J Threaded Tube Fitting Plug (4)

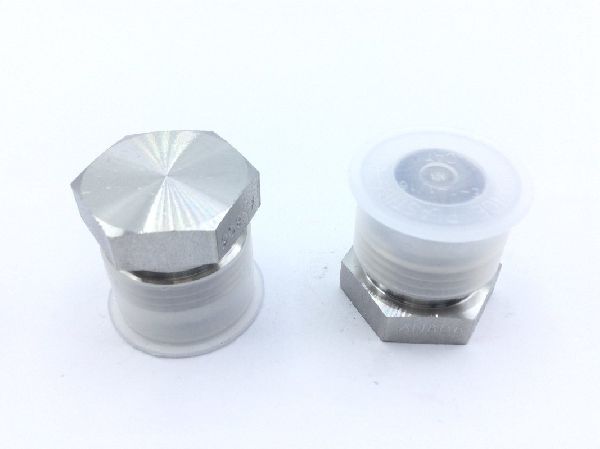

AN806-12J Threaded Tube Fitting Plug (5)

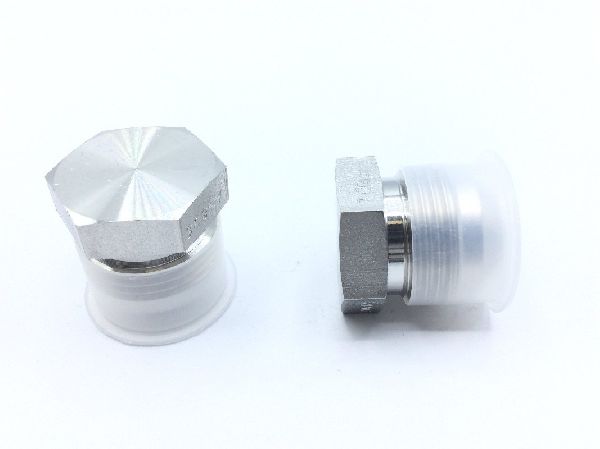

AN806-12J Threaded Tube Fitting Plug (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN806-12J Threaded Tube Fitting Plug

Product Series: AN
ECCN: EAR99
Schedule: 7307.99.4000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 304

Overall Length

1.203 inches

Surface Treatment

Type 1 federal specification single treatment response qq-p-35

Thread Class

3a external

Thread Size

1.062 inches external

Connection Style: Flared
Head Height: 0.391 inches
Material Specification: Qq-s-763 federal specification single material response
Maximum Operating Pressure: 3000.0 pounds per square inch
Media For Which Designed: Hydraulic fluid
Seat Angle: 37.0 degrees
Style Designator: Should not be considered as a separating characteristic) tube fitting flared (note: drilled hole is optional plug
Thread Direction: Right-hand external
Thread Qty Per Inch (tpi): 12 external
Thread Series Designator: Unj external
