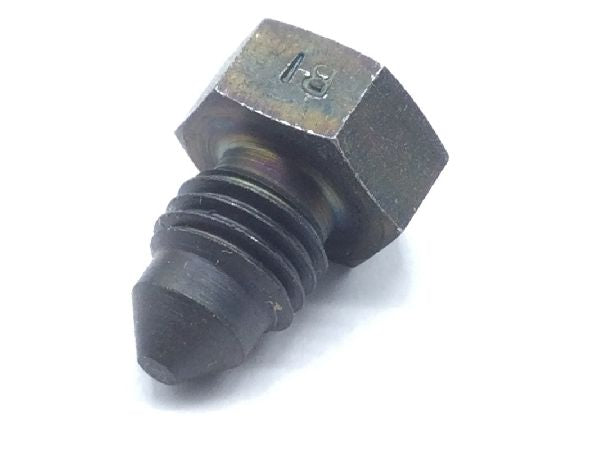

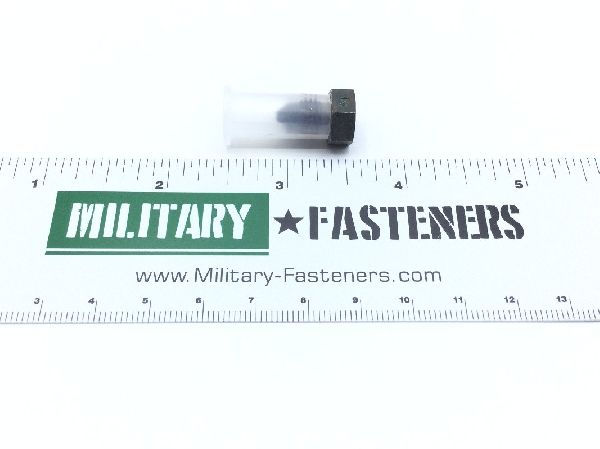

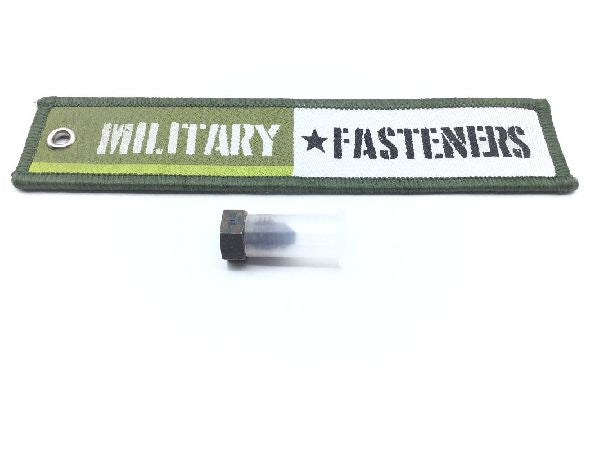

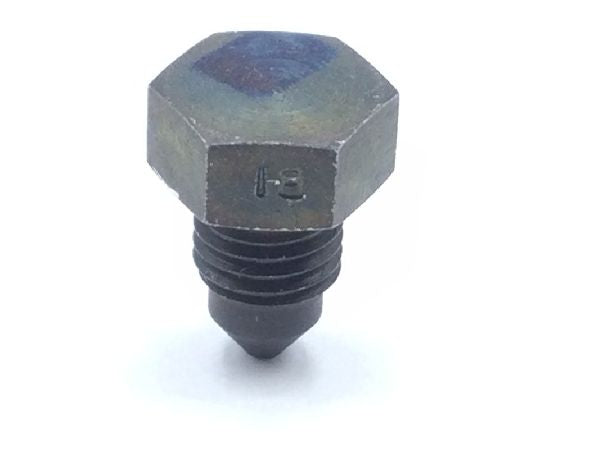

AN806-2 Threaded Tube Fitting Plug

Product Series: AN
ECCN: EAR99
Schedule: 7307.99.4000

Price per Unit $16.98

Units per Pack 2

Price per Pack $33.96

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $33.96

Add item to quote

Material

Steel comp 1137 or steel comp 1141

Overall Length

0.641 inches

Surface Treatment

Class 2 federal specification single treatment response tkype 2 qq-p-416

Thread Class

3a external

Thread Size

0.312 inches external

Connection Style: Flared
End Application: minuteman lgm-30 01f missile
Head Height: 0.174 inches
Material Specification: Qq-s-637 federal specification single material response
Maximum Operating Pressure: 3000.0 pounds per square inch
Media For Which Designed: Hydraulic fluid
Seat Angle: 37.0 degrees
Specification Data: 96906-ms24404 government standard
Style Designator: Should not be considered as a separating characteristic) tube fitting flared (note: drilled hole is optional plug
Thread Direction: Right-hand external
Thread Series Designator: Unjf (fine thread with external controlled root radius) external
