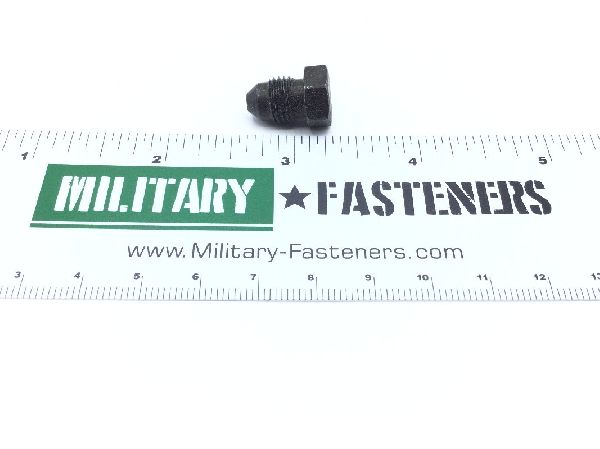

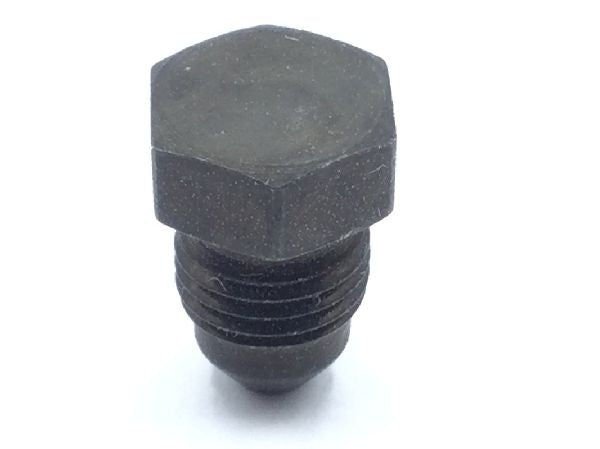

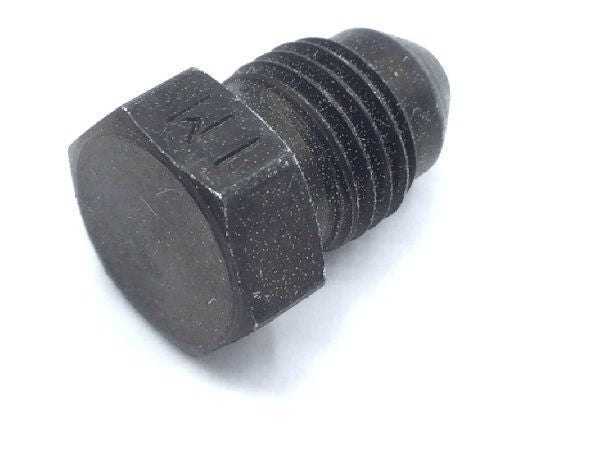

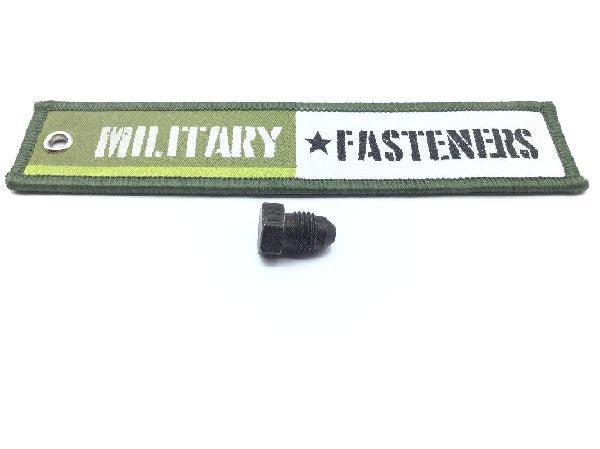

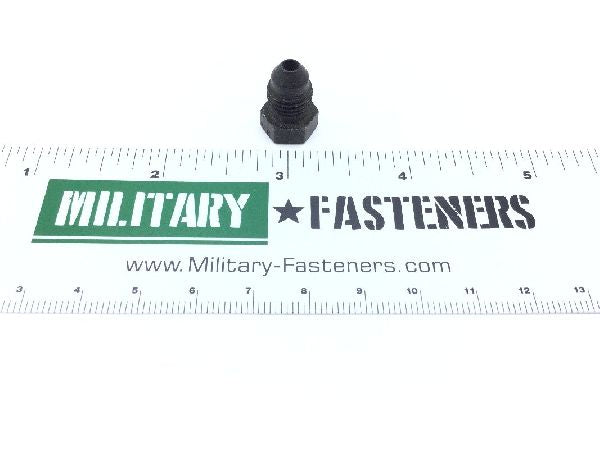

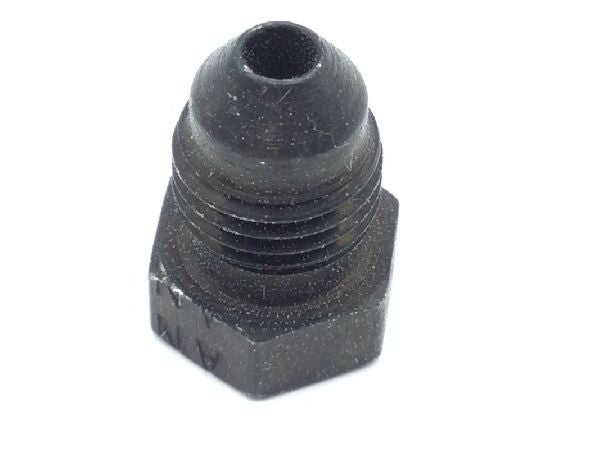

AN806-3 Threaded Tube Fitting Plug

Product Series: AN
ECCN: EAR99
Schedule: 7307.99.4000

Price per Unit $10.05

Units per Pack 5

Price per Pack $50.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $50.25

Add item to quote

Material

Steel comp 1137

Overall Length

0.672 inches

Surface Treatment

Ty ii federal specification single treatment response

Thread Class

3a external

Thread Size

0.375 inches external

Connection Style: Flared
End Application: Grumman aerospace inc supports a10 aircraft
Head Height: 0.193 inches
Material Specification: 66 federal standard single material response
Seat Angle: 37.0 degrees
Specification Data: 81343 - as5168 professional/industrial association standard
Style Designator: Should not be considered as a separating characteristic) tube fitting flared (note: drilled hole is optional plug
Thread Direction: Right-hand external
Thread Qty Per Inch (tpi): 24 external
Thread Series Designator: Unjf (fine thread with external controlled root radius) external
