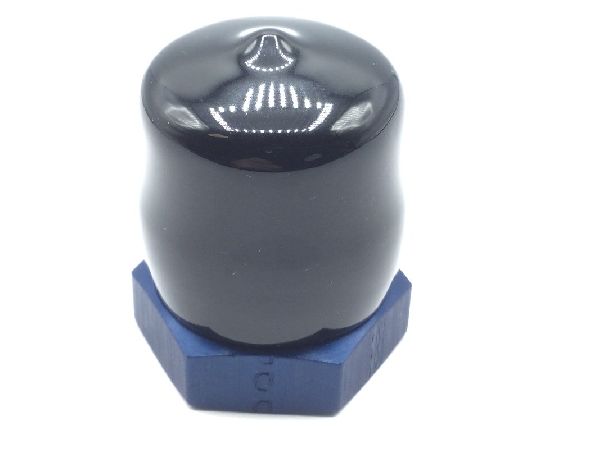

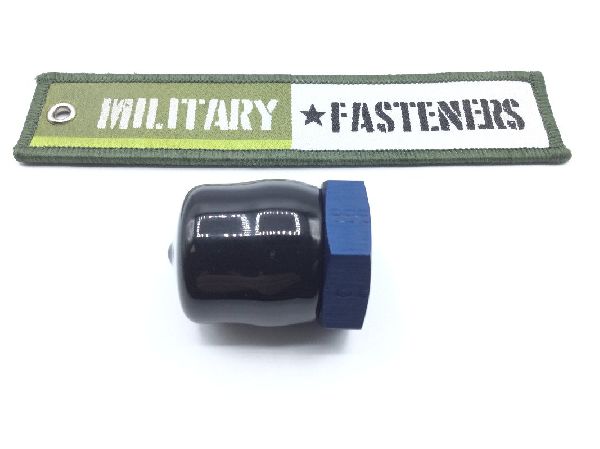

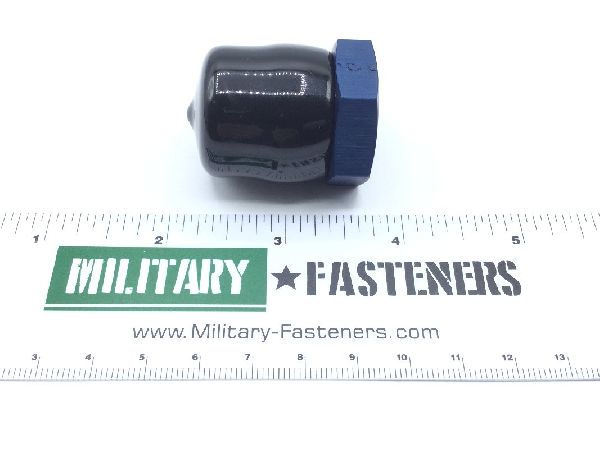

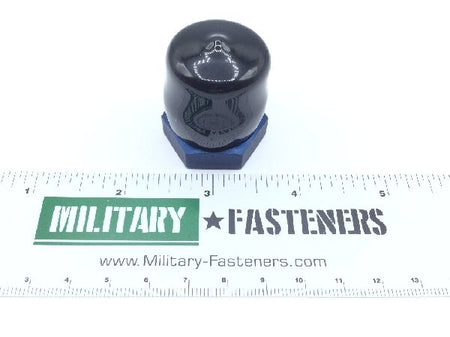

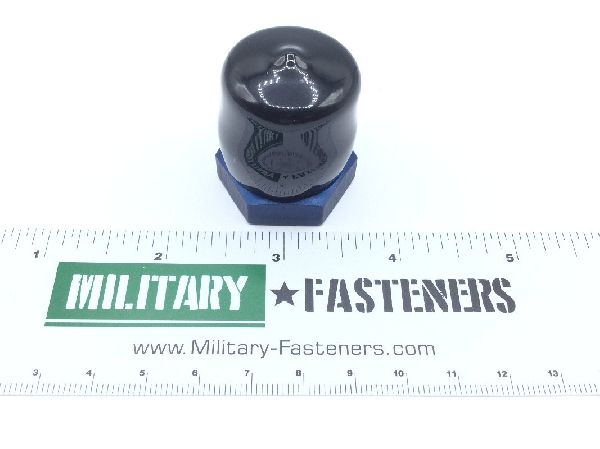

AN806D12 Threaded Tube Fitting Plug

Product Series: AN
ECCN: EAR99
Schedule: 7307.99.4000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2014 or aluminum alloy 7075

Overall Length

Between 1.203 inches and 1.234 inches

Surface Treatment

Blue military specification single treatment response cl 2 type 2 mil-a-8625

Thread Class

3a external

Thread Size

1.062 inches external

Connection Style: Flared
Head Height: 0.341 inches
Iii End Application: Mrap buffalo mk2a2
Material Specification: T73 federal specification 2nd material response t6 federal specification 1st material response or qq-a-367 qq-a-367
Seat Angle: 37.0 degrees
Special Features: Grumman aerospace corporation supports a10 aircraft
Style Designator: Should not be considered as a separating characteristic) tube fitting flared (note: drilled hole is optional plug
Thread Direction: Right-hand external
Thread Qty Per Inch (tpi): 12 external
Thread Series Designator: Un external
