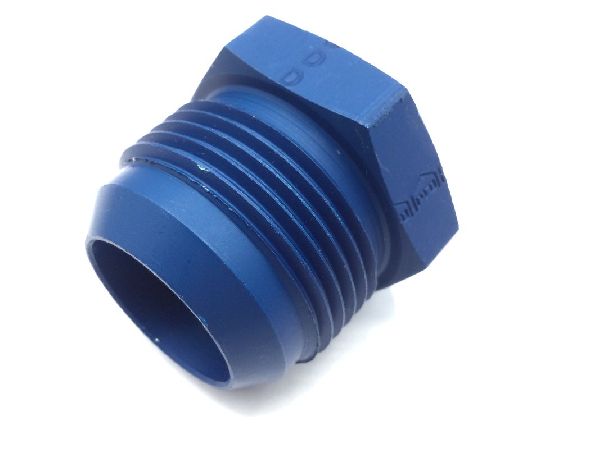

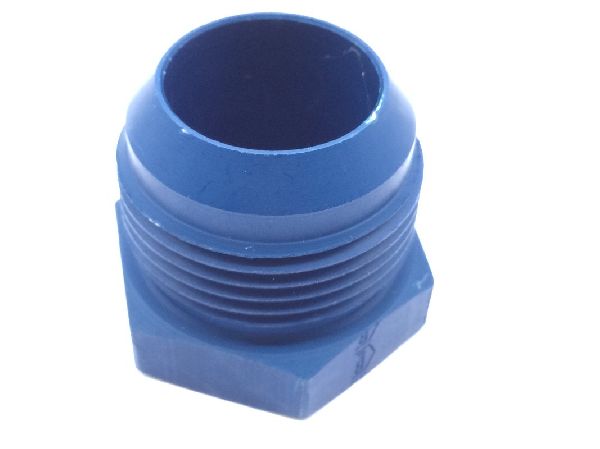

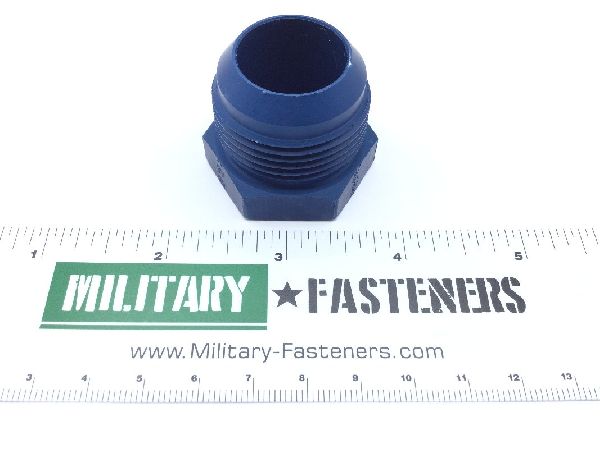

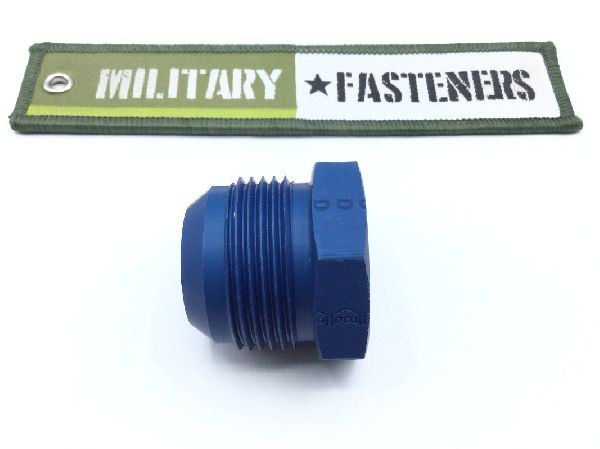

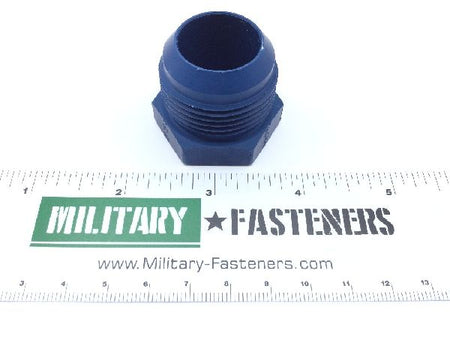

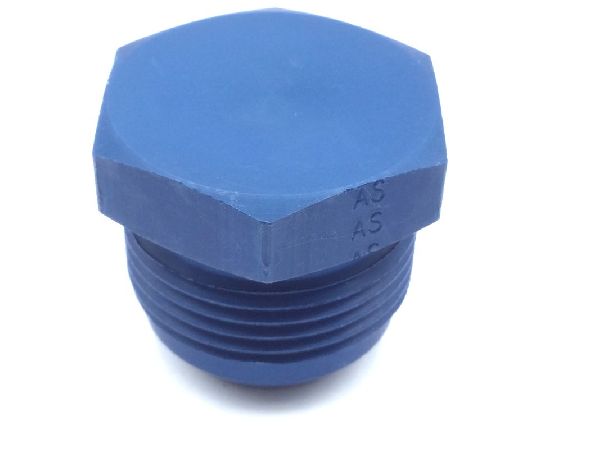

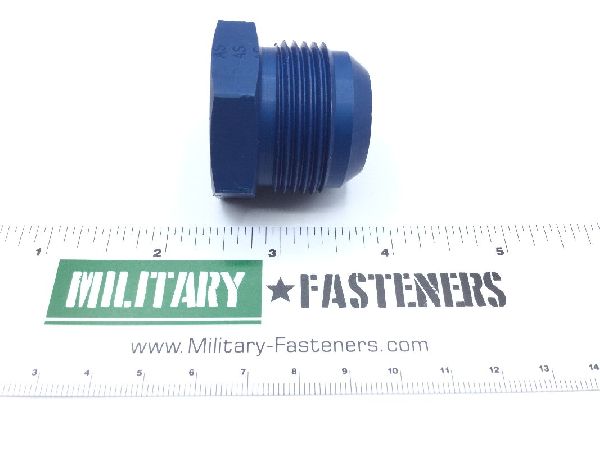

AN806D16 Threaded Tube Fitting Plug

Product Series: AN
ECCN: EAR99
Schedule: 7307.99.4000

Price per Unit $31.50

Units per Pack 2

Price per Pack $63.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $63.00

Add item to quote

Material

Aluminum alloy 2014 or aluminum alloy 2024

Overall Length

Between 0.370 inches and 0.391 inches

Surface Treatment

type 2 cl 2 military specification single treatment response mil-a-8625

Thread Class

3a external

Thread Size

1.312 inches external

Connection Style: Flared
Head Height: Between 0.328 inches and 0.370 inches
Iii End Application: Grumman a-10 aircraft; mrap buffalo mk2a2
Material Specification: T6 federal specification 2nd material response t6 federal specification 1st material response or qq-a-225/6 qq-a-225/4
Seat Angle: 37.0 degrees
Special Features: 0.828 in.id by 0.391 in.deep at bottom drilled hole
Style Designator: Should not be considered as a separating characteristic) tube fitting flared (note: drilled hole is optional plug
Thread Direction: Right-hand external
Thread Qty Per Inch (tpi): 12 external
Thread Series Designator: Un external
