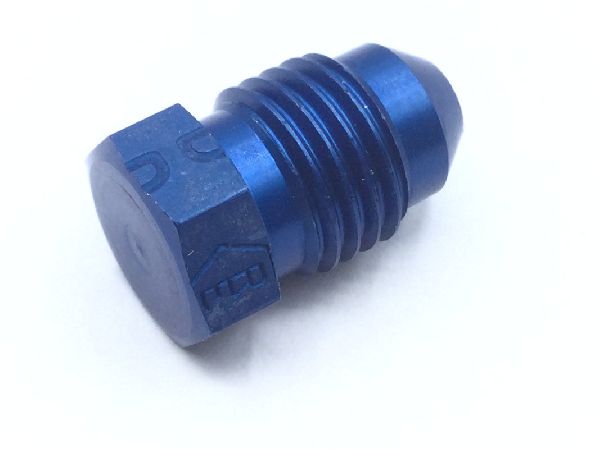

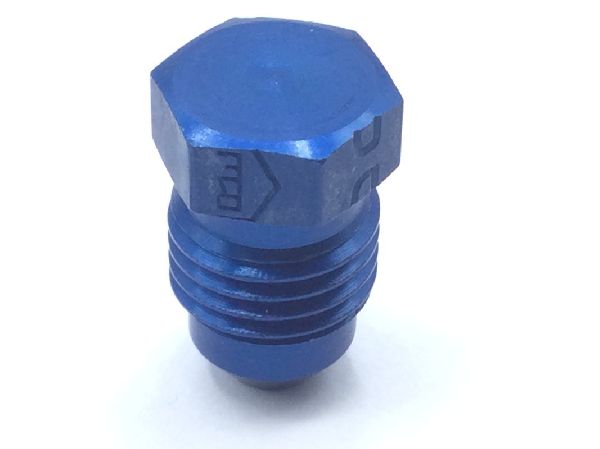

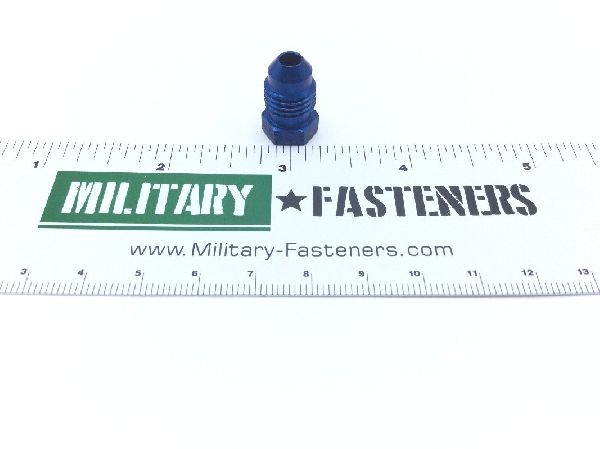

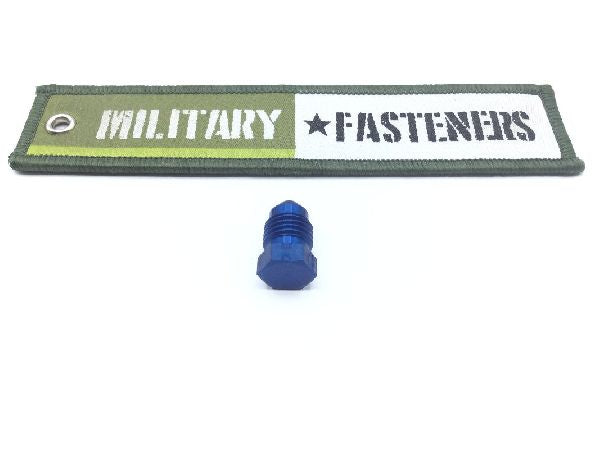

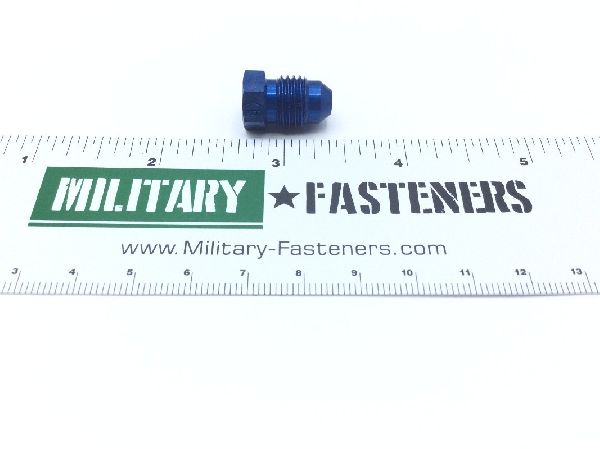

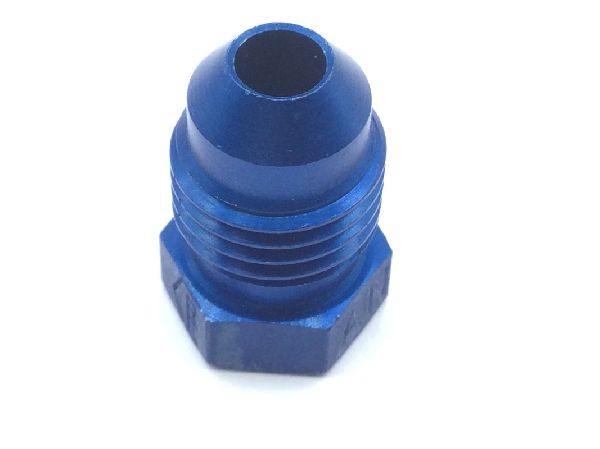

AN806D4 Threaded Tube Fitting Plug

Product Series: AN
ECCN: EAR99
Schedule: 7307.22.5000

Price per Unit $8.24

Units per Pack 5

Price per Pack $41.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $41.20

Add item to quote

Material

Aluminum alloy 2014 or aluminum alloy 2024

Overall Length

0.734 inches

Surface Treatment

Anodized blue military specification single treatment response cl 2 type 2 mil-a-8625

Thread Class

3a external

Thread Size

0.438 inches external

Connection Style: Flared
Head Height: Between 0.145 inches and 0.164 inches
Iii End Application: Grumman a-10 aircraft; mrap buffalo mk2a2
Material Specification: T6 federal specification 2nd material response t6 federal specification 1st material response or qq-a-225/6 qq-a-225/4
Seat Angle: 37.0 degrees
Style Designator: Should not be considered as a separating characteristic) tube fitting flared (note: drilled hole is optional plug
Thread Direction: Right-hand external
Thread Series Designator: Unf (fine thread) external
