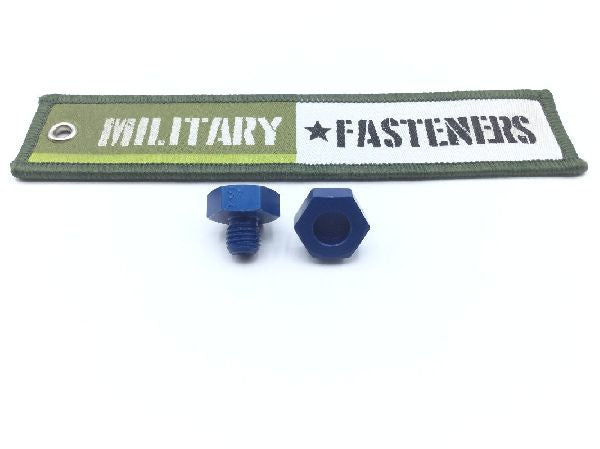

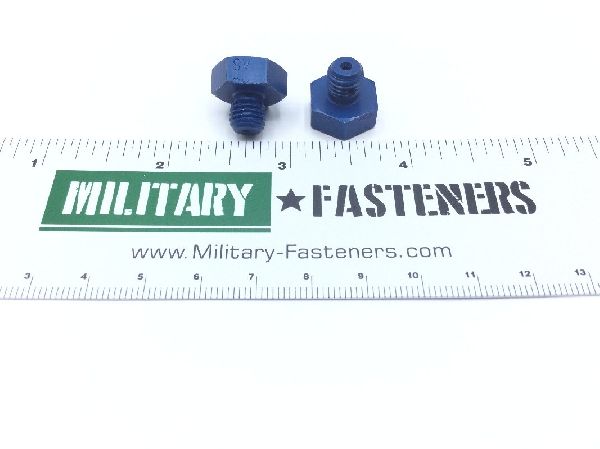

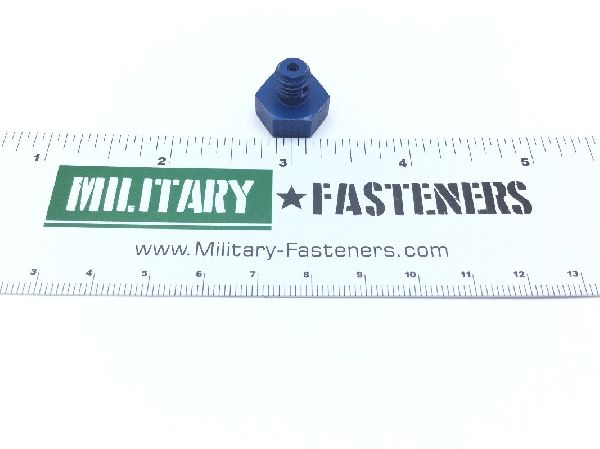

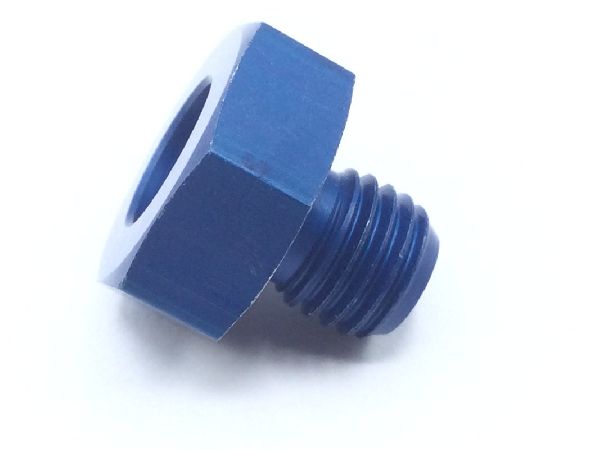

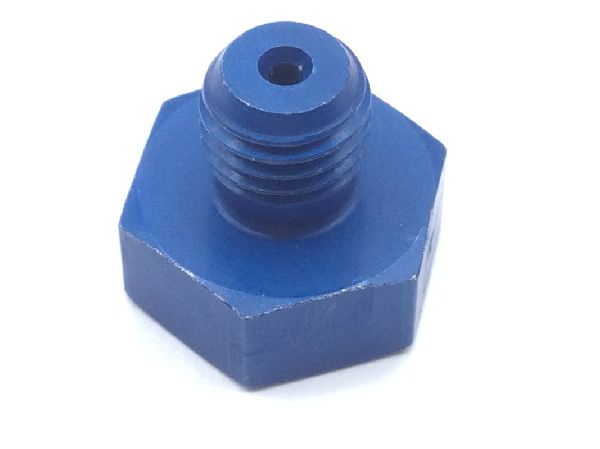

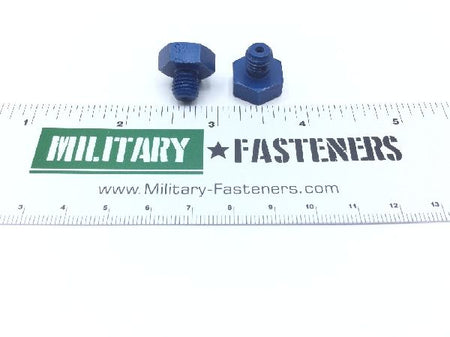

AN814-2D Machine Thread Plug

Product Series: AN
ECCN: EAR99

Price per Unit $8.32

Units per Pack 5

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Material

Aluminum alloy 7075 or aluminum alloy 2014

Overall Length

0.546 inches

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3a external

Thread Size

0.312 inches external

Bleeder Hole Center To Threaded End Distance: 0.156 inches
Bleeder Hole Diameter: 0.062 inches
Body Core Diameter: 0.062 inches
Connection Style: Plain
Core Depth: 0.265 inches
Head Height: 0.234 inches
Material Specification: T851 federal specification 1st material response or qq-a-266 federal specification 2nd material response t6 federal specification 1st material response or qq-a-268 qq-a-268
Style Designator: Machine w/bleeder holes plug
Thread Direction: Right-hand external
Thread Length: 0.249 inches external
Thread Series Designator: Unf (fine thread) external
