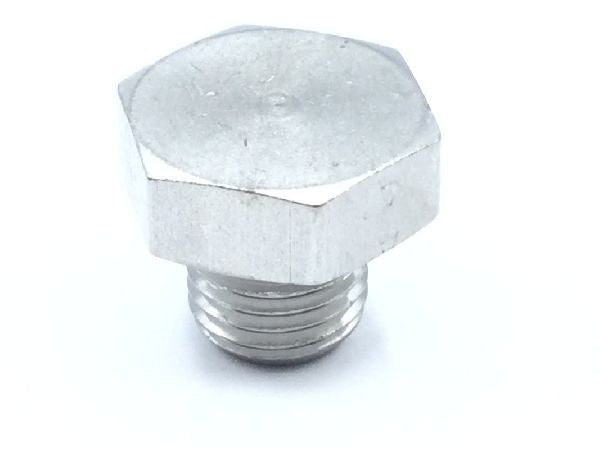

AN814-4J Machine Thread Plug

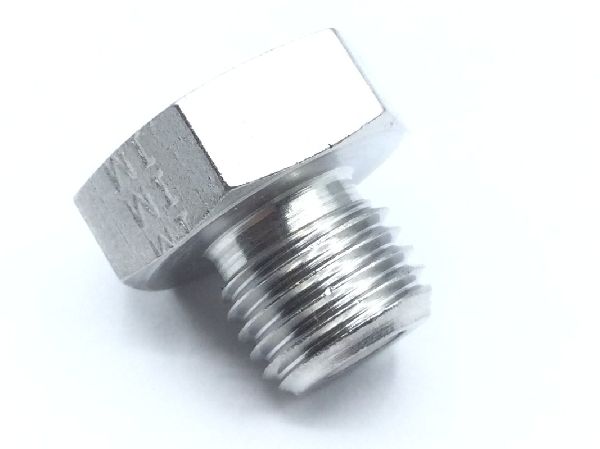

AN814-4J Machine Thread Plug (2)

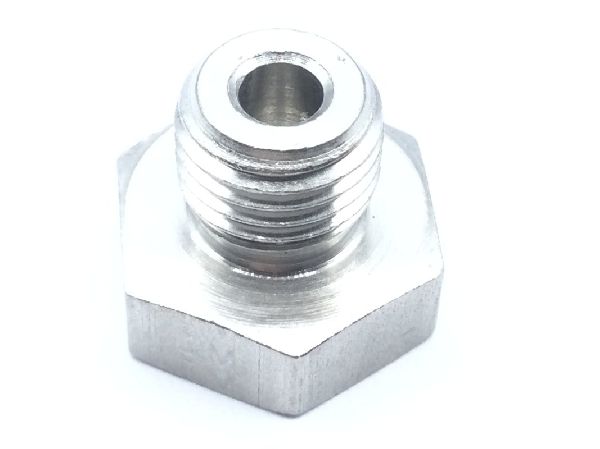

AN814-4J Machine Thread Plug (3)

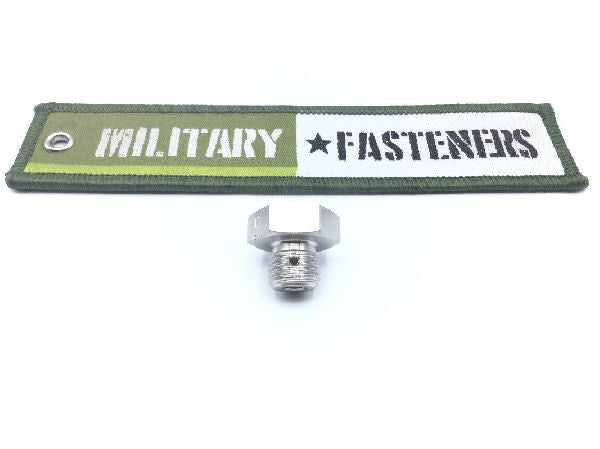

AN814-4J Machine Thread Plug (4)

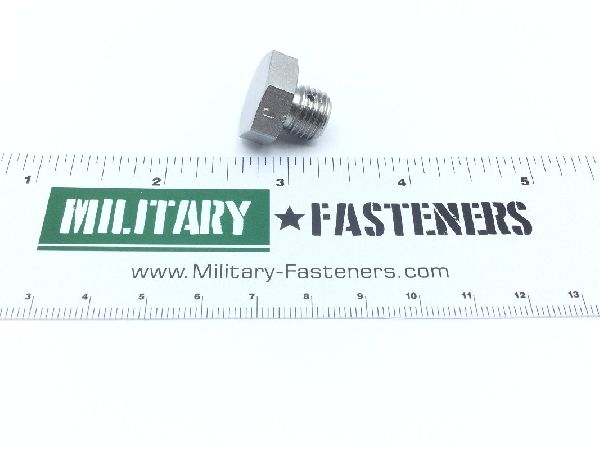

AN814-4J Machine Thread Plug (5)

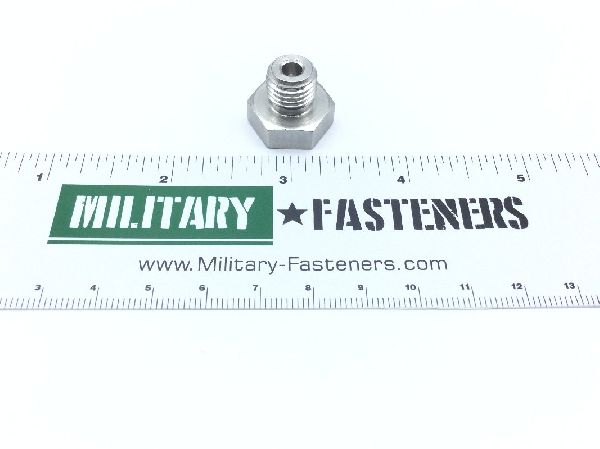

AN814-4J Machine Thread Plug (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN814-4J Machine Thread Plug

Product Series: AN
ECCN: EAR99

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 304

Overall Length

0.625 inches

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

3a external

Thread Size

0.438 inches external

Bleeder Hole Center To Threaded End Distance: 0.187 inches
Bleeder Hole Diameter: 0.062 inches
Body Core Diameter: 0.171 inches
Connection Style: Plain
Core Depth: 0.313 inches
Head Height: 0.250 inches
Material Specification: Cond a federal specification single material response qq-s-763
Style Designator: Machine w/bleeder holes plug
Thread Direction: Right-hand external
Thread Length: 0.300 inches external
Thread Series Designator: Unf (fine thread) external
