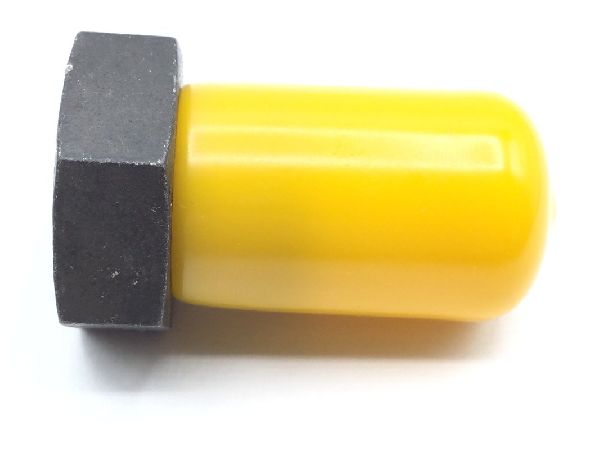

AN814-6 Machine Thread Plug

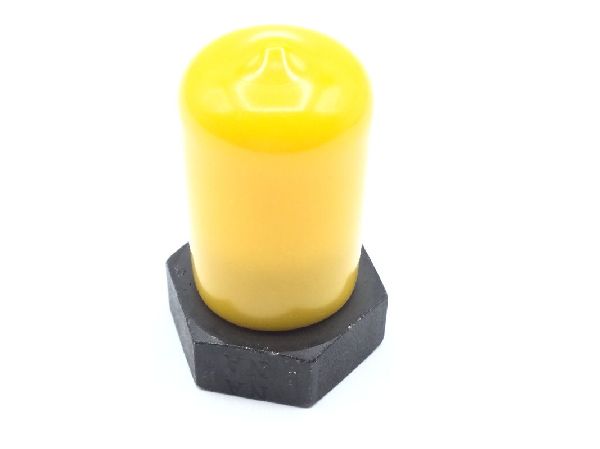

AN814-6 Machine Thread Plug (2)

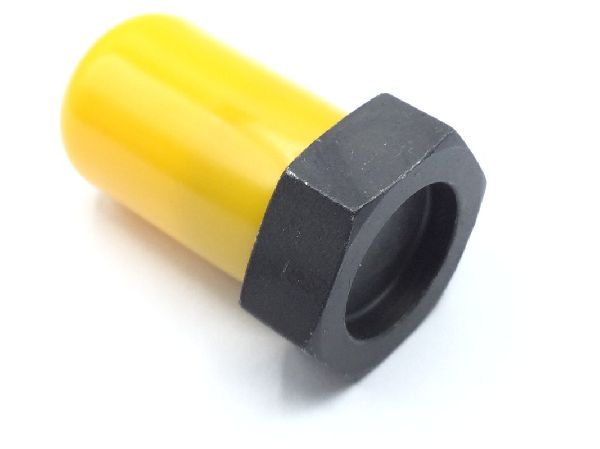

AN814-6 Machine Thread Plug (3)

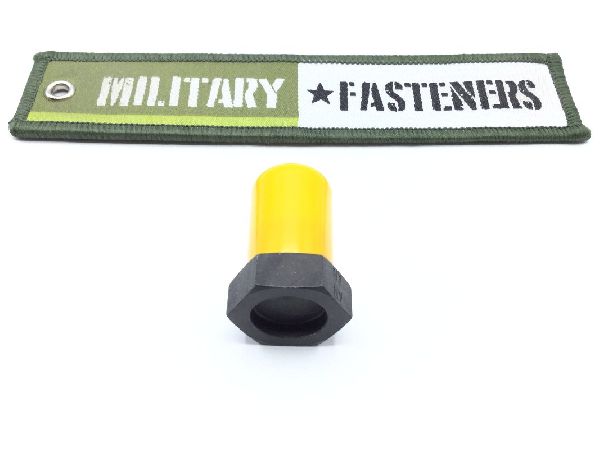

AN814-6 Machine Thread Plug (4)

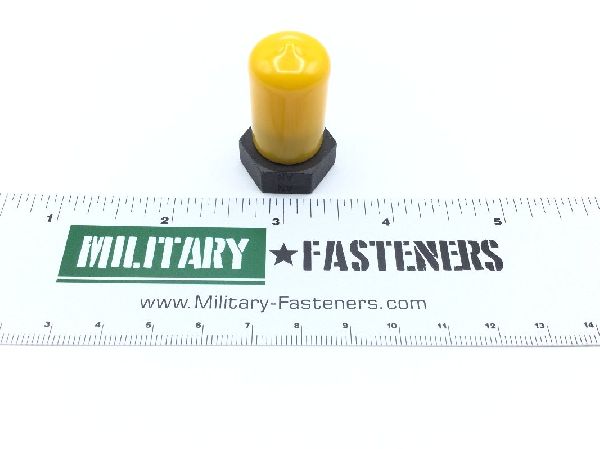

AN814-6 Machine Thread Plug (5)

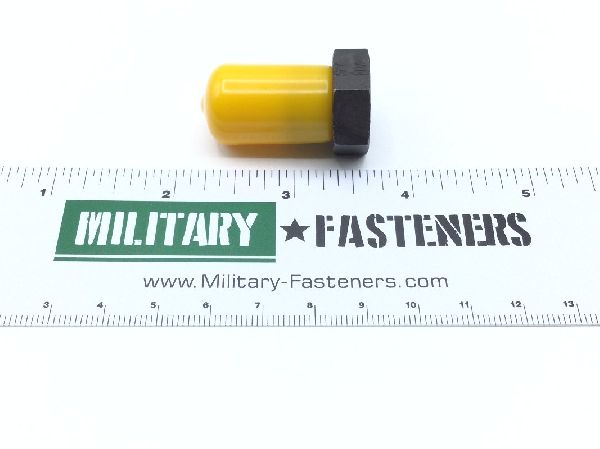

AN814-6 Machine Thread Plug (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN814-6 Machine Thread Plug

Product Series: AN
ECCN: 9A991

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Overall Length

0.719 inches

Thread Class

3a external

Thread Size

0.562 inches external

Bleeder Hole Center To Threaded End Distance: Between 0.188 inches and 0.25 inches
Bleeder Hole Diameter: 0.062 inches
Body Core Diameter: 0.296 inches
Connection Style: Plain
Core Depth: Between 0.343 inches and 0.359 inches
Head Height: 0.297 inches
Seat Angle: 45 degrees
Style Designator: With bleeder holes plug
Thread Direction: Right-hand external
Thread Length: 0.388 inches external
Thread Series Designator: Unf (fine thread) external
