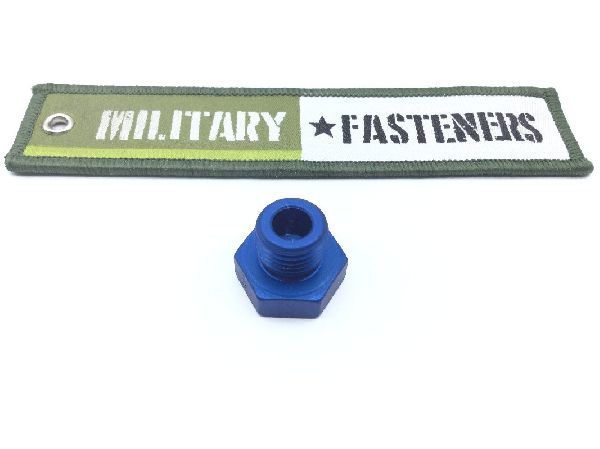

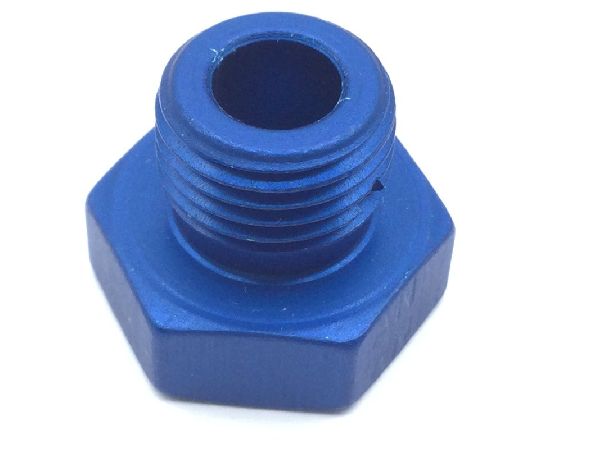

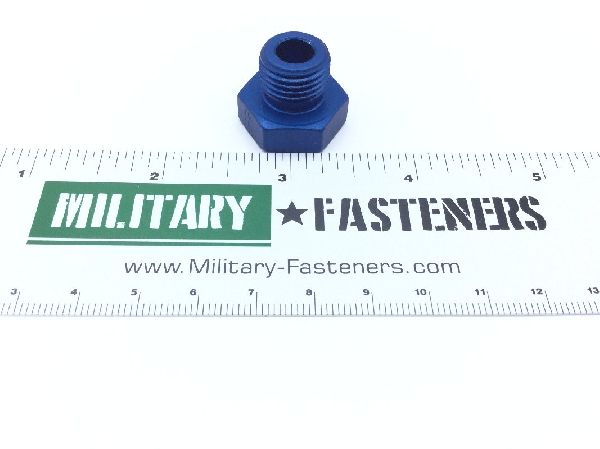

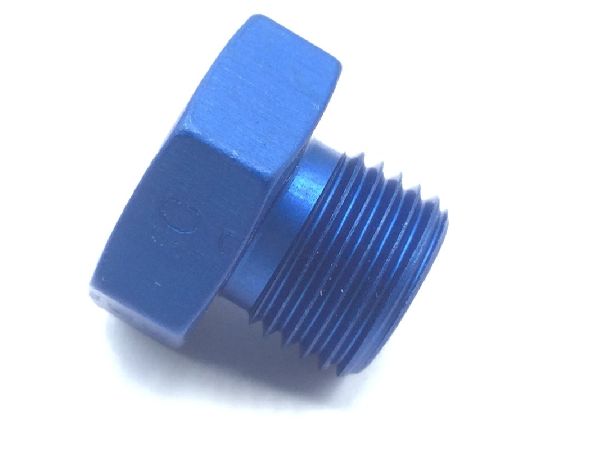

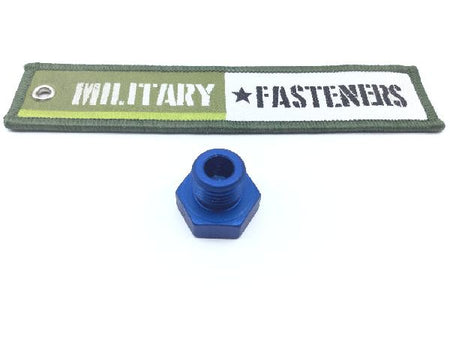

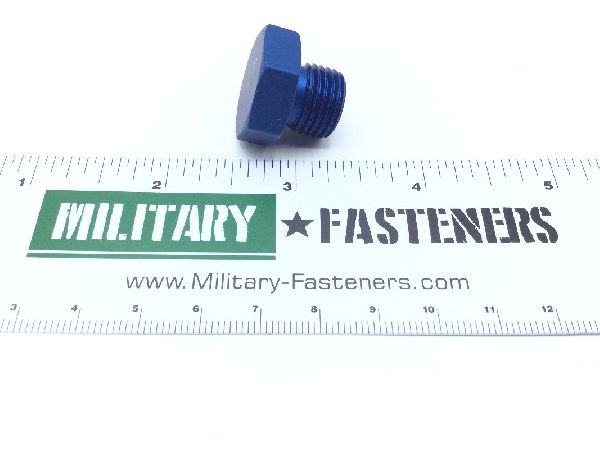

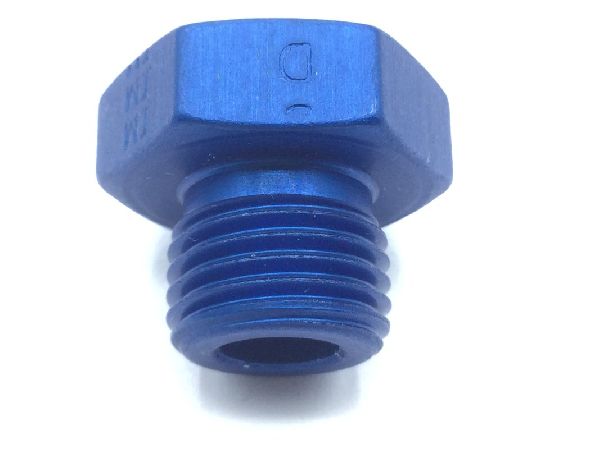

AN814-6D Machine Thread Plug

Product Series: AN
ECCN: EAR99

Price per Unit $6.25

Units per Pack 5

Price per Pack $31.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $31.25

Add item to quote

Material

Aluminum alloy 2014 or aluminum alloy 2024

Overall Length

0.719 inches

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3a external

Thread Size

0.562 inches external

Bleeder Hole Center To Threaded End Distance: Between 0.188 inches and 0.25 inches
Bleeder Hole Diameter: 0.062 inches
Body Core Diameter: 0.296 inches
Connection Style: Plain
Core Depth: Between 0.343 inches and 0.359 inches
Head Height: 0.297 inches
Material Specification: T851 federal specification 2nd material response t6 federal specification 2nd material response or qq-a-225/6 t6 federal specification 1st material response or qq-a-225/6 qq-a-225/4
Style Designator: Machine with bleeder holes plug
Thread Direction: Right-hand external
Thread Length: 0.324 inches external and 0.339 inches external
Thread Series Designator: Unf (fine thread) external
