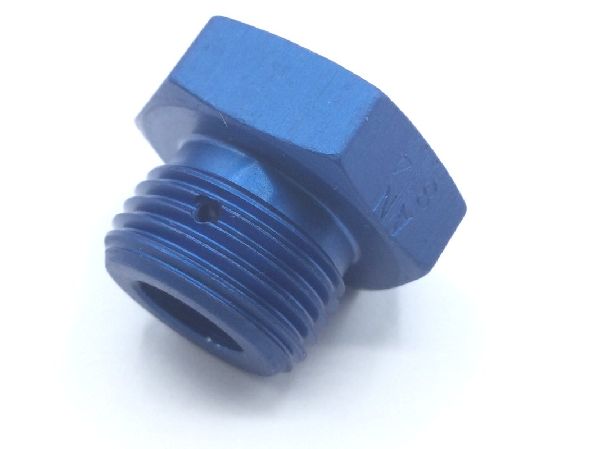

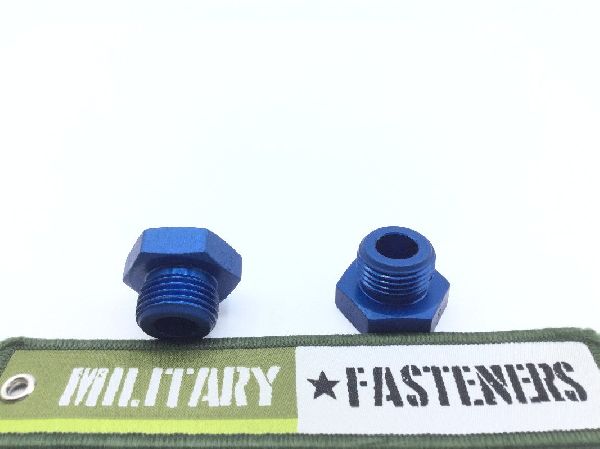

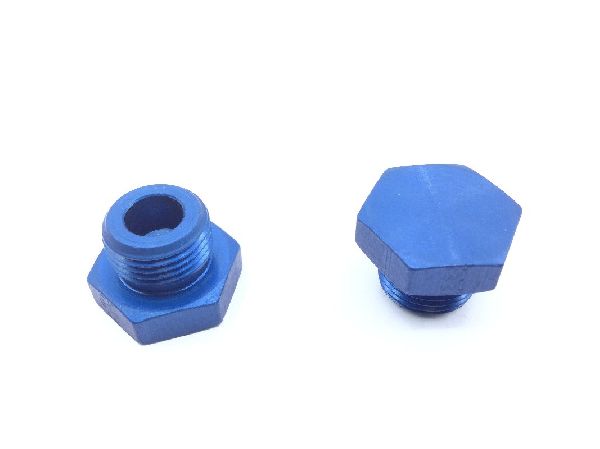

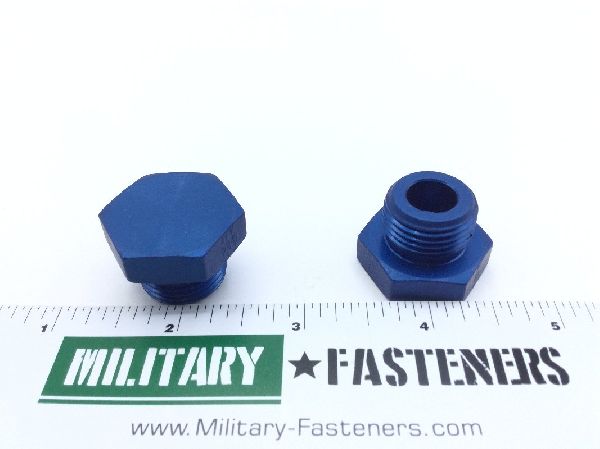

AN814-8D Machine Thread Plug

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $16.75

Units per Pack 2

Price per Pack $33.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $33.50

Add item to quote

Material

Aluminum alloy 2024

Overall Length

0.781 inches

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3a external

Thread Size

0.750 inches external

Bleeder Hole Center To Threaded End Distance: Between 0.219 inches and 0.281 inches
Bleeder Hole Diameter: 0.062 inches
Body Core Diameter: 0.390 inches
Connection Style: Plain
Core Depth: Between 0.343 inches and 0.359 inches
Head Height: 0.312 inches
Material Specification: Qq-a-225/6 federal specification single material response
Style Designator: Machine with bleeder holes plug
Thread Direction: Right-hand external
Thread Length: 0.375 inches external
Thread Series Designator: Unf (fine thread) external
