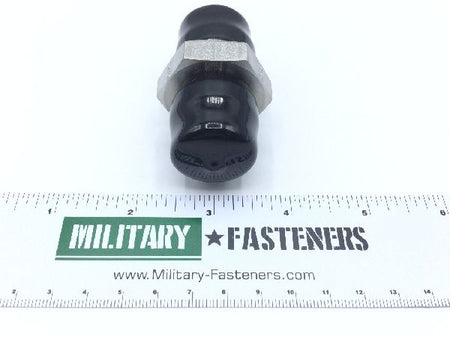

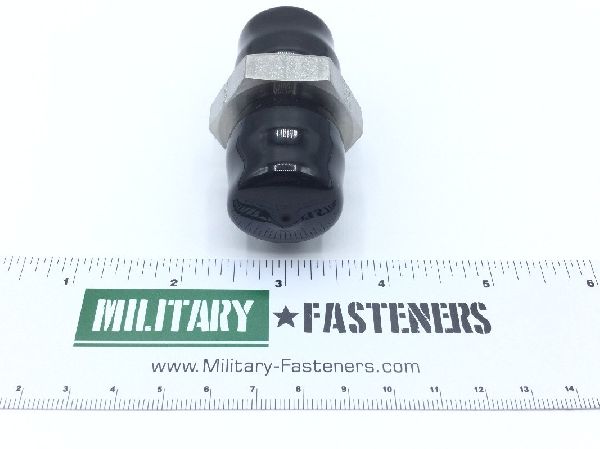

AN815-12J Tube Nipple

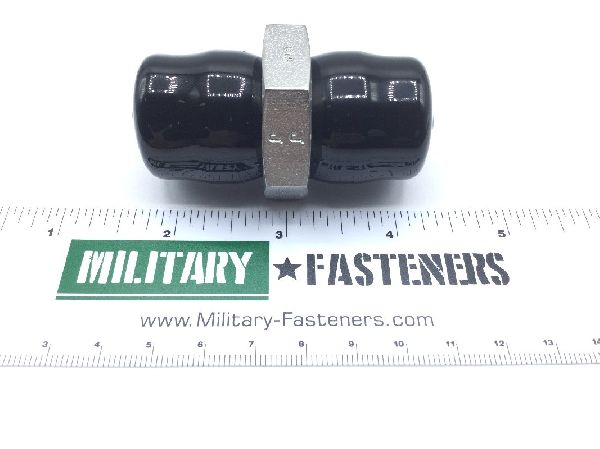

AN815-12J Tube Nipple (2)

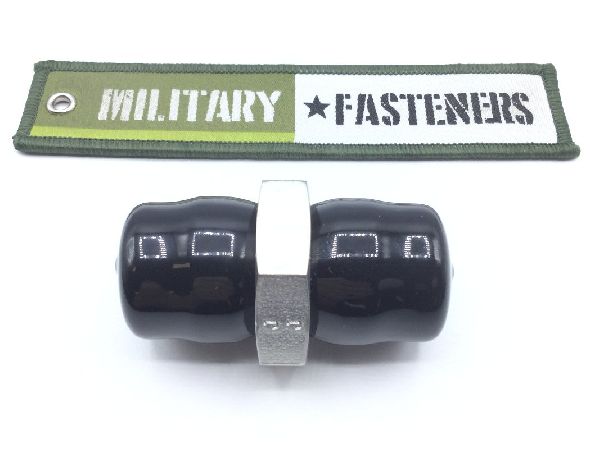

AN815-12J Tube Nipple (3)

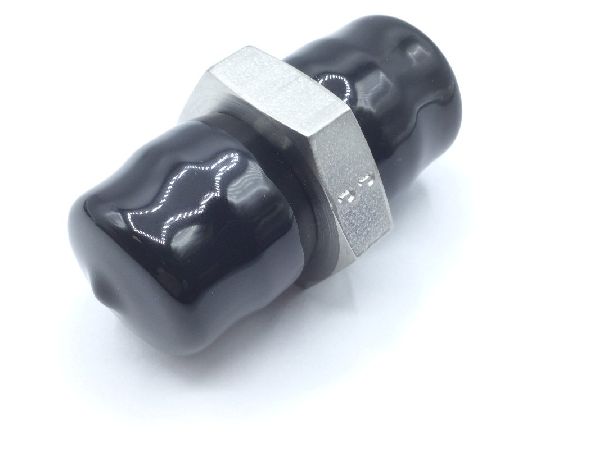

AN815-12J Tube Nipple (4)

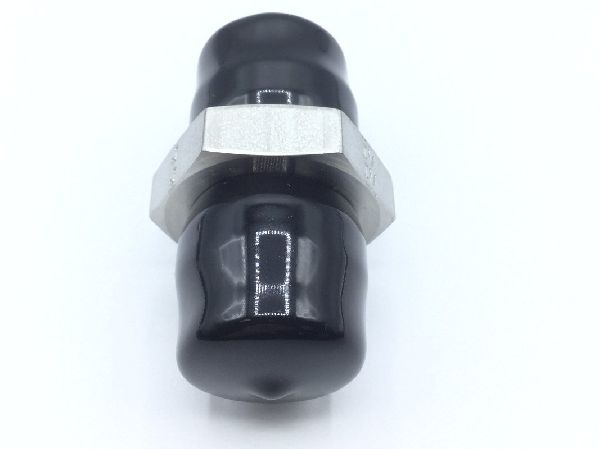

AN815-12J Tube Nipple (5)

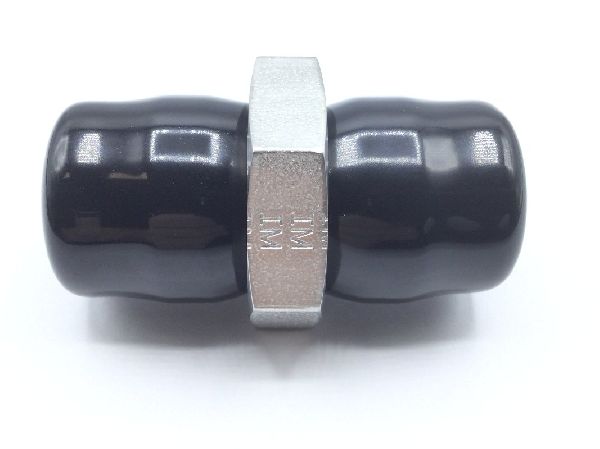

AN815-12J Tube Nipple (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN815-12J Tube Nipple

Product Series: AN
ECCN: EAR99
Schedule: 4016.99.6000

Price per Unit $63.30

Units per Pack 1

Price per Pack $63.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $63.30

Add item to quote

Material

Steel comp 304

Thread Class

3a 1st end

Thread Size

1.062 inches 1st end

Connection Style: Flared (tube) 1st end
Connection Type: Threaded external tube 1st end
Material Specification: 66 federal standard single material response
Nominallength: 2.109 inches
Outside Diameter Tube Accommodated: 0.750 inches 1st end
Seat Angle: 37.0 degrees 1st end
Style Designator: Flared w/ center wrenching facility
Thread Qty Per Inch (tpi): 12 1st end
Thread Series Designator: Un 1st end
