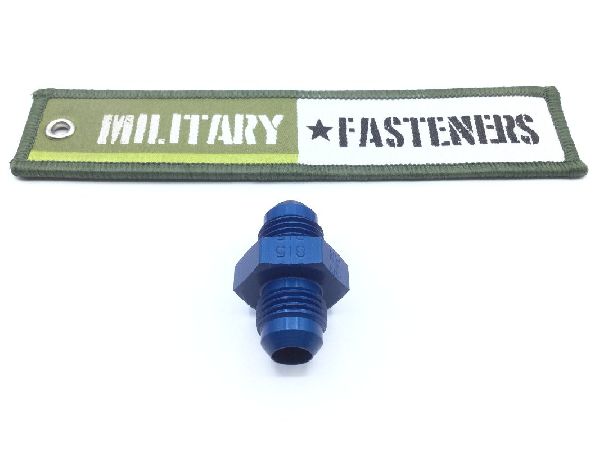

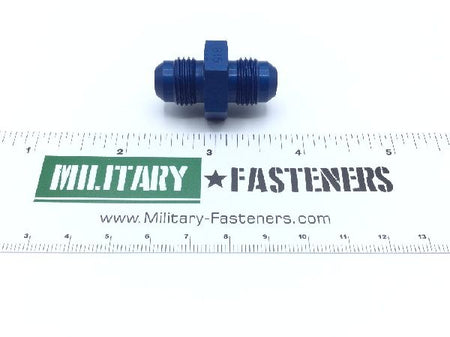

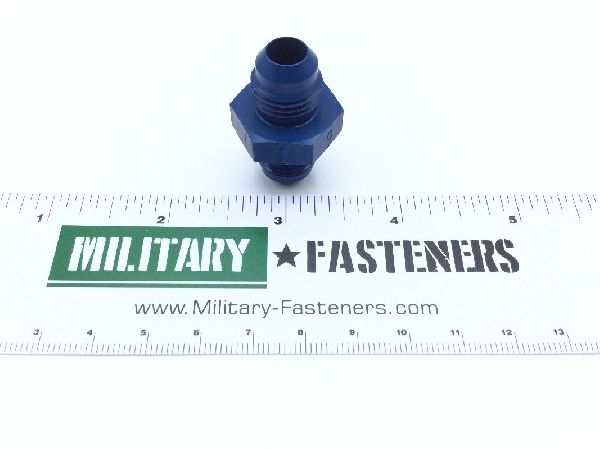

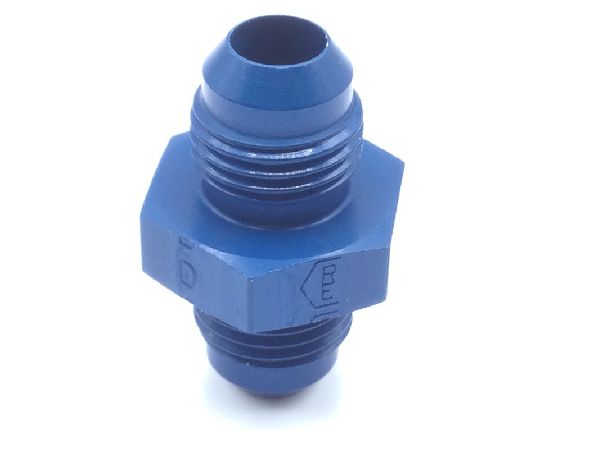

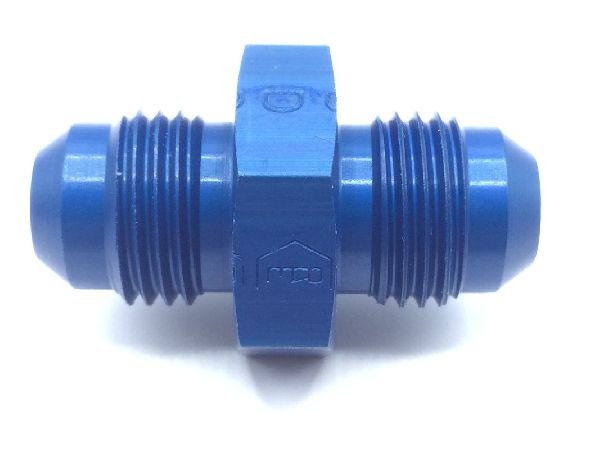

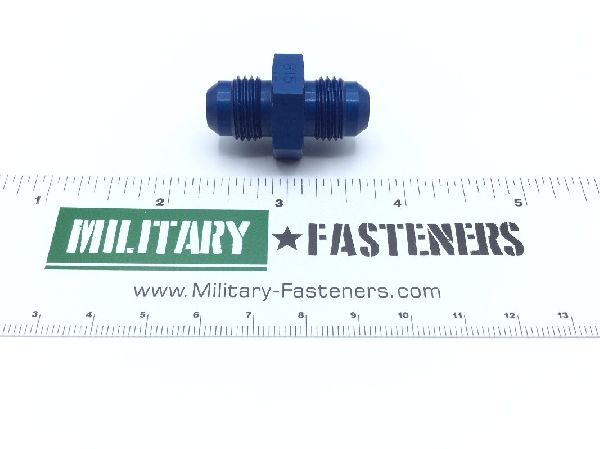

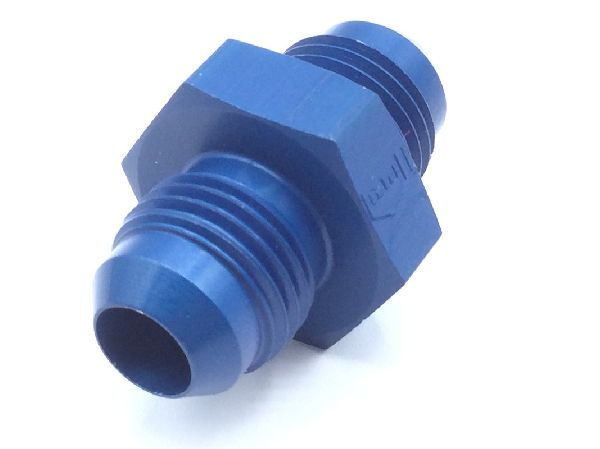

AN815-6D Boss Nipple

Product Series: AN
ECCN: EAR99
Schedule: 4016.99.6000

Price per Unit $11.55

Units per Pack 5

Price per Pack $57.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $57.75

Add item to quote

Material

Aluminum alloy 2014 or aluminum alloy 2024 or aluminum alloy 7075

Thread Class

3a all ends

Thread Size

0.562 inches all ends

Connection Style: Flared w/ gasket seal (boss) all ends
Connection Type: Threaded external boss all ends
End Application: Grumman a10 aircraft
Furnished Items And Quantity: 2 preformed packing
Material Specification: T73 federal specification single material response t6 or t851 federal specification single material response or qq-a-225/9 t6 federal specification single material response or qq-a-225/6 qq-a-225/4
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Media For Which Designed: Air 1st response
Nominallength: 1.375 inches
Specification Data: 96906-ms24392 government standard
Style Designator: Flared w/ center wrenching facility
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
