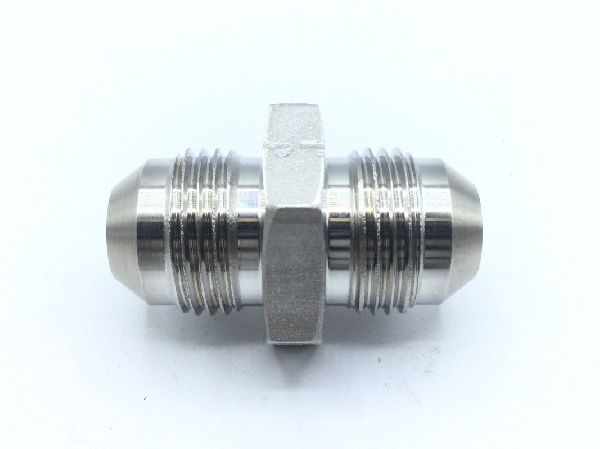

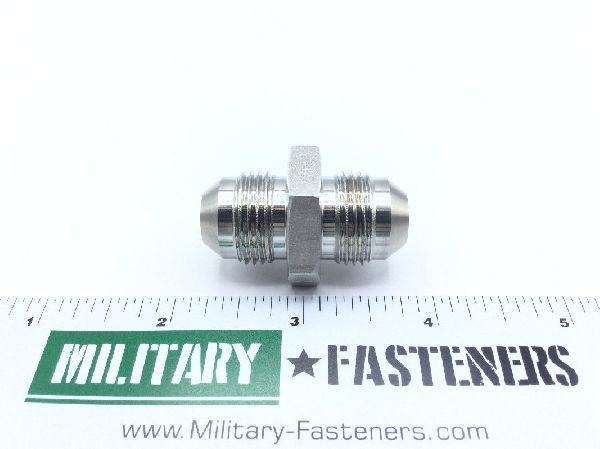

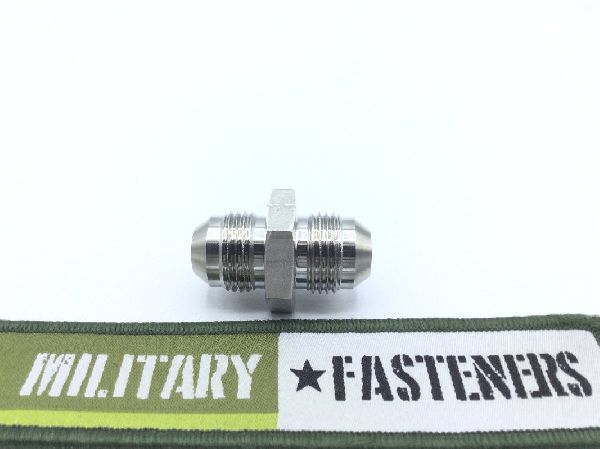

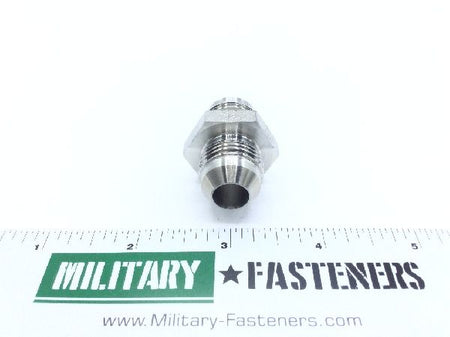

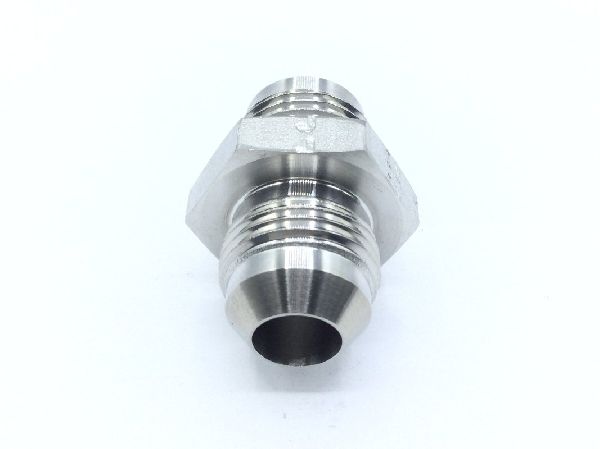

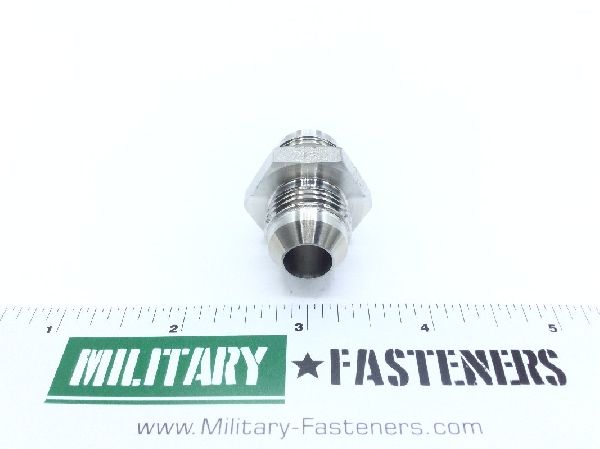

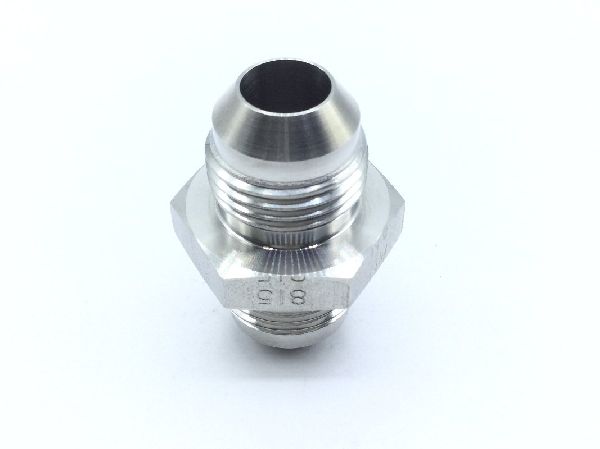

AN815-8J Boss Nipple

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $99.78

Units per Pack 1

Price per Pack $99.78

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $99.78

Add item to quote

Material

Steel

Surface Treatment

type 2 military specification single treatment response outside e300 mil-f-14072

Thread Class

3a all ends

Thread Size

0.750 inches all ends

Connection Style: Flared w/ gasket seal (boss) all ends
Connection Type: Threaded external tube all ends
Material Specification: 66 federal standard single material response
Nominallength: 1.288 inches
Outside Diameter Tube Accommodated: 0.500 inches all ends
Part Name Assigned By Controlling Agency: Flared tube union
Seat Angle: 37.0 degrees all ends
Special Features: Drilled in center hex section; center wrenching facility suitable for gasket application 0.0625 in.dia three holes
Style Designator: Flared w/ center wrenching facility
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
