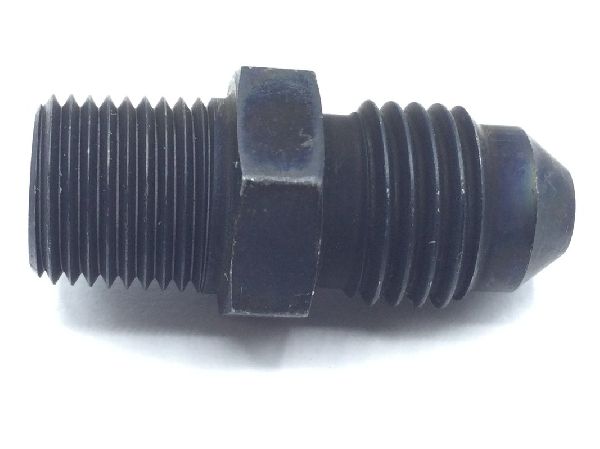

AN816-4 Straight Pipe To Tube Adapter

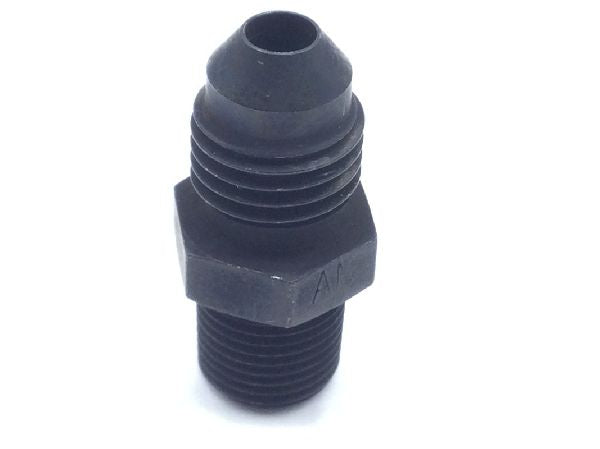

AN816-4 Straight Pipe To Tube Adapter (2)

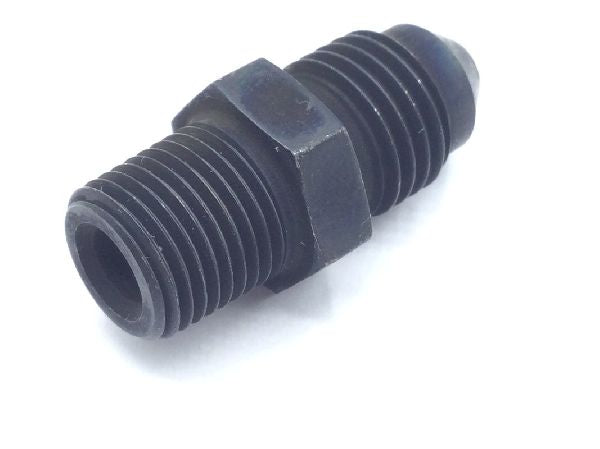

AN816-4 Straight Pipe To Tube Adapter (3)

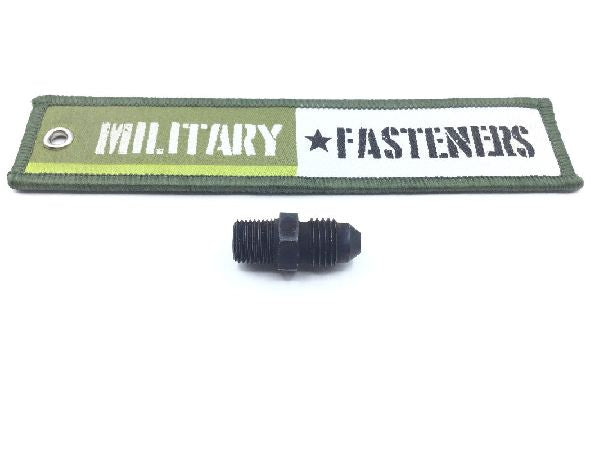

AN816-4 Straight Pipe To Tube Adapter (4)

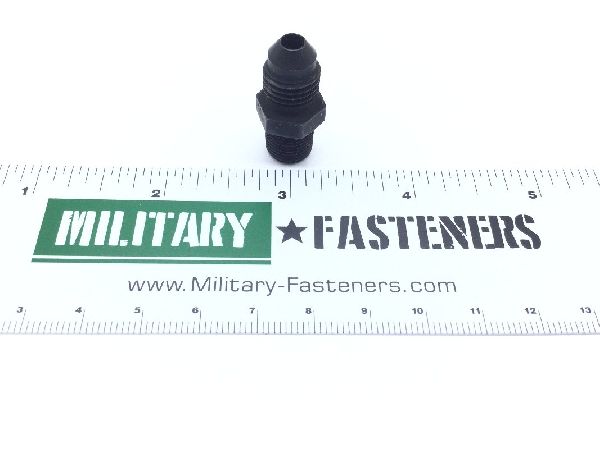

AN816-4 Straight Pipe To Tube Adapter (5)

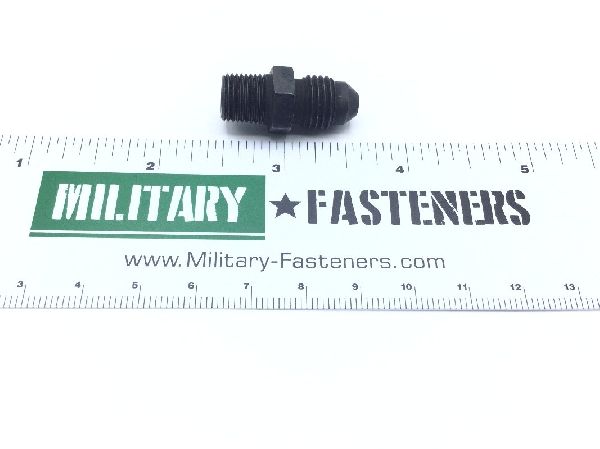

AN816-4 Straight Pipe To Tube Adapter (6)
AN816-4 Straight Pipe To Tube Adapter
AN816-4 Straight Pipe To Tube Adapter (2)
AN816-4 Straight Pipe To Tube Adapter (3)
AN816-4 Straight Pipe To Tube Adapter (4)
AN816-4 Straight Pipe To Tube Adapter (5)
AN816-4 Straight Pipe To Tube Adapter (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN816-4 Straight Pipe To Tube Adapter

Product Series
AN
ECCN
EAR99
Schedule
7307.22.5000
Price per Unit $25.20
Units per Pack 2
Price per Pack $50.40
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:
Total Packs 1
Total Price $50.40
Add item to quote
Material
Steel
Surface Treatment
J514 assn standard single treatment response
Thread Class
2a 1st end
Thread Size
0.125 inches 2nd end
Connection Style
Plain (pipe) 2nd end
Connection Type
Threaded external tube 1st end
End Application
air launc (coarse thread)h cruise (alcm) agm-86b 36f missile
Maximum Operating Pressure
3000.0 pounds per square inch single response
Maximum Operating Temp
400.0 degrees fahrenheit single response
Nominallength
1.220 inches
Nondefinitive Specification/std Data
2a figure
Outside Diameter Tube Accommodated
0.250 inches 1st end
Seat Angle
37.0 degrees 1st end
Specification Data
81343-as4842/1 professional/industrial association standard and 88044-an816 government standard and 81343-j514 professional/industrial association standard
Thread Series Designator
Unjf (fine thread with external controlled root radius) 1st end
