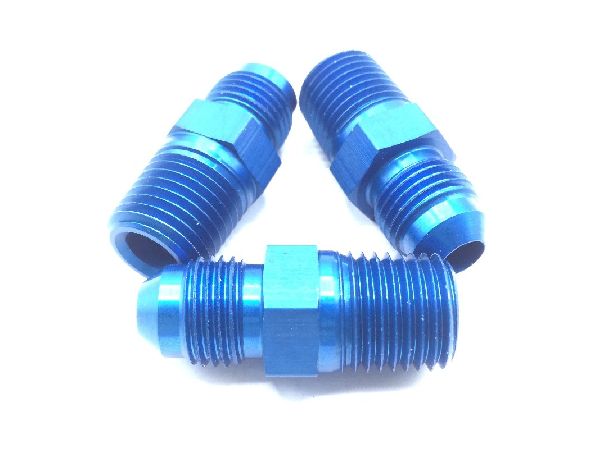

AN816-5-4D Straight Pipe to Tube Adapter

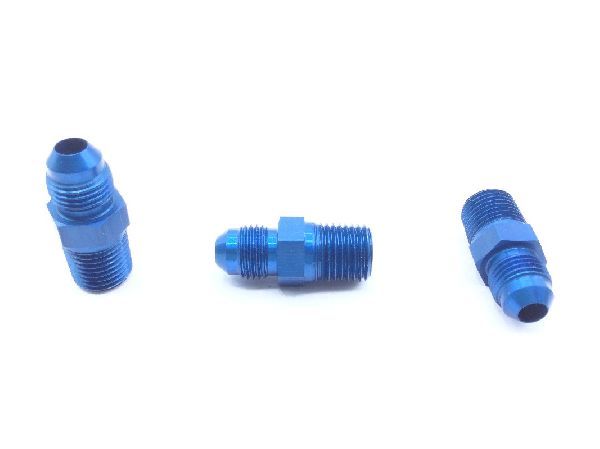

AN816-5-4D Straight Pipe to Tube Adapter (2)

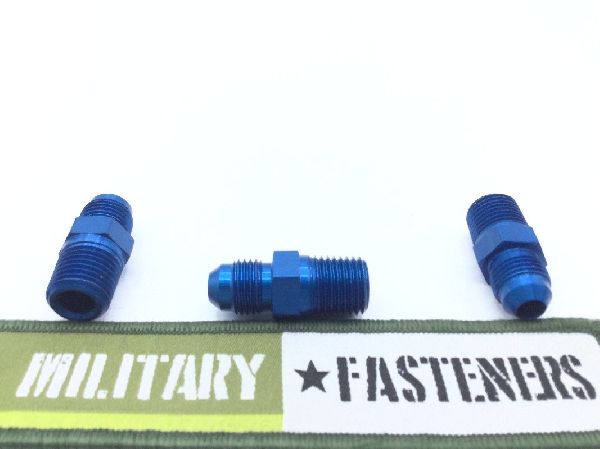

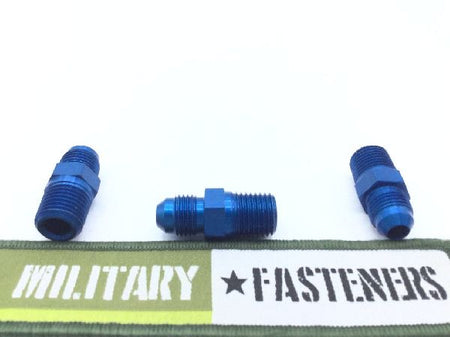

AN816-5-4D Straight Pipe to Tube Adapter (3)

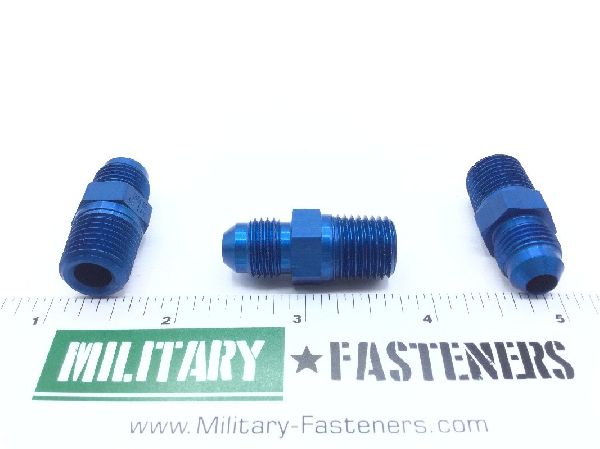

AN816-5-4D Straight Pipe to Tube Adapter (4)

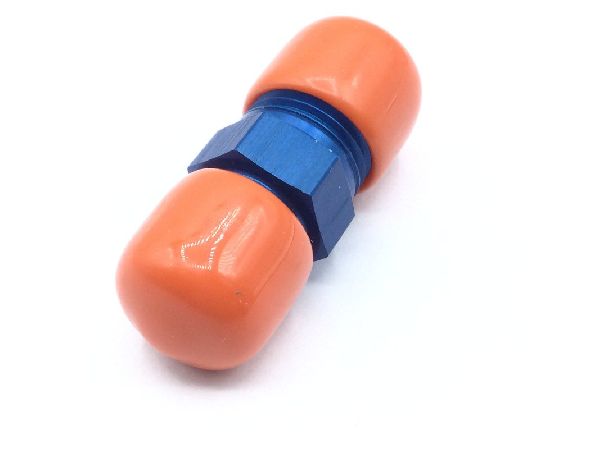

AN816-5-4D Straight Pipe to Tube Adapter (5)

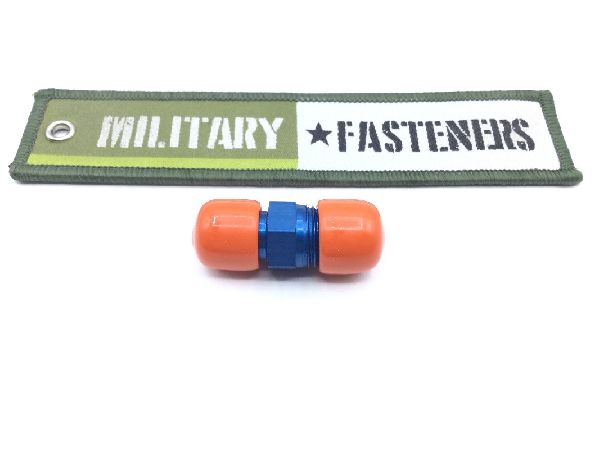

AN816-5-4D Straight Pipe to Tube Adapter (6)
AN816-5-4D Straight Pipe to Tube Adapter
AN816-5-4D Straight Pipe to Tube Adapter (2)
AN816-5-4D Straight Pipe to Tube Adapter (3)
AN816-5-4D Straight Pipe to Tube Adapter (4)
AN816-5-4D Straight Pipe to Tube Adapter (5)
AN816-5-4D Straight Pipe to Tube Adapter (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN816-5-4D Straight Pipe to Tube Adapter

Product Series
AN
ECCN
EAR99
Schedule
7326.90.8695
Price per Unit $17.67
Units per Pack 5
Price per Pack $88.35
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $88.35
Add item to quote
Material
Aluminum alloy 2014
Surface Treatment
Cl 2 military specification single treatment response type 2 mil-a-8625
Thread Class
3a 1st end
Thread Size
0.250 inches 2nd end
Connection Style
Plain (pipe) 2nd end
Connection Type
Threaded external tube 1st end
End Application
Grumman a-10 acft
Material Specification
T6 federal specification single material response qq-a-225/4
Maximum Operating Temp
-65.0 degrees fahrenheit 2nd response
Media For Which Designed
gaseous 2nd response oxygen
Nominallength
1.375 inches
Outside Diameter Tube Accommodated
0.312 inches 1st end
Seat Angle
37.0 degrees 1st end
Specification Data
81343-as4842/1 professional/industrial association standard and 88044-an816 government standard
Thread Series Designator
Unjf (fine thread with external controlled root radius) 1st end
