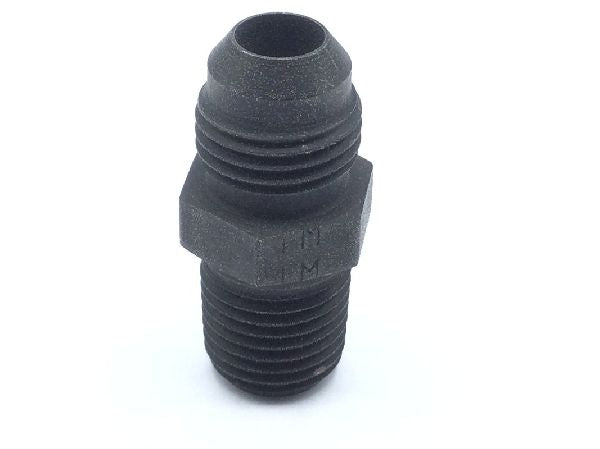

AN816-6 Straight Pipe To Boss Adapter (2)

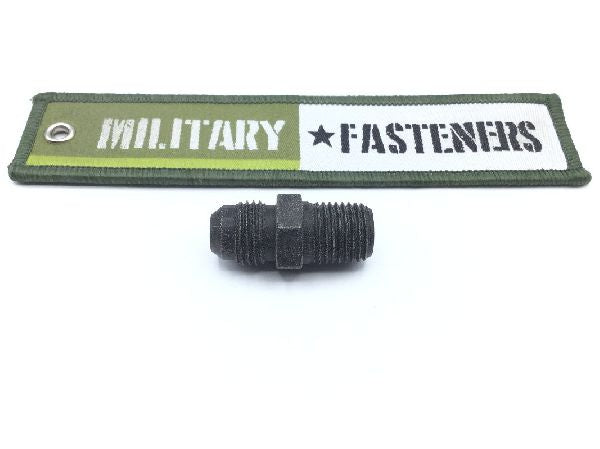

AN816-6 Straight Pipe To Boss Adapter (3)

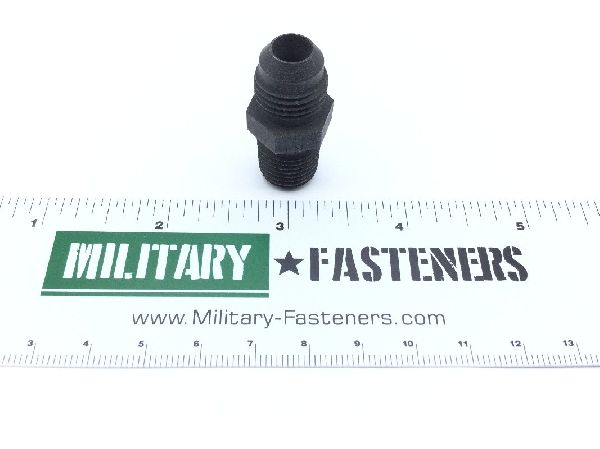

AN816-6 Straight Pipe To Boss Adapter (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

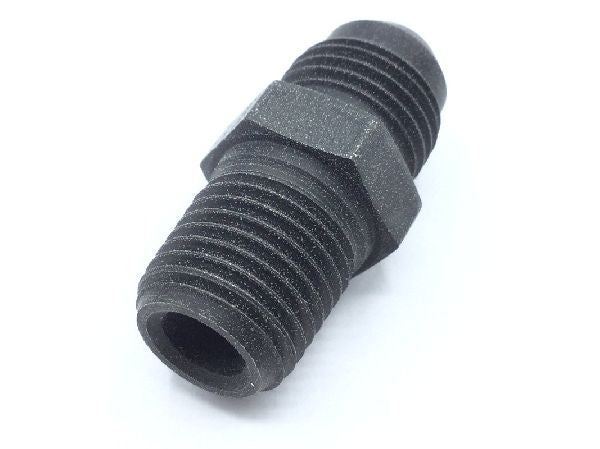

AN816-6 Straight Pipe To Boss Adapter

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $18.48

Units per Pack 5

Price per Pack $92.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $92.40

Add item to quote

Material

Steel comp 4130 or steel comp 4140

Surface Treatment

class 2 federal specification 1st treatment response and as4842/1 assn standard 2nd treatment response type 2 qq-p-416

Thread Class

3a all ends

Thread Size

0.563 inches all ends

Connection Style: Plain (pipe) 2nd end
Connection Type: Threaded internal tube 1st end
Length: 1.375 inches all ends
Material Specification: Ams-s-6758 assn standard 1st material response or ams6370 assn standard 1st material response and ams6382 assn standard 2nd material response
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Nominallength: 1.375 inches
Outside Diameter Tube Accommodated: 0.375 inches 1st end
Pipe Size Accommodated: 0.250 inches 2nd end
Seat Angle: 45.0 degrees 1st end
Thread Qty Per Inch (tpi): 18 all ends
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
