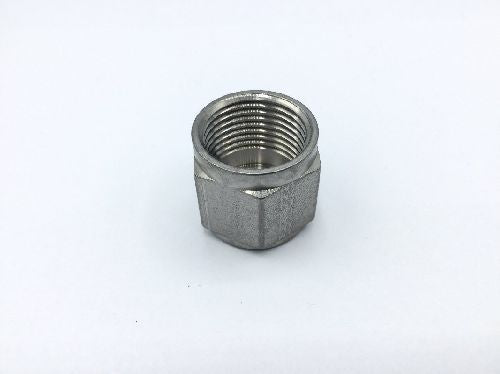

AN818-10J Tube Coupling Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.875 inches

End Application: Used on communications satellite terminal model an/tsc-54 and on f-16 and f-18 aircraft
Fabrication Method: Machined
Length To Shoulder: 0.817 inches
Nut Height: Between 0.969 inches and 0.979 inches
Nut Style: Tube coupling
Smallest Inside Diameter: 0.698 inches
Specification Data: 88044-an818 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 14
Tube Outside Diameter: 0.625 inches
Width Across Flats: Between 0.996 inches and 1.003 inches
