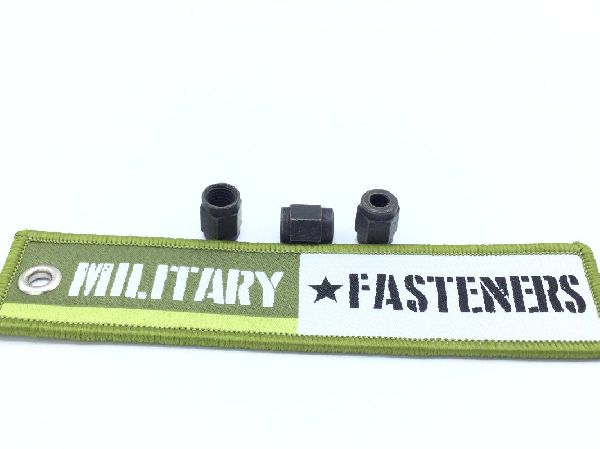

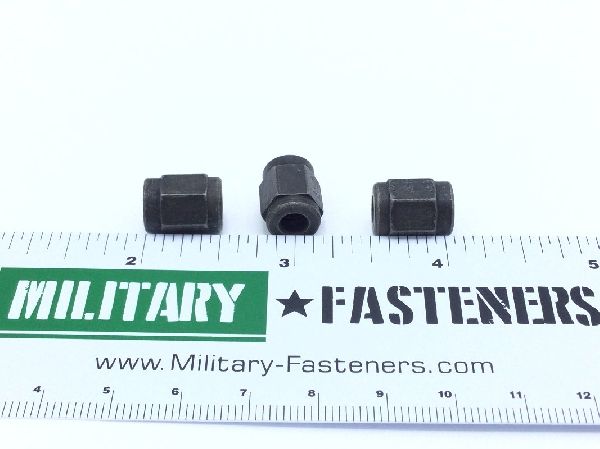

AN818-2 Tube Coupling Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $10.39

Units per Pack 5

Price per Pack $51.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $51.95

Add item to quote

Material

Steel comp 1137 or steel comp 1141

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.312 inches

Fabrication Method: Machined or forged
Length To Shoulder: 0.460 inches
Material Specification: Qq-s-637 federal specification single material response
Nut Height: 0.531 inches
Nut Style: Tube coupling
Smallest Inside Diameter: Between 0.180 inches and 0.183 inches
Special Features: Grumman a-10 aircraft
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Tube Outside Diameter: 0.125 inches
Width Across Flats: Between 0.371 inches and 0.378 inches
