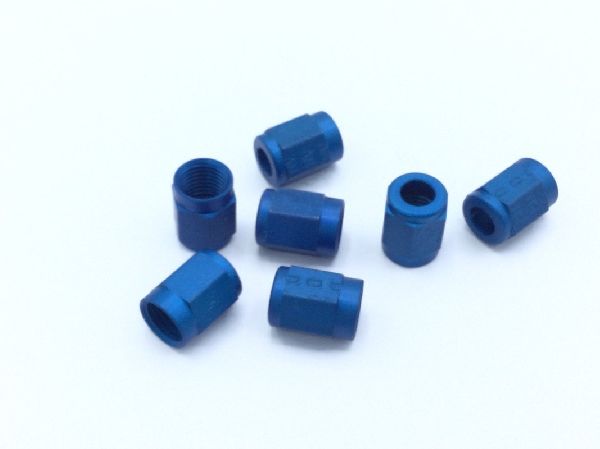

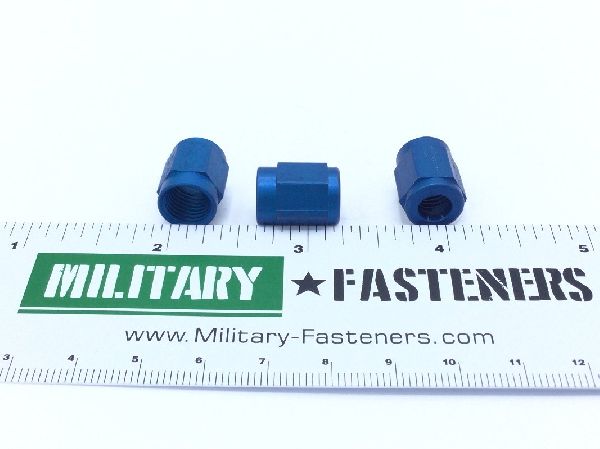

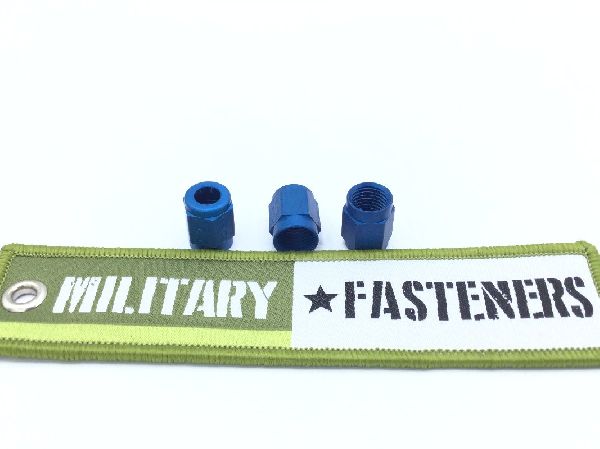

AN818-3D Tube Coupling Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $3.81

Units per Pack 10

Price per Pack $38.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $38.10

Add item to quote

Material

Aluminum alloy

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.375 inches

End Application: prowler ea-6b 45n aircraft grumman a10 aircraft
Fabrication Method: Any acceptable
Length To Shoulder: 0.506 inches
Nondefinitive Specification/std Data: An818-3d type
Nut Height: 0.594 inches
Nut Style: Tube coupling
Smallest Inside Diameter: Between 0.242 inches and 0.245 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Tube Outside Diameter: 0.188 inches
Width Across Flats: 0.438 inches
