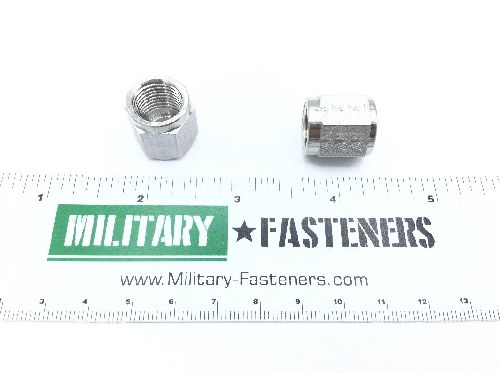

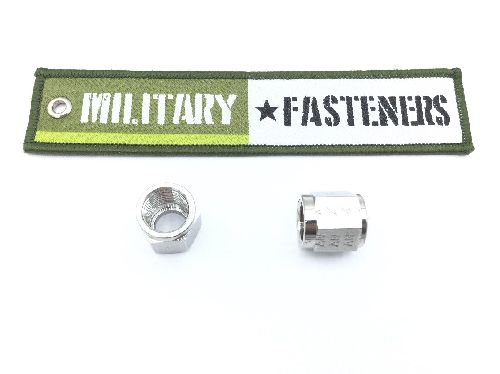

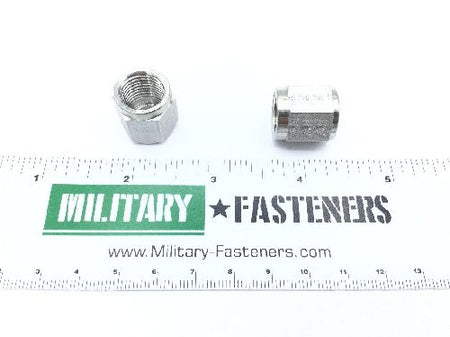

AN818-5K Tube Coupling Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 316

Thread Class

3b

Thread Quantity Per Inch (tpi)

20

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.500 inches

Fabrication Method: Any acceptable
Length To Shoulder: 0.579 inches
Material Specification: Qq-s-763 federal specification single material response
Nut Height: 0.671 inches
Nut Style: Tube coupling
Smallest Inside Diameter: 0.374 inches
Thread Direction: Right-hand
Tube Outside Diameter: 0.313 inches
Width Across Flats: 0.625 inches
