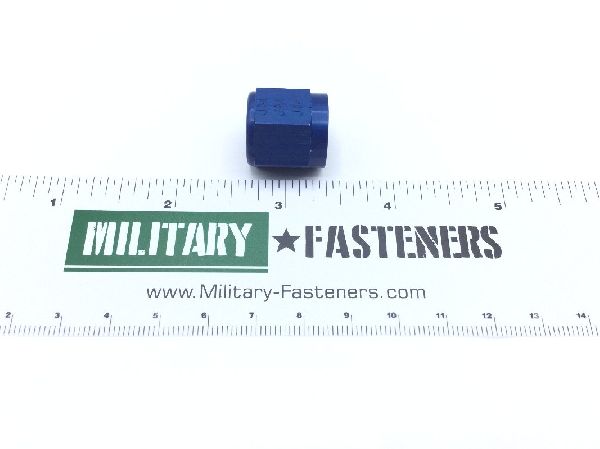

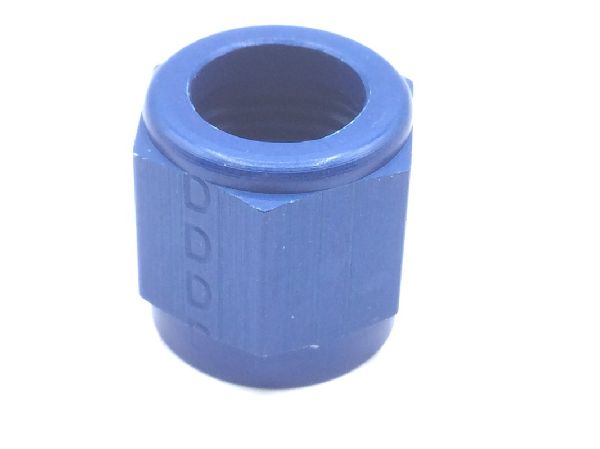

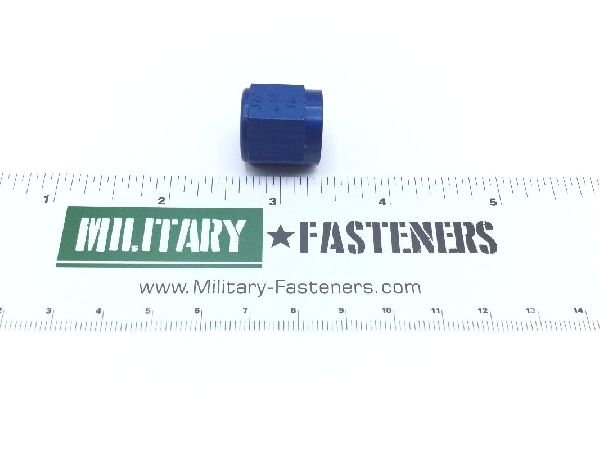

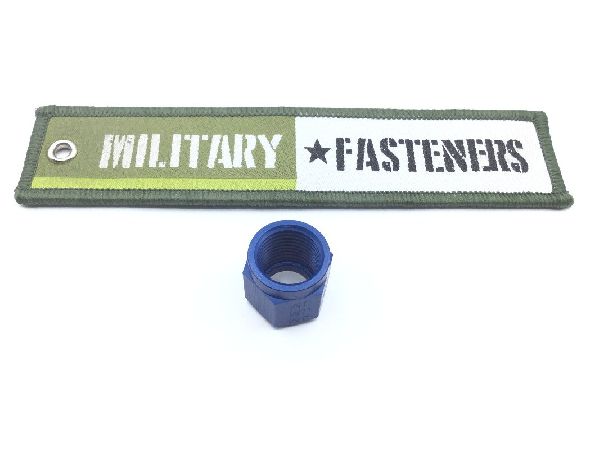

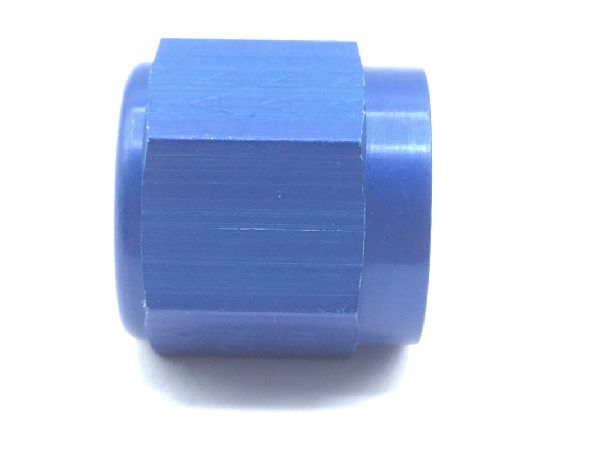

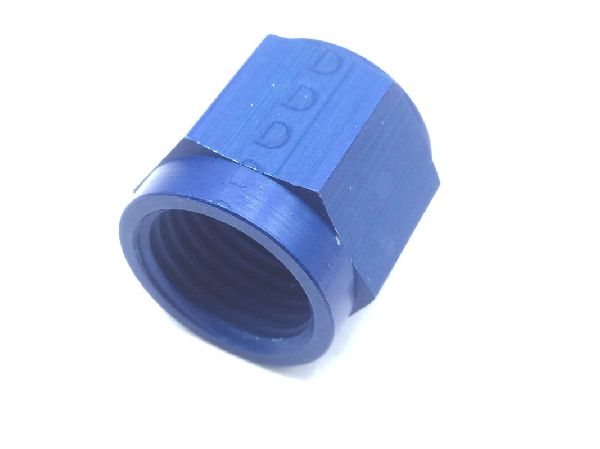

AN818-6D Tube Coupling Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2014

Surface Treatment

Cl 2 military specification single treatment response type 2 mil-a-8525

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.562 inches

End Application: Grumman a-10 acft
Fabrication Method: Machined
Length To Shoulder: Between 0.60 inches and 0.63 inches
Material Specification: T6 federal specification single material response qq-a-225/4
Nut Height: 0.719 inches
Nut Style: Tube coupling
Smallest Inside Diameter: Between 0.440 inches and 0.443 inches
Specification Data: 88044-an818 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Tube Outside Diameter: 0.375 inches
Width Across Flats: Between 0.684 inches and 0.691 inches
