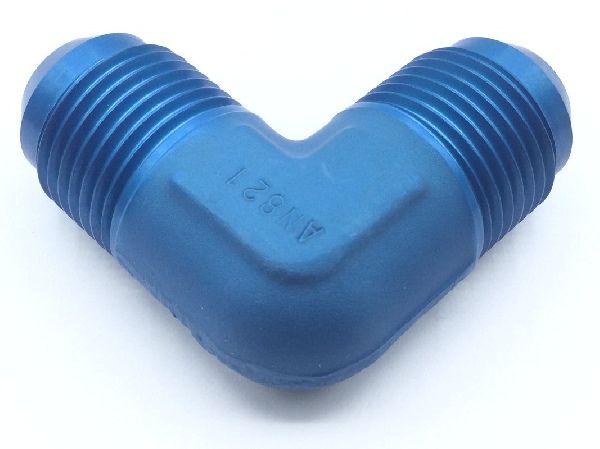

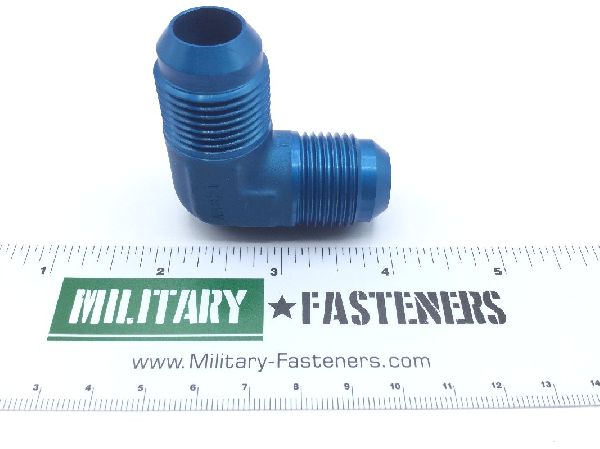

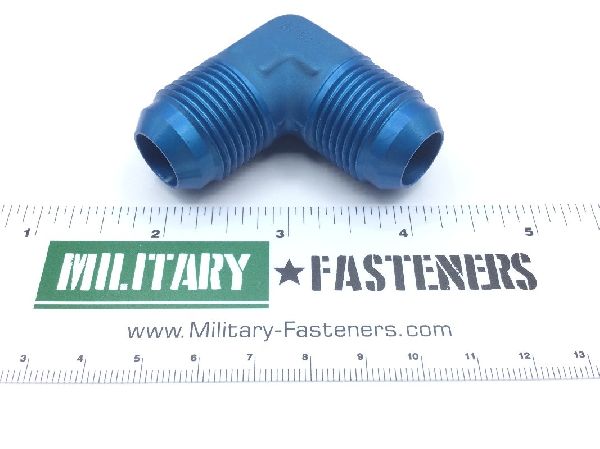

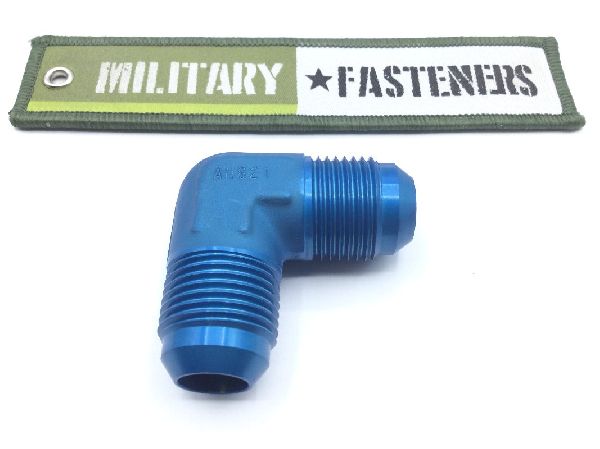

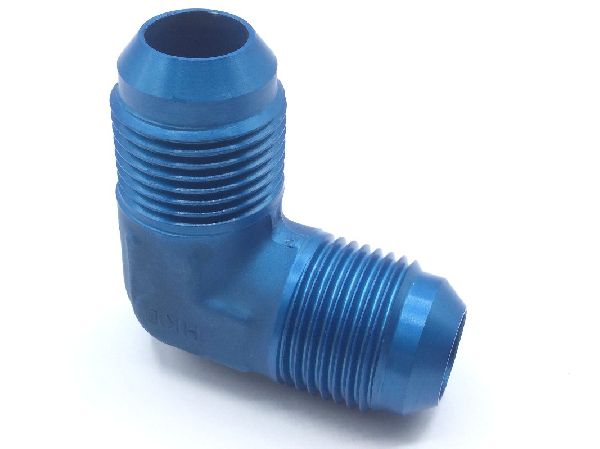

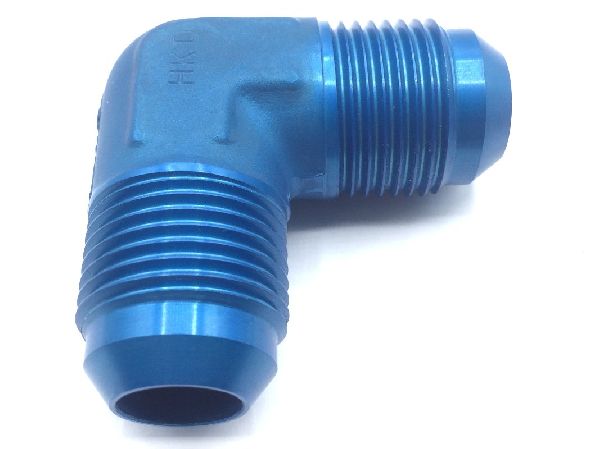

AN821-10D Tube Elbow
- Product Series
- AN
- ECCN
- EAR99
- Schedule
- 7326.90.8695
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Connection Style
- Flared (tube) all ends
- Connection Type
- Threaded external tube all ends
- Flow Angle
- 90.0 degrees
- Leg Length
- 1.453 inches all ends
- Outside Diameter Tube Accommodated
- 0.625 inches all ends
- Seat Angle
- 37.0 degrees all ends
- Specification Data
- 88044-an821 government standard
- Thread Qty Per Inch (tpi)
- 14 all ends
- Thread Series Designator
- Unjf (fine thread with external controlled root radius) all ends
