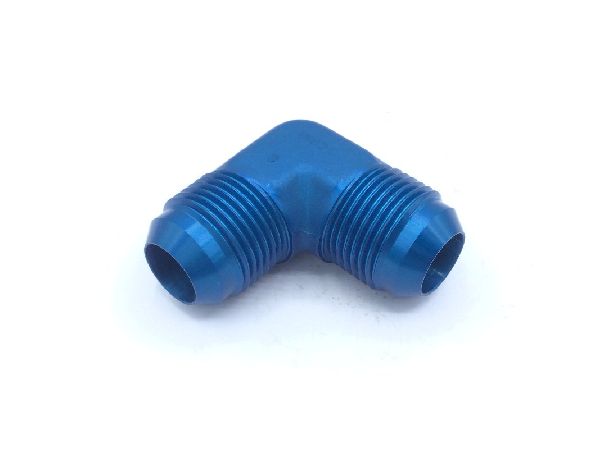

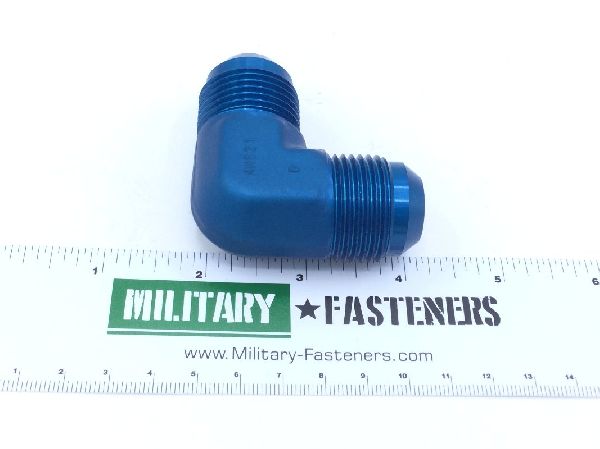

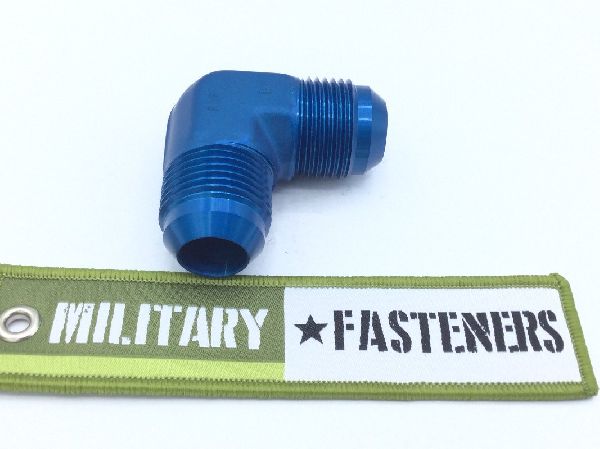

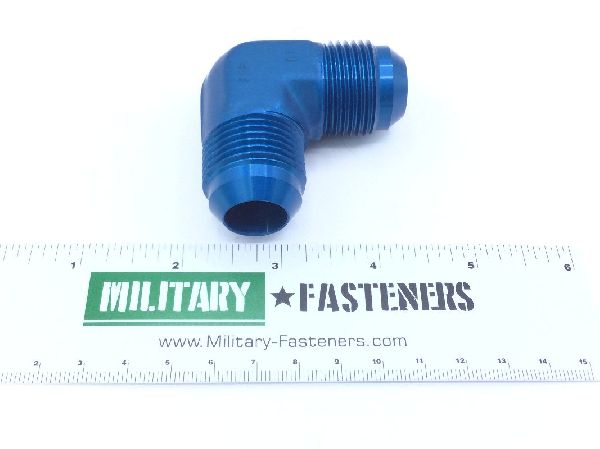

AN821-12D Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 6063

Surface Treatment

Mil-a-8625 military specification single treatment response outside

Thread Class

3a all ends

Thread Size

1.062 inches all ends

Connection Type: Threaded external tube all ends
Flow Angle: 90.0 degrees
Leg Length: 1.656 inches all ends
Material Specification: Qq-a-200/9 federal specification single material response
Outside Diameter Tube Accommodated: 0.750 inches all ends
Seat Angle: 37.0 degrees all ends
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
