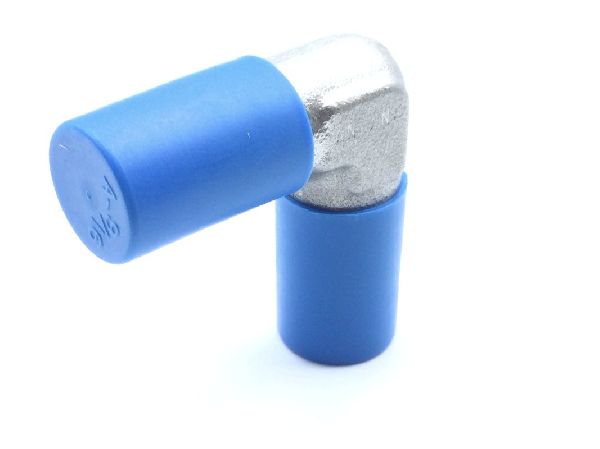

AN821-6J Tube Elbow

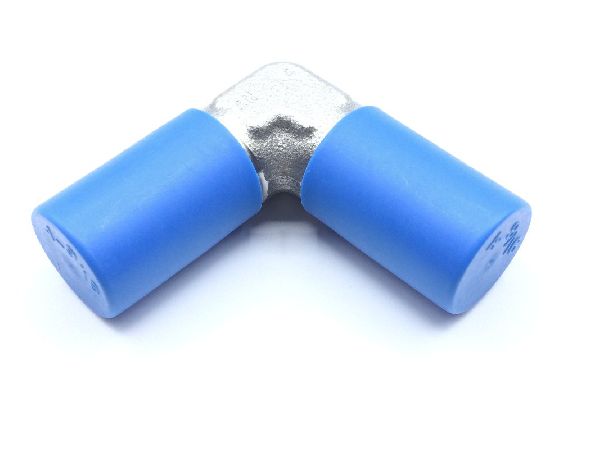

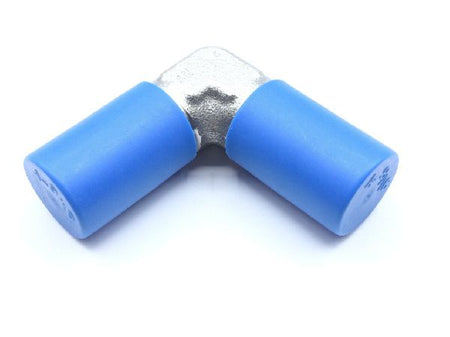

AN821-6J Tube Elbow (2)

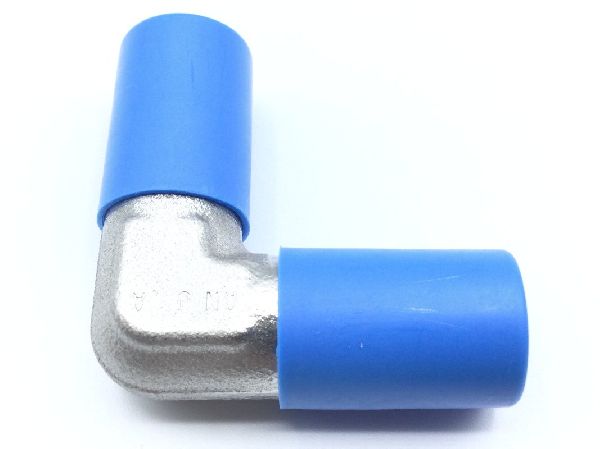

AN821-6J Tube Elbow (3)

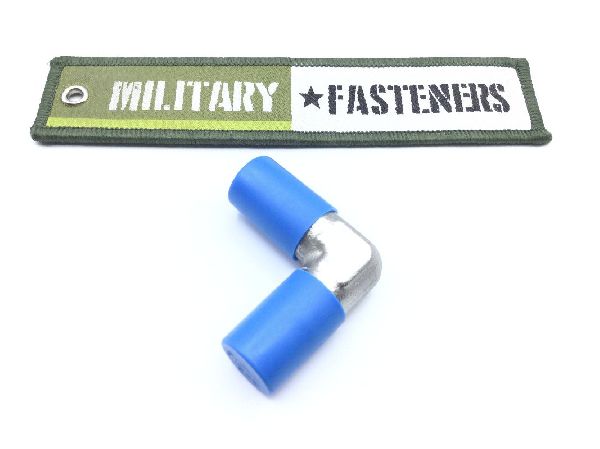

AN821-6J Tube Elbow (4)

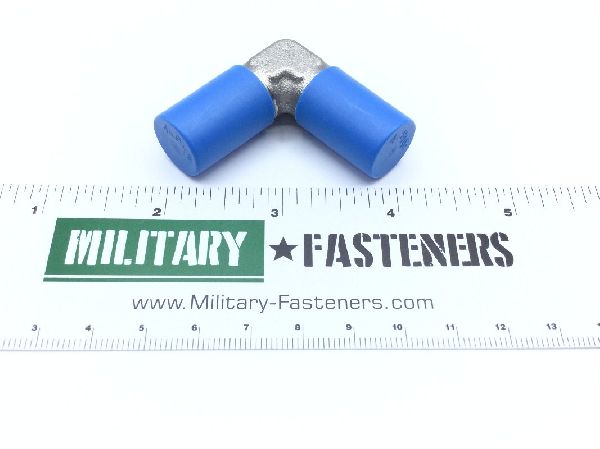

AN821-6J Tube Elbow (5)

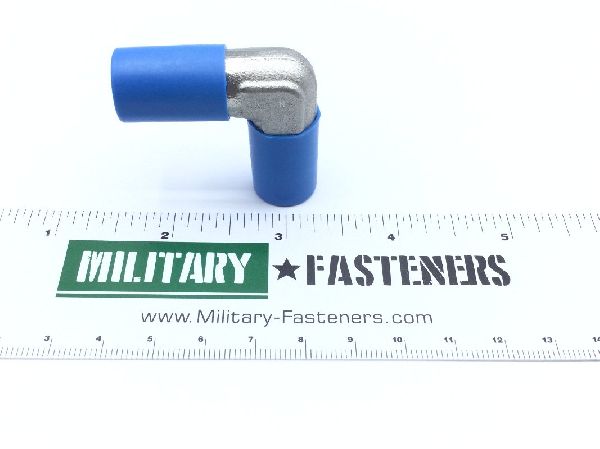

AN821-6J Tube Elbow (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN821-6J Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7307.22.5000

Price per Unit $66.45

Units per Pack 1

Price per Pack $66.45

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $66.45

Add item to quote

Material

Steel comp 304

Surface Treatment

Mil-s-5002 military specification single treatment response inside

Thread Class

3a all ends

Thread Size

0.562 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
Flow Angle: 90.0 degrees
Leg Length: 1.062 inches all ends
Material Specification: 66 federal standard single material response
Outside Diameter Tube Accommodated: 0.375 inches all ends
Seat Angle: 37.0 degrees all ends
Thread Series Designator: Unf (fine thread) all ends
