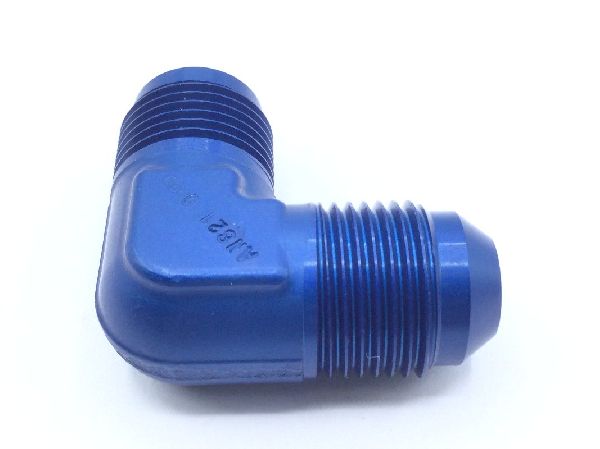

AN821-8D Tube Elbow

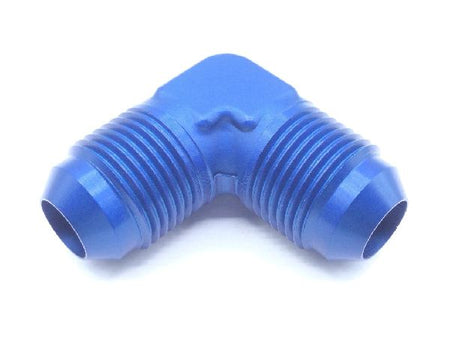

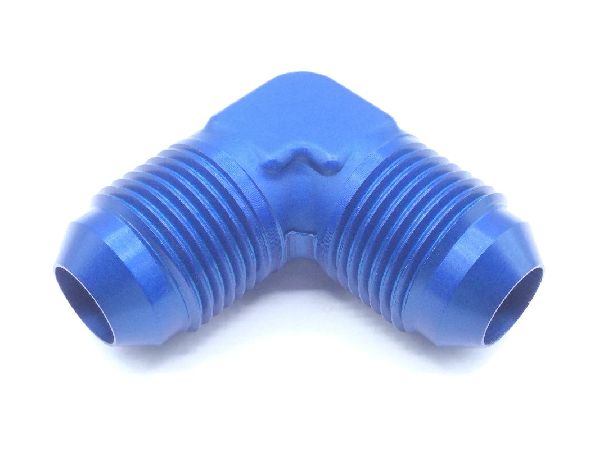

AN821-8D Tube Elbow (2)

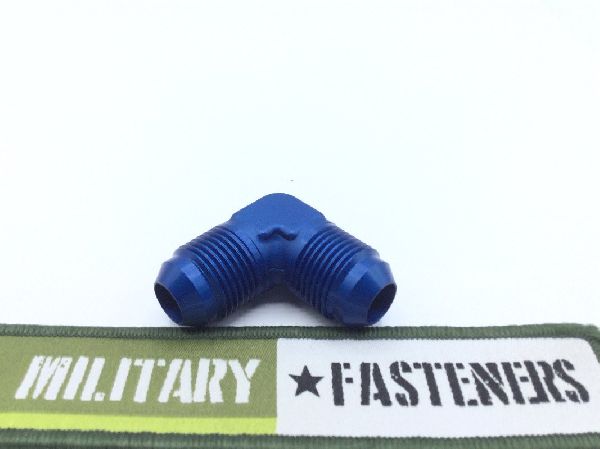

AN821-8D Tube Elbow (3)

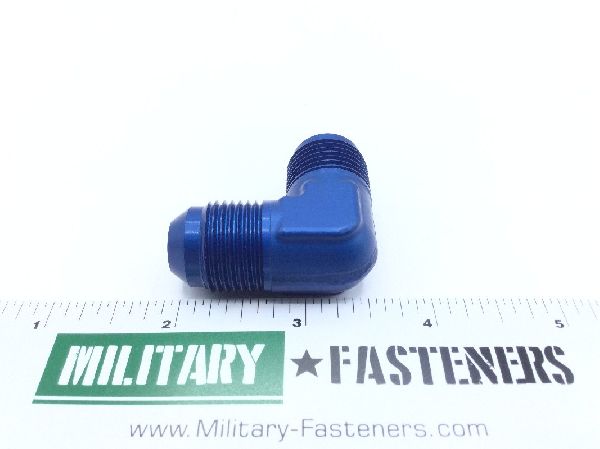

AN821-8D Tube Elbow (4)

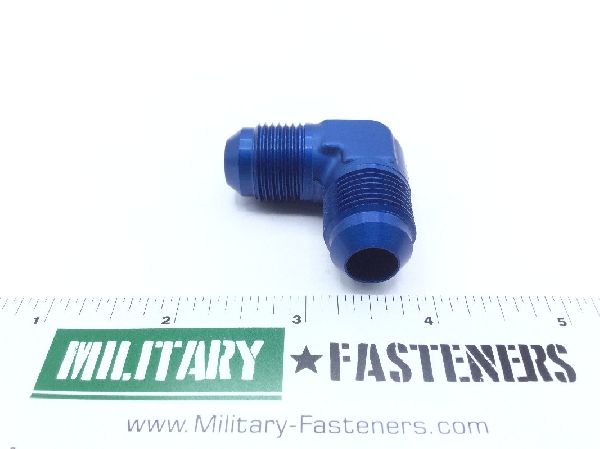

AN821-8D Tube Elbow (5)

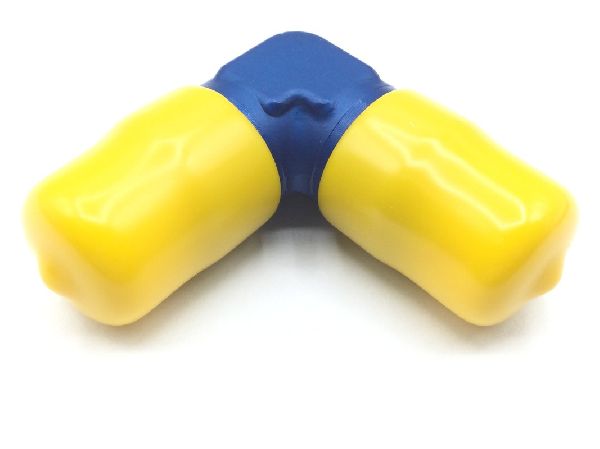

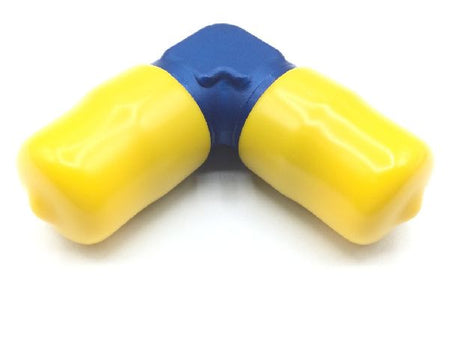

AN821-8D Tube Elbow (6)

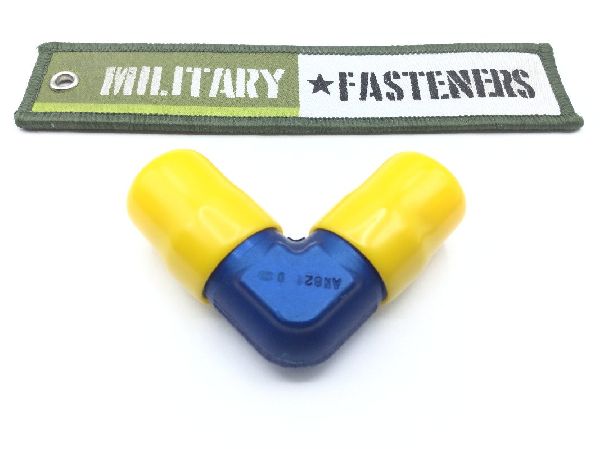

AN821-8D Tube Elbow (7)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN821-8D Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $44.28

Units per Pack 1

Price per Pack $44.28

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $44.28

Add item to quote

Material

Aluminum alloy

Thread Class

3a all ends

Thread Size

0.750 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
Flow Angle: 90.0 degrees
Leg Length: 1.250 inches all ends and 1.297 inches all ends
Outside Diameter Tube Accommodated: 0.500 inches all ends
Part Name Assigned By Controlling Agency: Flared tube standard and reducer 90 degrees elbow
Seat Angle: 37.0 degrees all ends
Special Features: Grumman aerospace corporation a10 aircraft
Thread Series Designator: Unf (fine thread) all ends
