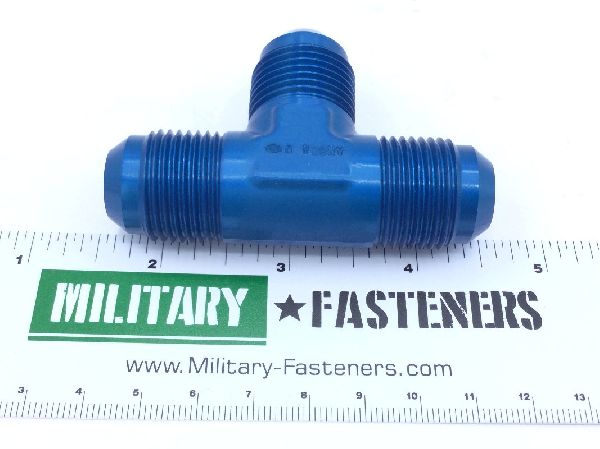

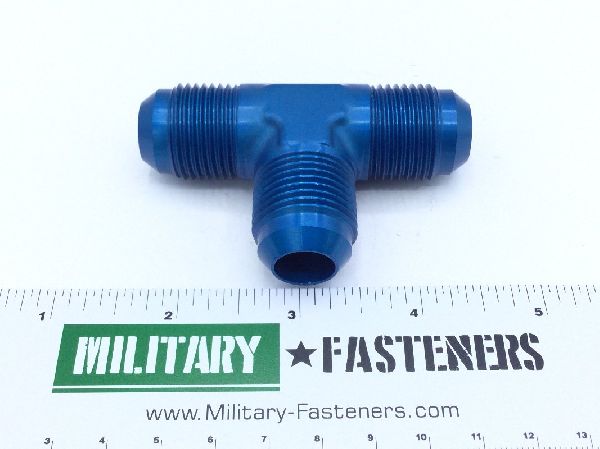

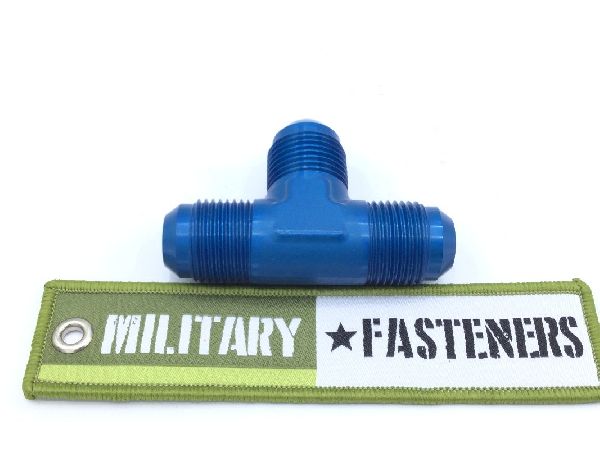

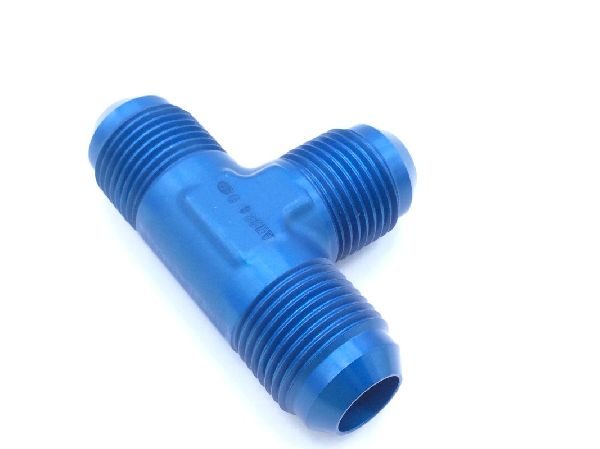

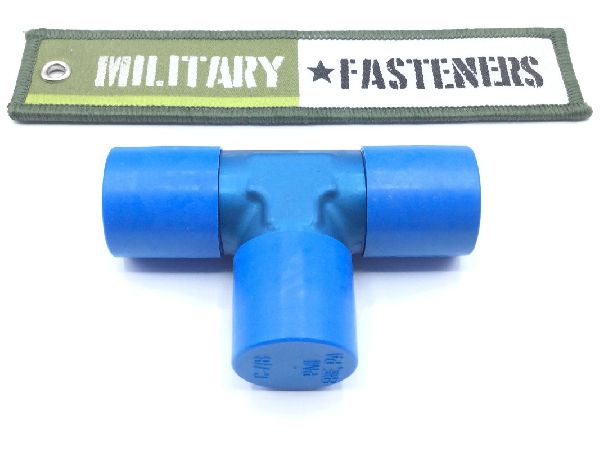

AN824-10D Tube Tee

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2014 or aluminum alloy 2024 or aluminum alloy 2024 or aluminum alloy 2014

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

3a all ends

Thread Size

0.875 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
Leg Length: 1.422 inches all ends
Material Specification: T6 federal specification 4th material response t851 federal specification 3rd material response or qq-a-367 t6 federal specification 2nd material response or qq-a-225/6 t6 federal specification all material responses or qq-a-225/6 qq-a-225/4
Outside Diameter Tube Accommodated: 0.625 inches all ends
Seat Angle: 37.0 degrees all ends
Specification Data: 88044-an824 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
