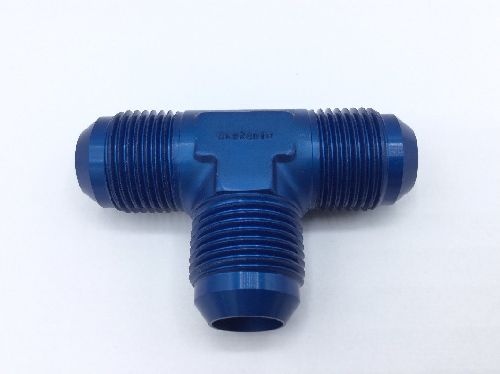

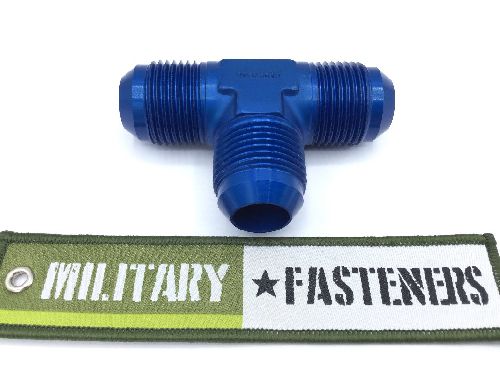

AN824-12D Tube Tee

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2014 or aluminum alloy 2024 or aluminum alloy 2024 or aluminum alloy 2014

Surface Treatment

Mil-a-8625 military specification single treatment response outside

Thread Class

3a all ends

Thread Size

1.062 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
Leg Length: 1.625 inches 1st end
Outside Diameter Tube Accommodated: 0.750 inches all ends
Seat Angle: 37.0 degrees all ends
Thread Qty Per Inch (tpi): 12 all ends
Thread Series Designator: Unj all ends
