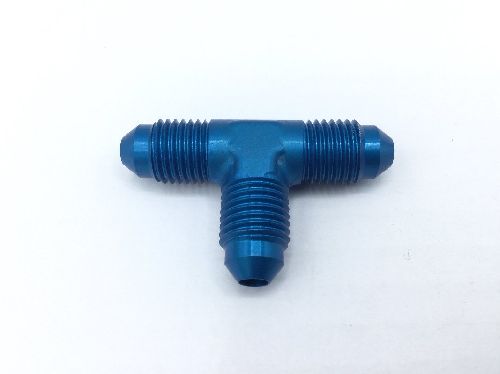

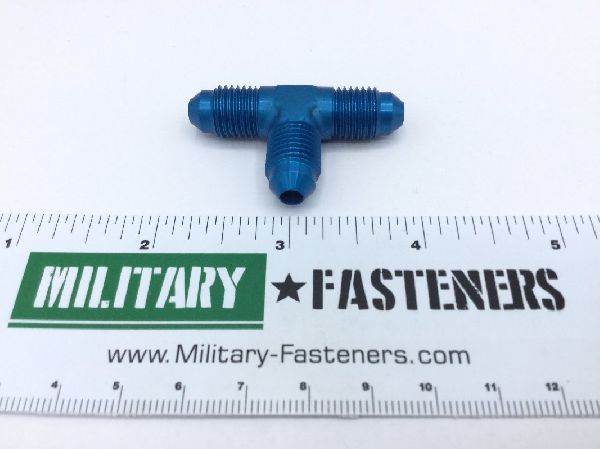

AN824-4D Tube Tee

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $31.12

Units per Pack 2

Price per Pack $62.24

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $62.24

Add item to quote

Material

Aluminum alloy

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
End Application: Grumman a10a acft
Leg Length: 0.859 inches all ends
Outside Diameter Tube Accommodated: 0.250 inches all ends
Seat Angle: 37.0 degrees all ends
Specification Data: 96906-ms24402d4 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
