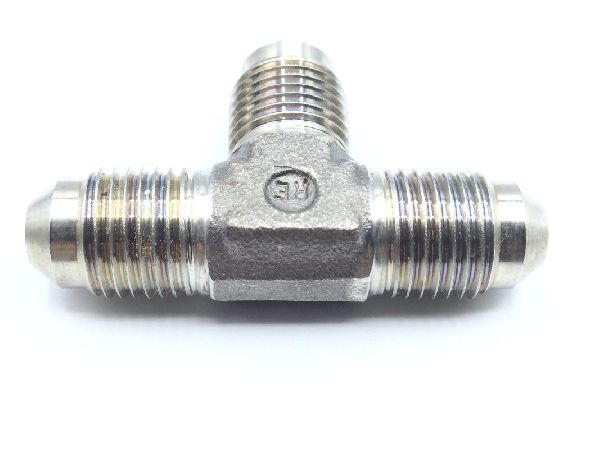

AN824-5J Tube Tee

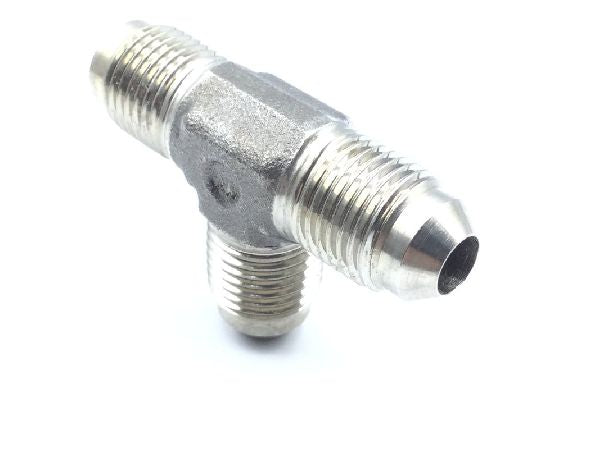

AN824-5J Tube Tee (2)

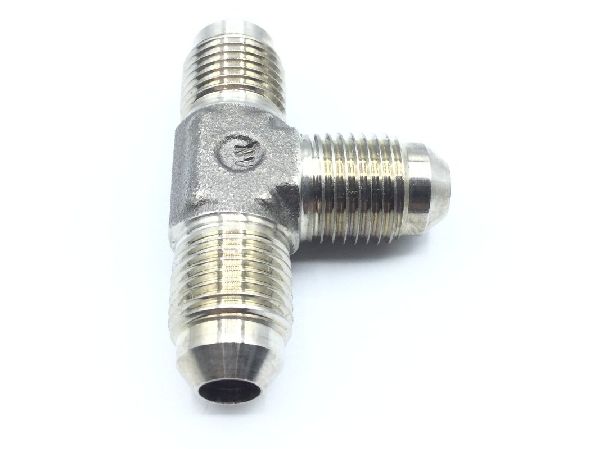

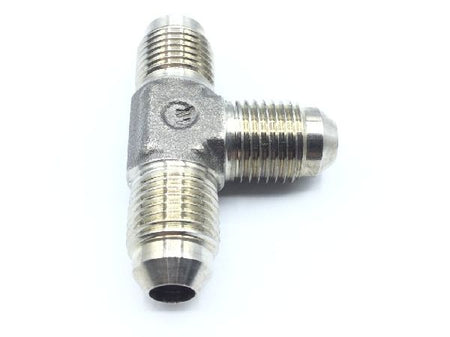

AN824-5J Tube Tee (3)

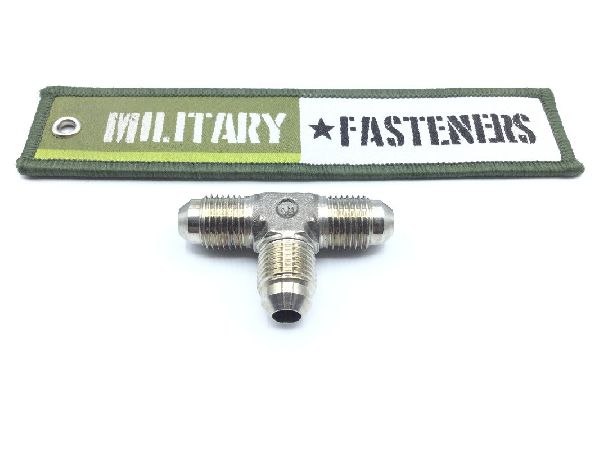

AN824-5J Tube Tee (4)

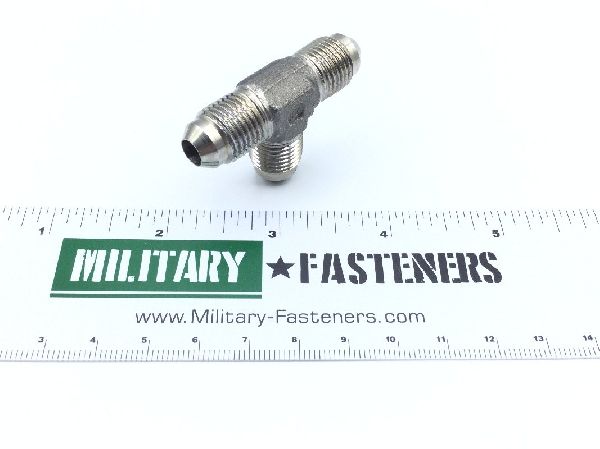

AN824-5J Tube Tee (5)

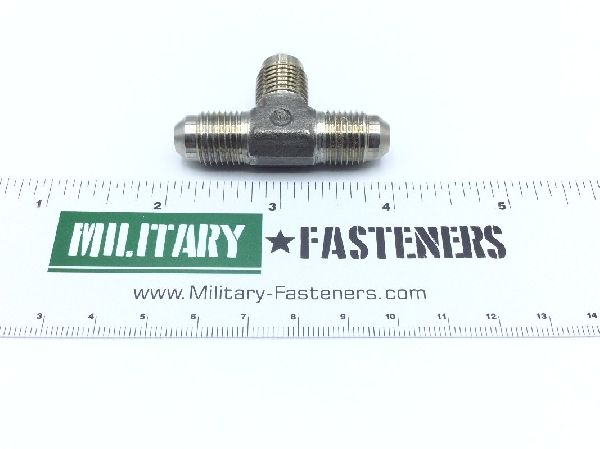

AN824-5J Tube Tee (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN824-5J Tube Tee

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $63.20

Units per Pack 1

Price per Pack $63.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $63.20

Add item to quote

Material

Steel comp 304

Thread Class

3a all ends

Thread Size

0.500 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
End Application: f-16 26f aircraft
Leg Length: 0.922 inches all ends
Material Specification: 66 federal standard single material response
Outside Diameter Tube Accommodated: 0.312 inches all ends
Seat Angle: 37.0 degrees all ends
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
