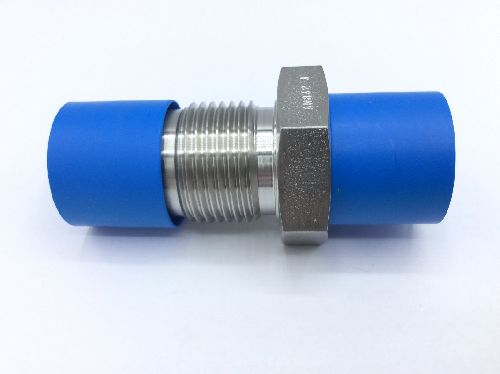

AN832-12J Tube Nipple

Product Series: AN
ECCN: EAR99
Schedule: 4016.99.6000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Thread Class

3a all ends

Thread Size

1.062 inches 1st end bulkhead

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
Material Specification: 66 federal standard single material response
Maximum Operating Temp: -65.0 degrees fahrenheit 2nd response
Nominallength: 3.031 inches
Outside Diameter Tube Accommodated: 0.750 inches all ends
Seat Angle: 37.0 degrees all ends
Specification Data: 96906-ms24393 government standard
Style Designator: Flared w/ bulkhead thread
Thread Qty Per Inch (tpi): 12 all ends
Thread Series Designator: Unj all ends
