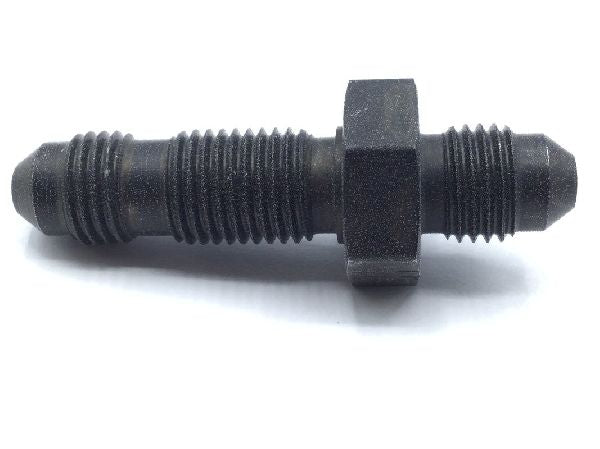

AN832-4 Tube Nipple

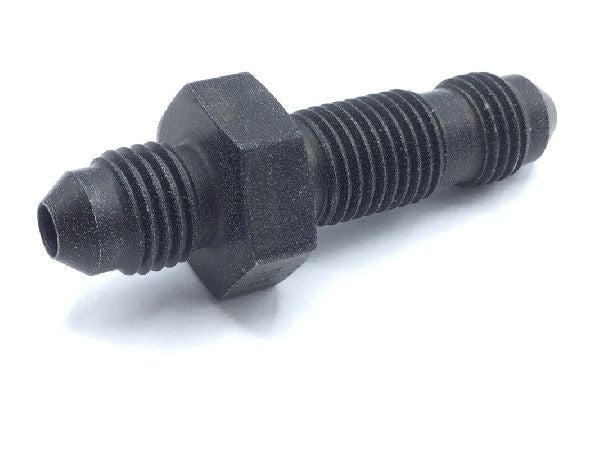

AN832-4 Tube Nipple (2)

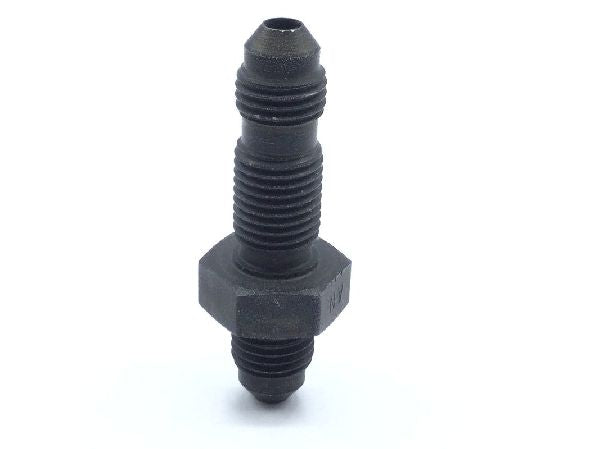

AN832-4 Tube Nipple (3)

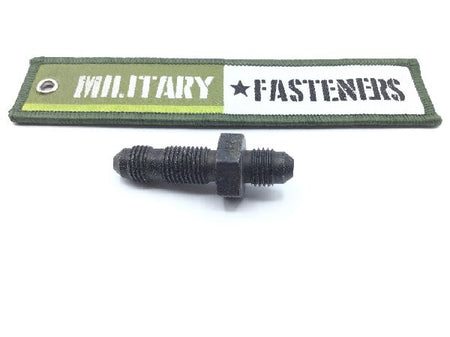

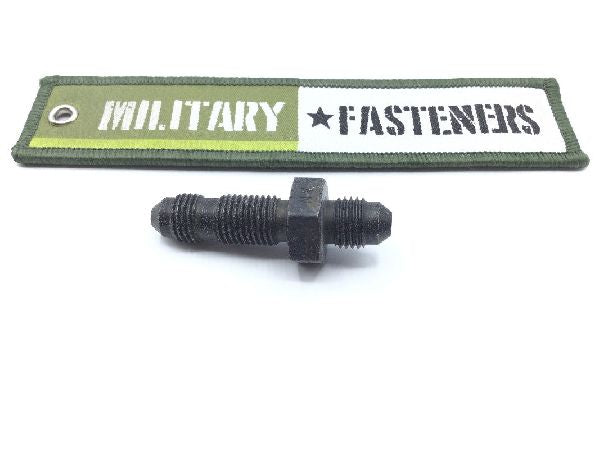

AN832-4 Tube Nipple (4)

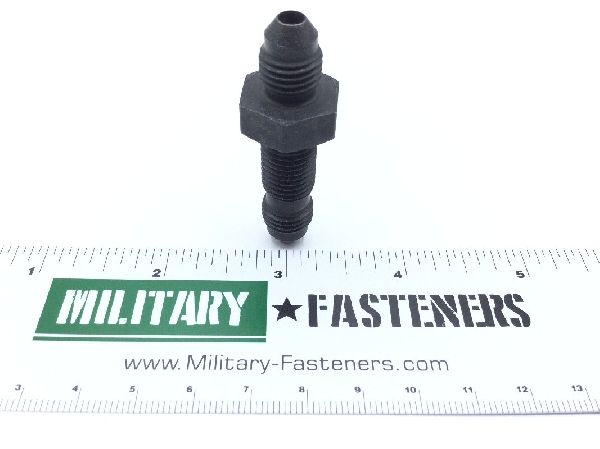

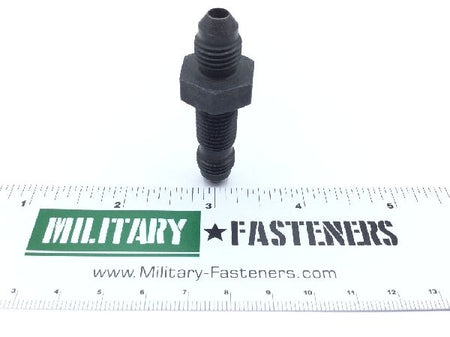

AN832-4 Tube Nipple (5)

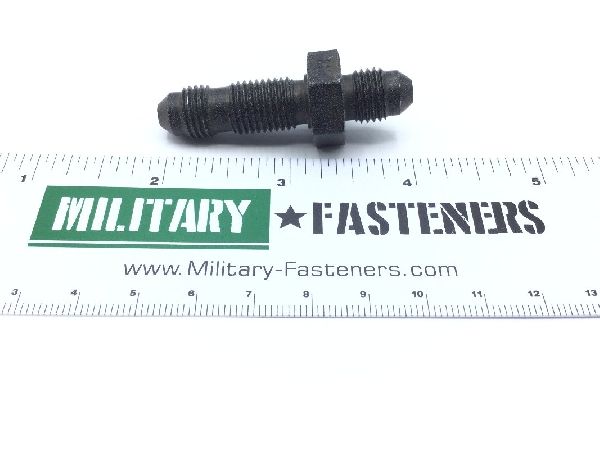

AN832-4 Tube Nipple (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN832-4 Tube Nipple

Product Series
AN
ECCN
EAR99
Schedule
7326.90.8695
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Copper alloy 360
Thread Class
3a all ends
Thread Size
0.438 inches all ends
Connection Style
Flared (tube) all ends
Connection Type
Threaded external tube all ends
Leg Length
1.203 inches 1st end
Material Specification
Comp 11 1/2 hard federal specification single material response qq-b-626
Nominallength
2.047 inches
Outside Diameter Tube Accommodated
0.250 inches all ends
Seat Angle
37.0 degrees all ends
Style Designator
Flared w/ bulkhead thread
Thread Series Designator
Unf (fine thread) all ends
