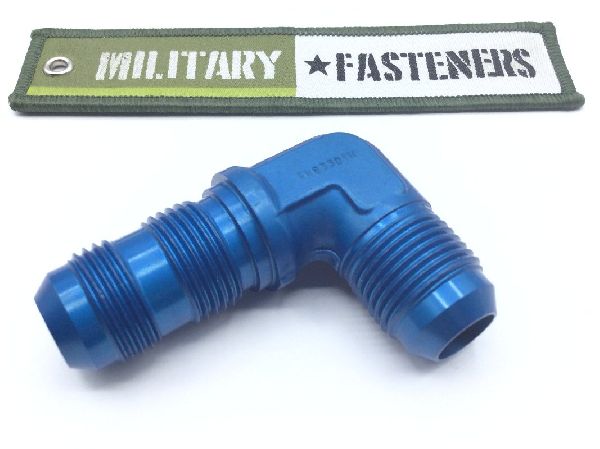

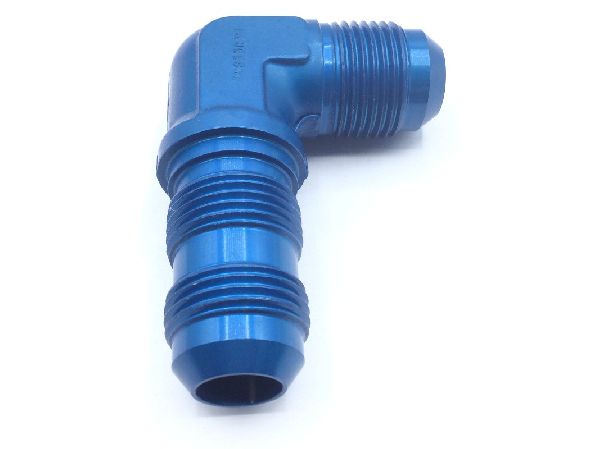

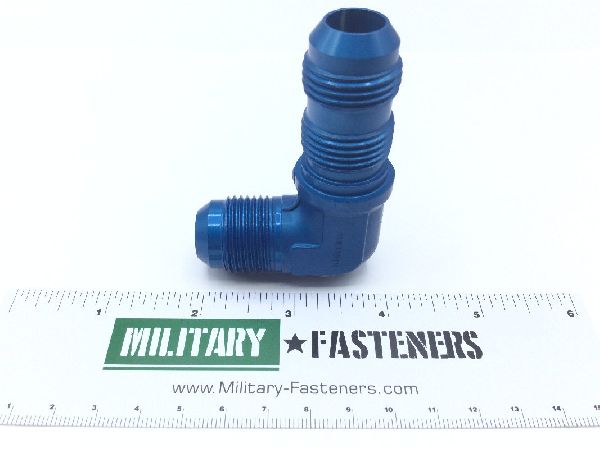

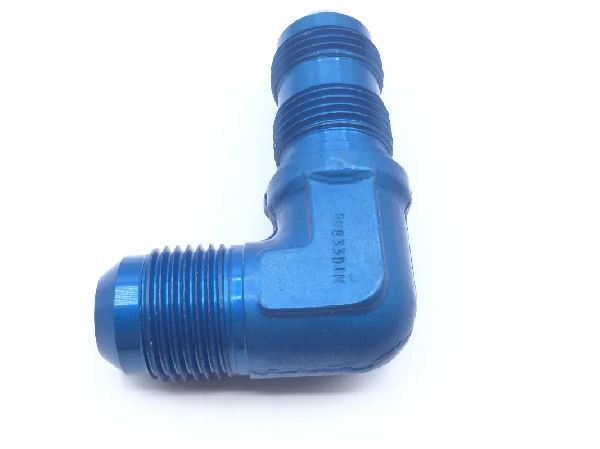

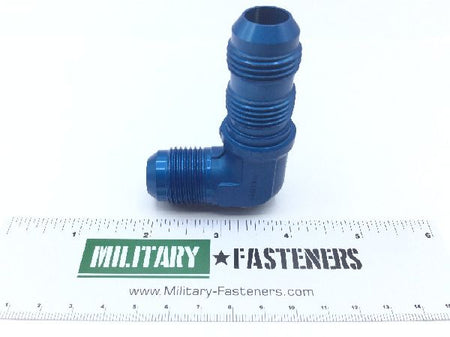

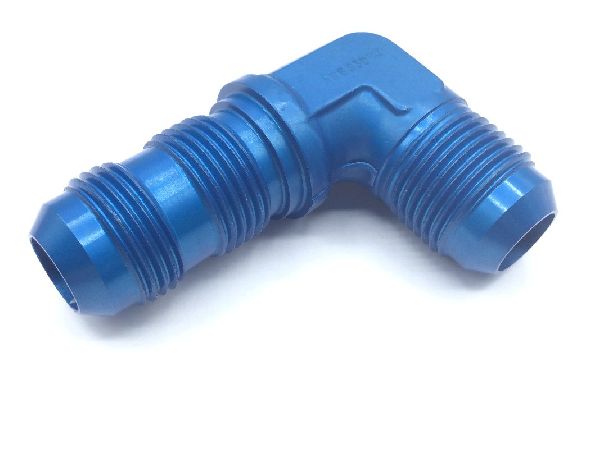

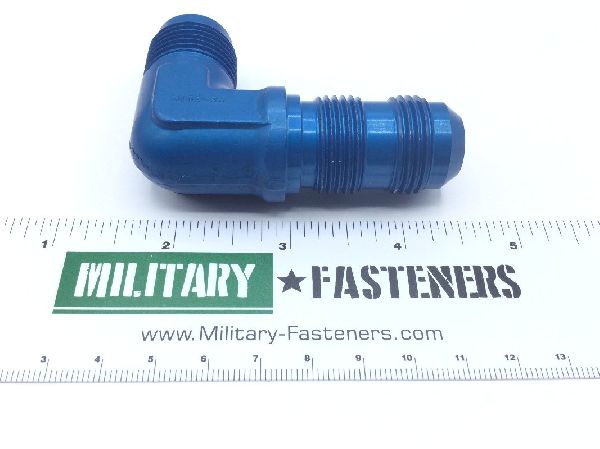

AN833-10D Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy

Thread Class

3a all ends

Thread Size

0.875 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
Flow Angle: 90.0 degrees
Leg Length: 2.375 inches 1st end
Material Specification: Alloy 2024 federal specification 2nd material response elbow alloy 2014 federal specification 1st material response elbow and qq-a-225/6 qq-a-225/4
Outside Diameter Tube Accommodated: 0.625 inches all ends
Seat Angle: 37.0 degrees all ends
Specification Data: 88044-an833 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end bulkhead
