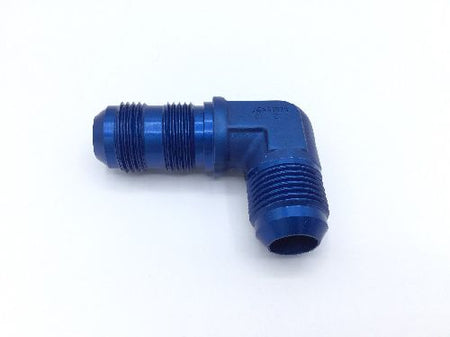

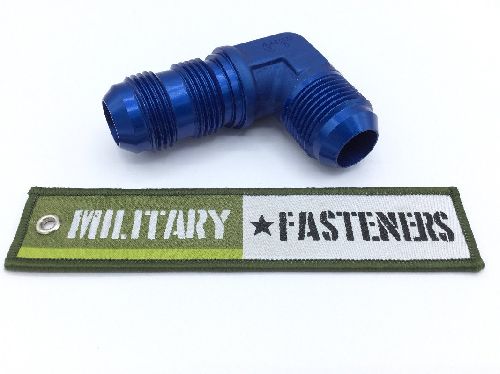

AN833-12D Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $80.31

Units per Pack 1

Price per Pack $80.31

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $80.31

Add item to quote

Material

Aluminum alloy

Thread Class

3a all ends

Thread Size

1.062 inches 1st end bulkhead

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
End Application: Boeing vertol cargo transport helicopter model ch-47 and f-18 aircraft
Flow Angle: 90.0 degrees
Leg Length: 2.656 inches 1st end and 2.659 inches 1st end
Outside Diameter Tube Accommodated: 0.750 inches all ends
Seat Angle: 37.0 degrees all ends
Specification Data: 88044-an833 government standard
Thread Qty Per Inch (tpi): 12 all ends
Thread Series Designator: Unj all ends
