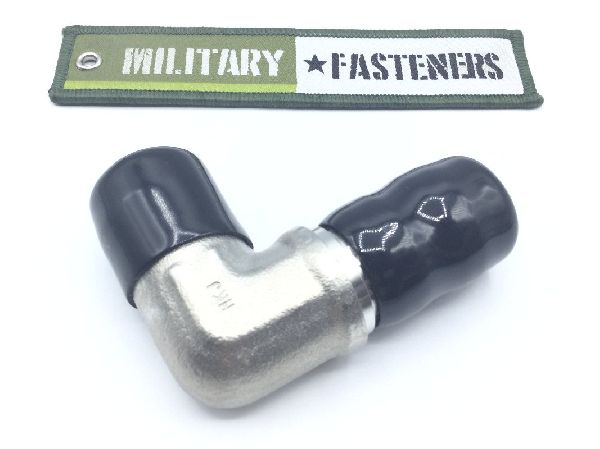

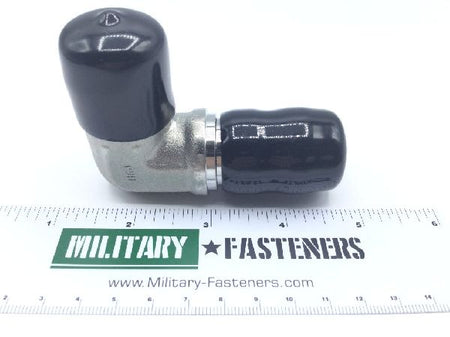

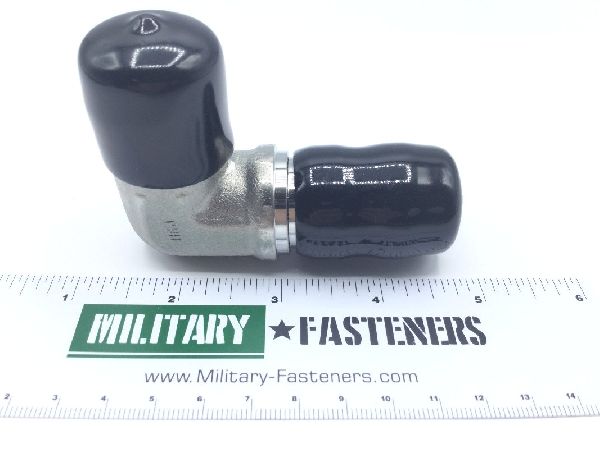

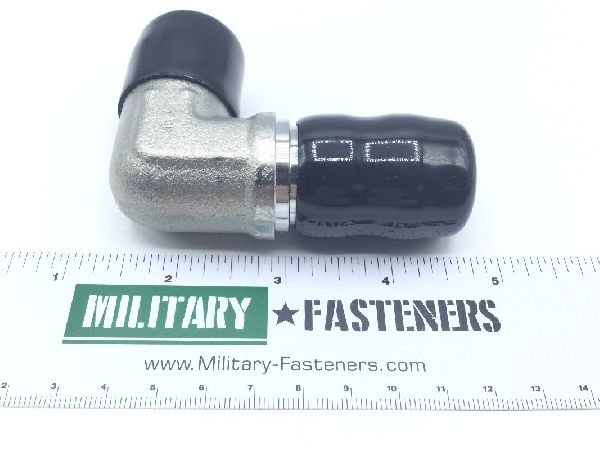

AN833-12J Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Ty2 military specification single treatment response outside e300 mil-f-14072

Thread Class

3a all ends

Thread Size

1.062 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
Flow Angle: 90.0 degrees
Leg Length: 1.756 inches 2nd end
Material Specification: 66 federal standard single material response
Outside Diameter Tube Accommodated: 0.750 inches all ends
Seat Angle: 37.0 degrees all ends
Specification Data: 88044-an833 government standard
Thread Qty Per Inch (tpi): 12 all ends
Thread Series Designator: Unj all ends
